9
Lineage Power
Advance Data Sheet
April 2008
36 Vdc to 75 Vdc Inputs, 6 W
LW006-Series Power Modules:
Thermal Considerations (continued)
Note that the view in Figure 7 is of the surface of the
module—the pin locations shown are for reference.
The temperature at this location should not exceed a
maximum case temperature of 110 °C. The output
power of the module should not exceed the rated
power for the module as listed in the Ordering Informa-
tion table.
The LW006-Series Power Modules operates at
IO = IO, max in an 85 °C ambient temperature with
0.25 ms–1 (50 ft./min.) airflow. This airflow is present in
a typical circuit pack environment in a naturally cooled
equipment rack, with other components causing airflow
through the chimney effect. In very low airflow environ-
ments, such as small enclosures, the module should
be derated approximately 10 °C at full load. Note that
these are approximations and that actual case temper-
ature measurements in the equipment rack should be
taken to verify the case temperature does not exceed
110 °C.
8-2536(C)

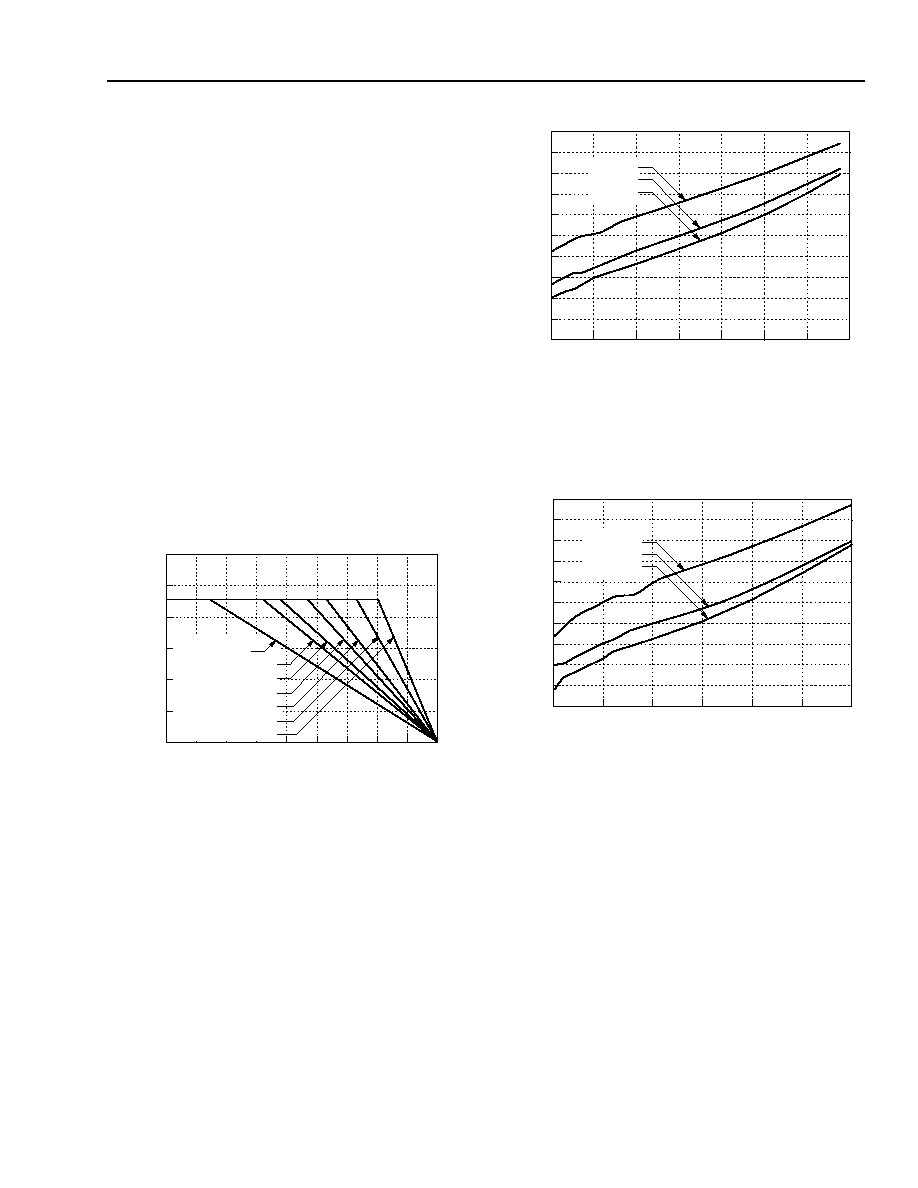

Figure 8. LW006F–LP, A–LP Forced Convection
Power Derating; Either Orientation
8-2643(C)
Figure 9. LW006F–LP Typical Power Dissipation
vs. Output Current at TA = 25 °C
8-2644(C)
Figure 10. LW006A–LP Typical Power Dissipation
vs. Output Current at TA = 25 °C
PO
WER
DISSIP
A
TION,
P
D
(W)
70
75
80
85
90
95
0.0
1.5
MAX. AMBIENT TEMPERATURE (
°C)
1.0
2.0
110
65
0.5
100
105
2.5
3.0
NATURAL
CONNECTION
0.25 ms-1 (50 FT/IN)
0.5 ms-1 (100 FT/IN)
1.0 ms-1 (200 FT/IN)
1.5 ms-1 (300 FT/IN)
2.0 ms-1 (400 FT/IN)
3.0 ms-1 (600 FT/IN)
MAX. CASE TEMPERATURE (
°C)
0.55
0.75
0.95
1.35
1.15
1.55
0.0
1.2
OUTPUT CURRENT, IO (A)
0.8
0.6
1.0
1.6
0.15
0.35
1.4
0.4
0.2
1.8
2.0
VI = 72 V
VI = 48 V
VI = 36 V
PO
WER
DISSIP
A
TION,
P
D(W)
0.2
0.4
0.6
1.0
0.8
1.2
0.0
1.2
OUTPUT CURRENT, IO (A)
0.8
0.6
1.0
1.6
0.0
1.4
0.4
0.2
1.8
2.0
VI = 75.0 V
VI = 48.0 V
VI = 34.5 V
PO
WER
DISSIP
A
TION,
P
D(W)
