| 型號： | LTC4011EFE#PBF |
| 廠商： | LINEAR TECHNOLOGY CORP |
| 元件分類： | 穩壓器 |
| 英文描述： | BATTERY CHARGE CONTROLLER, 615 kHz SWITCHING FREQ-MAX, PDSO20 |
| 封裝： | 4.40 MM, PLASTIC, TSSOP-20 |
| 文件頁數： | 1/24頁 |
| 文件大小： | 228K |
| 代理商： | LTC4011EFE#PBF |
當前第1頁第2頁第3頁第4頁第5頁第6頁第7頁第8頁第9頁第10頁第11頁第12頁第13頁第14頁第15頁第16頁第17頁第18頁第19頁第20頁第21頁第22頁第23頁第24頁
1
LTC4011
4011p
, LTC and LT are registered trademarks of Linear Technology Corporation.
All other trademarks are the property of their respective owners.
High Efficiency Standalone
Nickel Battery Charger
■
Complete NiMH/NiCd Charger for 1 to 16 Cells
■
No Microcontroller or Firmware Required
■
550kHz Synchronous PWM Current Source Controller
■
No Audible Noise with Ceramic Capacitors
■
PowerPath
TM Control Support
■
Programmable Charge Current: 5% Accuracy
■
Wide Input Voltage Range: 4.5V to 34V
■
Automatic Trickle Precharge
■
–V Fast Charge Termination
■
Optional T/t Fast Charge Termination
■
Automatic NiMH Top-Off Charge
■
Programmable Timer
■
Automatic Recharge
■
Multiple Status Outputs
■
Micropower Shutdown
■
20-Lead Thermally Enhanced TSSOP Package
■
Integrated or Standalone Battery Charger
■
Portable Instruments or Consumer Products
■
Battery-Powered Diagnostics and Control
■
Back-Up Battery Management
PowerPath is a trademark of Linear Technology Corporation.
The LTC
4011 provides a complete, cost-effective nickel
battery fast charge solution in a small package using few
external components. A 550kHz PWM current source
controller and all necessary charge initiation, monitoring
and termination control circuitry are included.
The LTC4011 automatically senses the presence of a DC
adapter and battery insertion or removal. Heavily dis-
charged batteries are precharged with a trickle current.
The LTC4011 can simultaneously use both –V and T/t
fast charge termination techniques and can detect various
battery faults. If necessary, a top-off charge is automati-
cally applied to NiMH batteries after fast charging is
completed. The IC will also resume charging if the battery
self-discharges after a full charge cycle.
All LTC4011 charging operations are qualified by actual
charge time and maximum average cell voltage. Charging
may also be gated by minimum and maximum tempera-
ture limits. NiMH or NiCd fast charge termination param-
eters are pin-selectable.
Integrated PowerPath control support ensures that the
system remains powered at all times without allowing load
transients to adversely affect charge termination.
FEATURES
DESCRIPTIO
U
APPLICATIO S
U

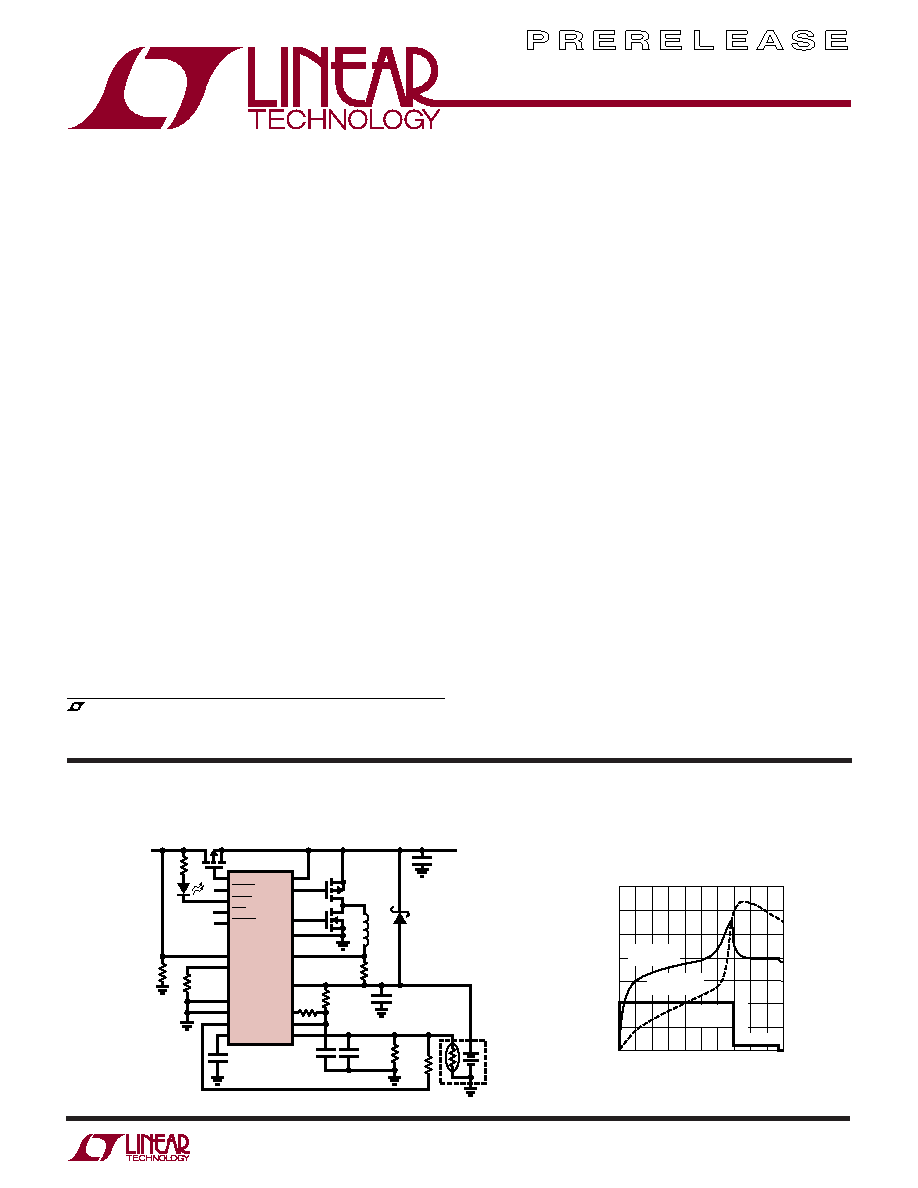

TYPICAL APPLICATIO
U
INFET
FAULT
CHRG
TOC
READY
VCC
TGATE
VCDIV
VCELL
VTEMP
LTC4011
DCIN
TIMER
GND
CHEM
VRT
INTVDD
SENSE
BAT
FROM
ADAPTER
4.5V TO 34V
10H
10F
TO
SYSTEM
LOAD
0.05
2-CELL
NiMH PACK
WITH 10k NTC
(2AHr)
4011 TA01a
3k
20k
49.9k
10k
10.7k
0.1F
0.033F
0.068F
10F
30.9k
BGATE
PGND
2A NiMH Battery Charger
TIME (MINUTES)
0
1.25
CELL
VOLTAGE
(V)
BATTERY
TEMPERATURE
(
°C)
1.30
1.40
1.45
1.50
1.60
4011 TA01b
1.35
1.55
28
30
34
36
38
42
32
40
100
20
60
80
SINGLE CELL
VOLTAGE
CHARGE
CURRRENT
BATTERY
TEMPERATURE
2A
1A
TOP OFF
Typical NiMH Charge Cycle at 1C
Electrical Specifications Subject to Change
