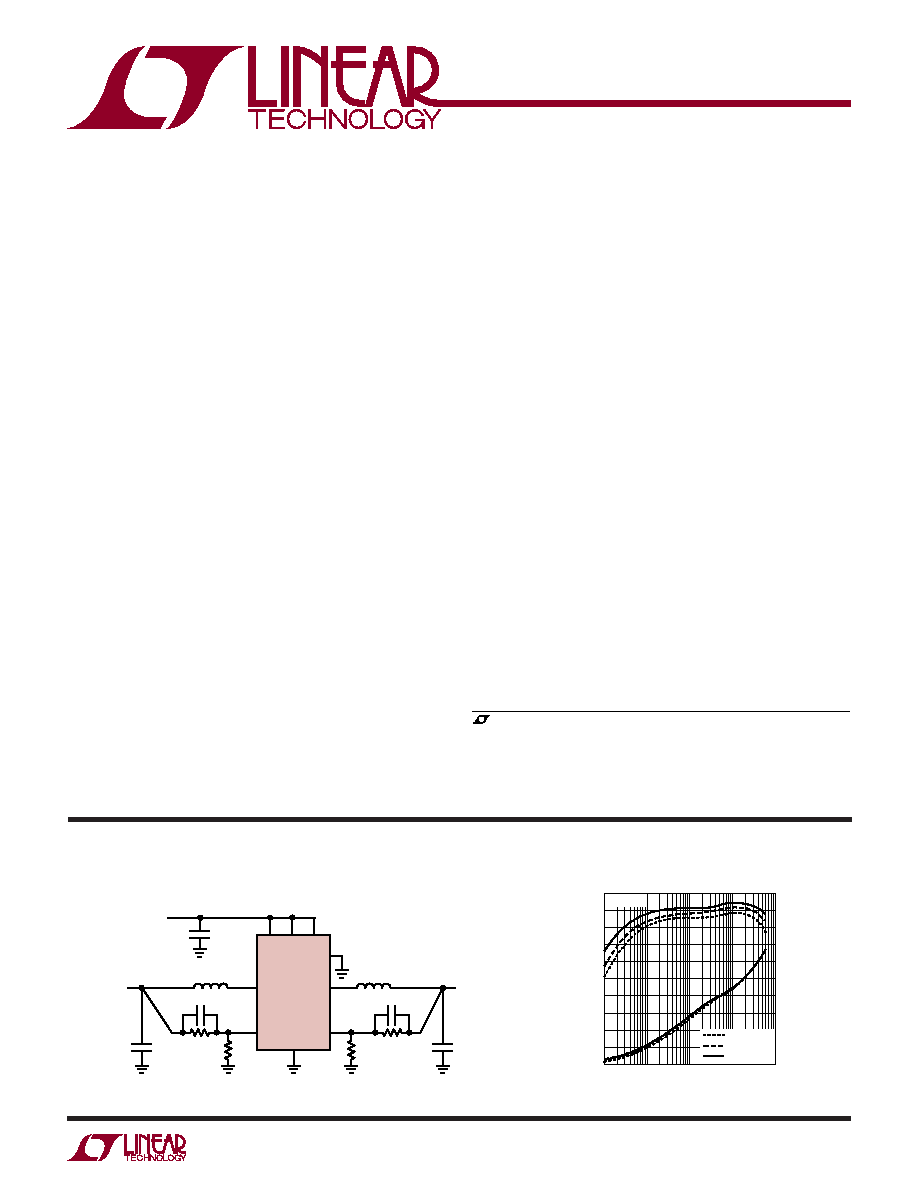

LTC3419
1
3419f
OUTPUT CURRENT (mA)
EFFICIENCY
(%)
100
90
80
70
60
50
40
30
20
10
0
POWER
LOSS
(W)
10
1
0.1
0.01
0.001
0.0001
0.1
10
100
1000
3419 TA01b
1
VOUT = 1.2V
VOUT = 1.8V
VOUT = 2.5V
VIN = 3.6V
■
Cellular Telephones
■
Digital Still Cameras
■
Wireless and DSL Modems
■
Portable Media Players
■
PDAs/Palmtop PCs
TYPICAL APPLICATION
FEATURES
APPLICATIONS
DESCRIPTION
Dual Monolithic 600mA
Synchronous Step-Down
Regulator
The LTC3419 is a dual, 2.25MHz, constant-frequency,
synchronous step-down DC/DC converter in a tiny
3mm × 3mm DFN package. 100% duty cycle provides
low dropout operation, extending battery life in portable
systems. Low output voltages are supported with the 0.6V
feedback reference voltage. Each regulator can supply
600mA output current.
The input voltage range is 2.5V to 5.5V, making it ideal
for Li-Ion and USB powered applications. Supply cur-
rent during operation is only 35μA and drops to <1μA in
shutdown. A user-selectable mode input allows the user
to trade off between high efciency Burst Mode operation
and pulse-skipping mode.
An internally set 2.25MHz switching frequency allows the
use of tiny surface mount inductors and capacitors. Inter-
nal soft-start reduces inrush current during start-up. Both
outputs are internally compensated to work with ceramic
output capacitors. The LTC3419 is available in a low prole
(0.75mm) 3mm × 3mm DFN package. The LTC3419 is also
available in a xed output voltage conguration selected
via internal resistor dividers (see Table 2).
Dual Monolithic Buck Regulator in 8-Lead 3 × 3 DFN
■
High Efciency Dual Step-Down Outputs: Up to 96%
■
600mA Current per Channel at VIN = 3V
■
Only 35μA Quiescent Current During Operation
(Both Channels)
■
2.25MHz Constant-Frequency Operation
■
2.5V to 5.5V Input Voltage Range
■
Low Dropout Operation: 100% Duty Cycle
■
No Schottky Diodes Required
■
Internally Compensated for All Ceramic Capacitors
■
Independent Internal Soft-Start for Each Channel
■
Available in Fixed Output Versions
■
Current Mode Operation for Excellent Line and Load
Transient Response
■
0.6V Reference Allows Low Output Voltages
■
User-Selectable Burst Mode Operation
■
Short-Circuit Protected
■
Ultralow Shutdown Current: IQ < 1μA
■
Available in Small MSOP or 3mm × 3mm
DFN-8 Packages
, LT, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.
Burst Mode is a registered trademark of Linear Technology Corporation. All other
trademarks are the property of their respective owners. Protected by U.S. Patents,
including 5481178, 6127815, 6304066, 6498466, 6580258, 6611131.
