| 型號： | LPC-16TIMB2 |
| 廠商： | HONDA TSUSHIN KOGYO CO LTD |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | 16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| 文件頁數： | 1/1頁 |
| 文件大?。?/td> | 56K |
| 代理商： | LPC-16TIMB2 |

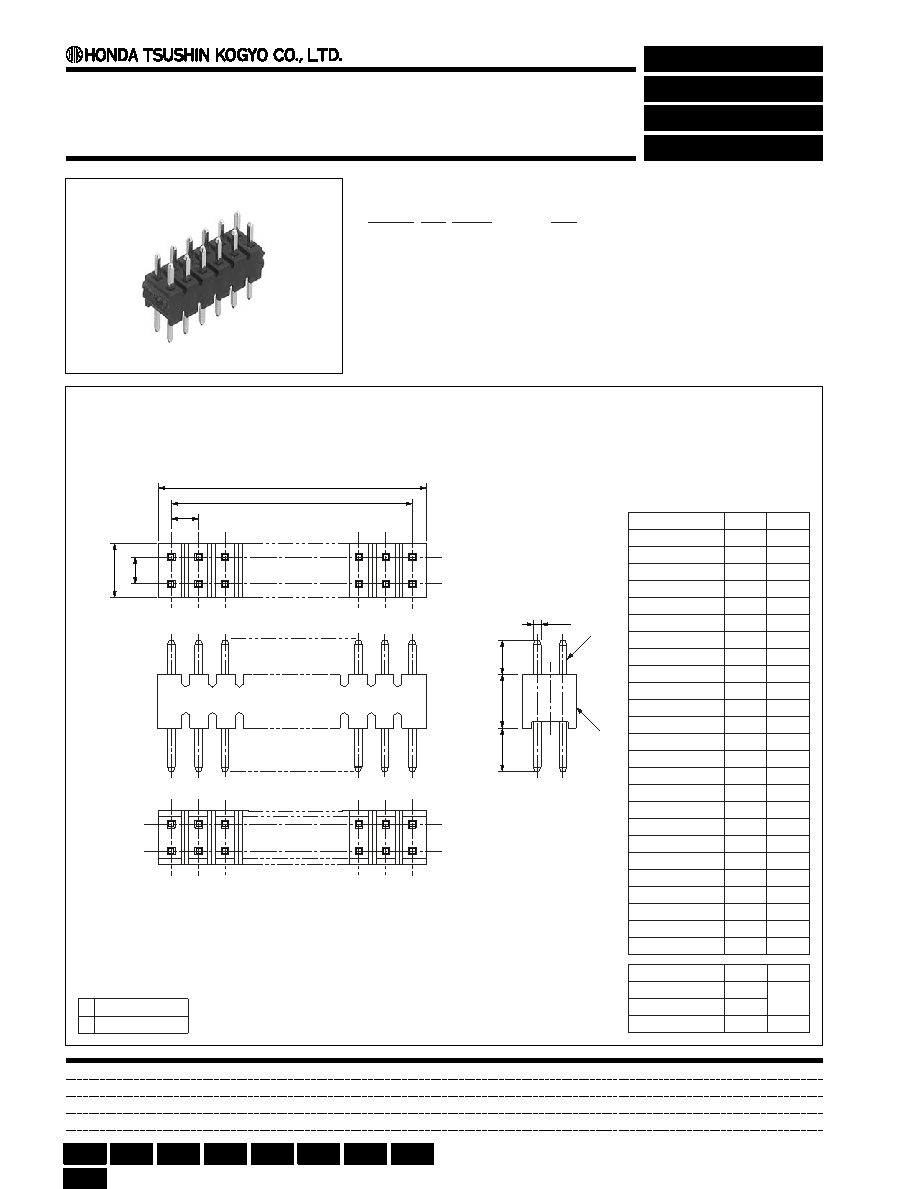

2 mm pitch connectors
For PCBs
Straight DIP
● Configuration of product Part No.
Mating connectors: LPC series of female connectors or shunt plugs
Straight DIP type male connector for PCBs
LPC-( )(T )MB2( )
LPC- ( ) (T ) MB2 ( )
-
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
● Dimensions
LPC-2(T )MB2( )
LPC-4(T )MB2( )
LPC-6(T )MB2( )
LPC-8(T )MB2( )
LPC-10(T )MB2( )
LPC-12(T )MB2( )
LPC-14(T )MB2( )
LPC-16(T )MB2( )
LPC-18(T )MB2( )
LPC-20(T )MB2( )
LPC-22(T )MB2( )
LPC-24(T )MB2( )
LPC-26(T )MB2( )
LPC-28(T )MB2( )
LPC-30(T )MB2( )
LPC-32(T )MB2( )
LPC-34(T )MB2( )
LPC-36(T )MB2( )
LPC-38(T )MB2( )
LPC-40(T )MB2( )
LPC-42(T )MB2( )
LPC-44(T )MB2( )
LPC-46(T )MB2( )
LPC-48(T )MB2( )
LPC-50(T )MB2( )
Part No.
AB
3
3.6
3.1
3
2
LPC-( )MB2( )
LPC-( )TMB2( )
LPC-( )TIMB2( )
CD
0.5
B
A
2
4
D
C
2
4
Series name
No. of contacts: 2-50
Length No. of contact:
Refer to the table of dimensions below.
Contact plating
Blank: Tin/Lead plating
G: Gold plating
● Components
Insulator
Contacts
Because some combinations of “Configurations of
Product Part No.”, are under consideration for
development, please contact us for availability details.
Others
Wire
wrapping
Crimping
Soldering
IDC
Press-in
SMT
DIP
