Application Notes
(Continued)

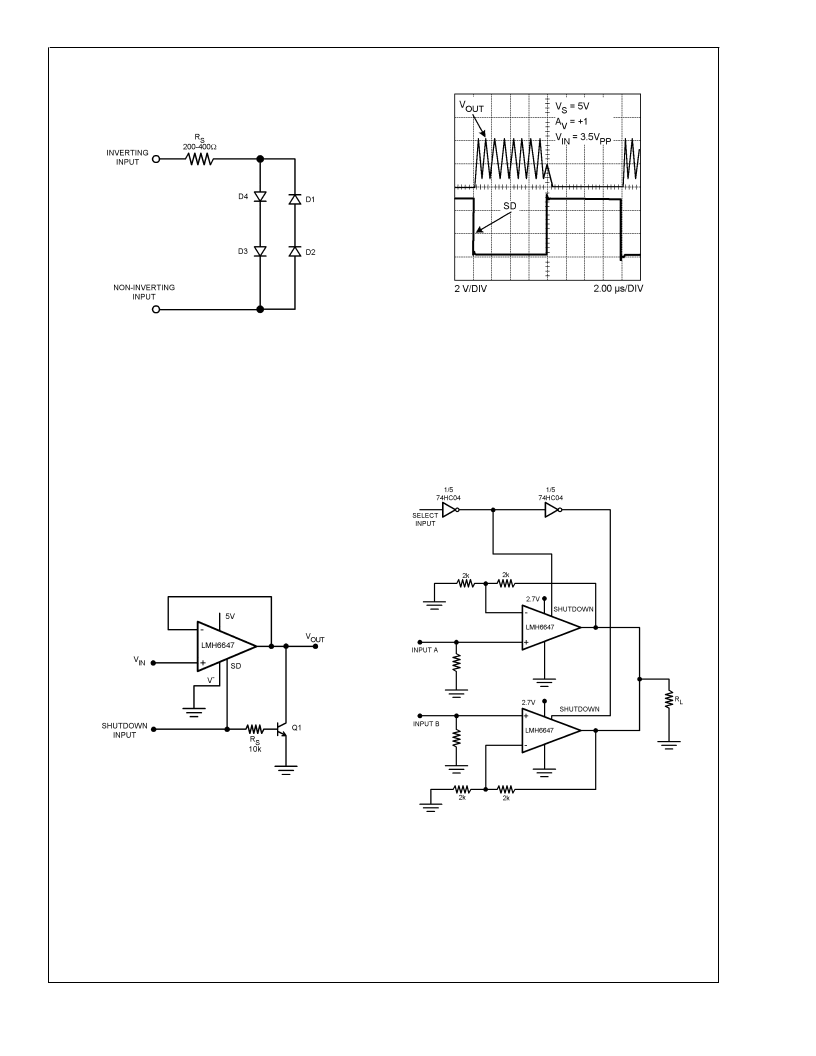

During shutdown, the input stage has an equivalent circuit as
shown below in Figure 2
As can be seen above, in shutdown, there may be current
flow through the internal diodes shown, caused by input
potential, if present. This current may flow through the exter-
nal feedback resistor and result in an apparent output signal.
In most shutdown applications the presence of this output is
inconsequential. However, if the output is “forced” by another
device such as in a multiplexer, the other device will need to
conduct the current described in order to maintain the output
potential.
To keep the output at or near ground during shutdown when
there is no other device to hold the output low, a switch
(transistor) could be used to shunt the output to ground.
Figure 3shows a circuit where a NPN bipolar is used to keep
the output near ground (
～
80mV):
Figure 4 shows the output waveform.
If bipolar transistor power dissipation is not tolerable, the
switch could be by a N-channel enhancement mode MOS-
FET.
2.7V Single Supply RRIO 2:1 MUX:
The schematic show in Figure 5 will function as a 2:1 MUX
operating on a single 2.7V power supply, by utilizing the
shutdown feature of the LMH6647:
20020256
FIGURE 2. LMH6647 Equivalent Input in Shutdown
Mode
20020264
FIGURE 3. Active Pull-Down Schematic
20020236
FIGURE 4. Output Held Low by Active Pull-Down
Circuit
20020258
FIGURE 5. 2:1 MUX Operating off a 2.7V Single Supply
L
www.national.com
15
