LH1687
4

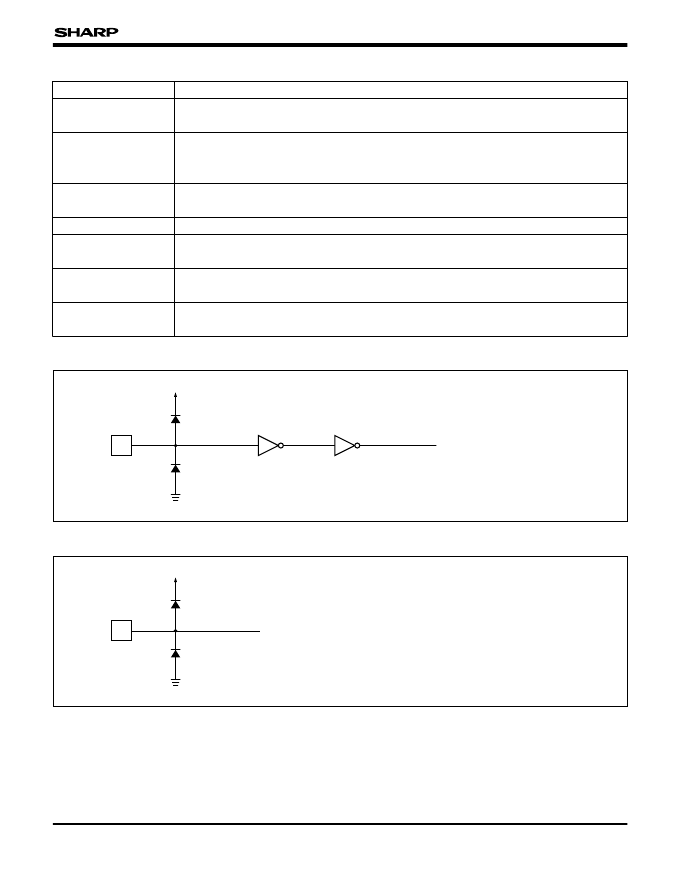

INPUT/OUTPUT CIRCUITS
I
V
CC
L
GNDL
To Internal Circuit
Fig. 1 Input Circuit (1)
Applicable pins
CK, CTR, MODE
I
V
CC
A
GNDA
To Internal Circuit
Fig. 2 Input Circuit (2)
Applicable pins
V
A
, V
B
, V
C
BLOCK
FUNCTION
Control Logic
Used to create signals necessary for each operation mode setting and sampling signal
creation circuits, etc.
Used as transfer circuit of video sampling start signals.
It is possible to set the direction of sampling start signal sequence OS
1
/
OS
240
or
OS
240
/
OS
1
by setting the R/L pin.
Used to create the sampling signals corresponding to each output pin based on the
sampling start signals transferred by the bi-directional shift register.
Used to set the form of the video signals to be sent to the sample and hold circuits.
Used to sample the video signals input from the mode setting circuit at the timing of the
sampling signals and hold the sampling data until the next sampling operation.
Bi-directional Shift
Register
Sampling Signal
Creation Circuit
Mode Setting Circuit
Sample and Hold
Circuit
Bias Generation Circuit Used to generate bias voltage necessary for output circuits.
Output Circuit
The circuit consists of a push-pull output operational amplifier and outputs the voltage
corresponding to the data held in the sample and hold circuits.
FUNCTIONAL OPERATIONS OF EACH BLOCK
