DELTA ELECTRONICS, INC.
3
Oct., 2006
Rev. 6F
www.deltaww.com
Optical Characteristics
(VCC=3.3V ± 5%, Data Rate=1250Mb/sec, PRBS=2
7-1 NRZ)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Transmitter
Output Optical Power (Avg.)
PO
-9.5
-4
dBm
Optical Extinction Ratio
ER
9
dB
Center Wavelength
C
830
850
860
nm
Spectral Width (RMS)
0.85
nm
Optical Rise/ Fall Time
tr/tf
260
pec
1
Receiver
Sensitivity (Avg.)
PIN
-17
dBm
2
Input Optical Wavelength
850
nm
LOS-Deasserted (Avg.)
PA
-17
dBm
LOS-Asserted (Avg.)
PD
-30
dBm
LOS-Hysteresis
PA-PD
0.5
dB
Overload
PO
-3
dBm
Notes:
1. These are unfiltered 20%~80% values
2. The sensitivity is provided at a BER of 1×10
-12or better with an input signal consisting of 1250Mb/s,
2
7-1 PRBS and ER=9dB.

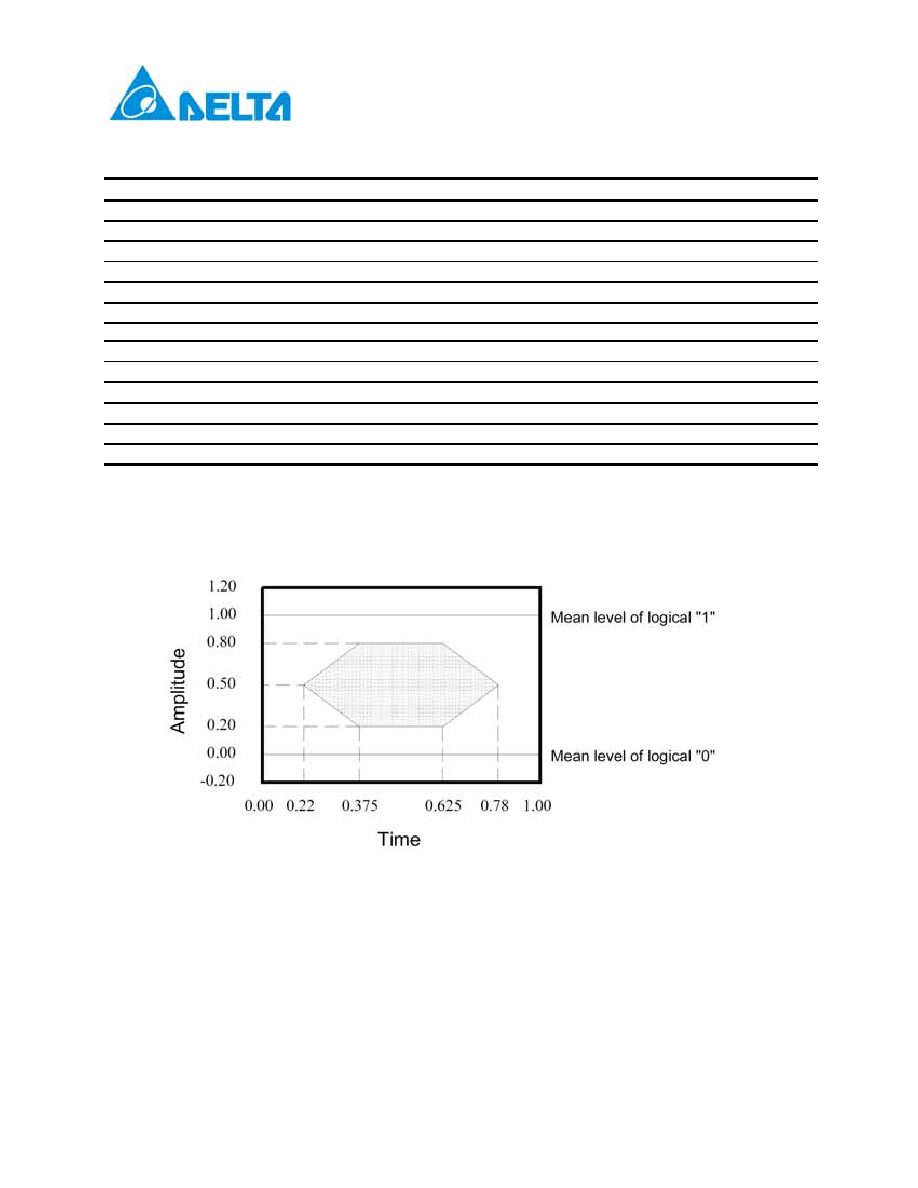

Mask of the eye diagram for the optical transmit signal
