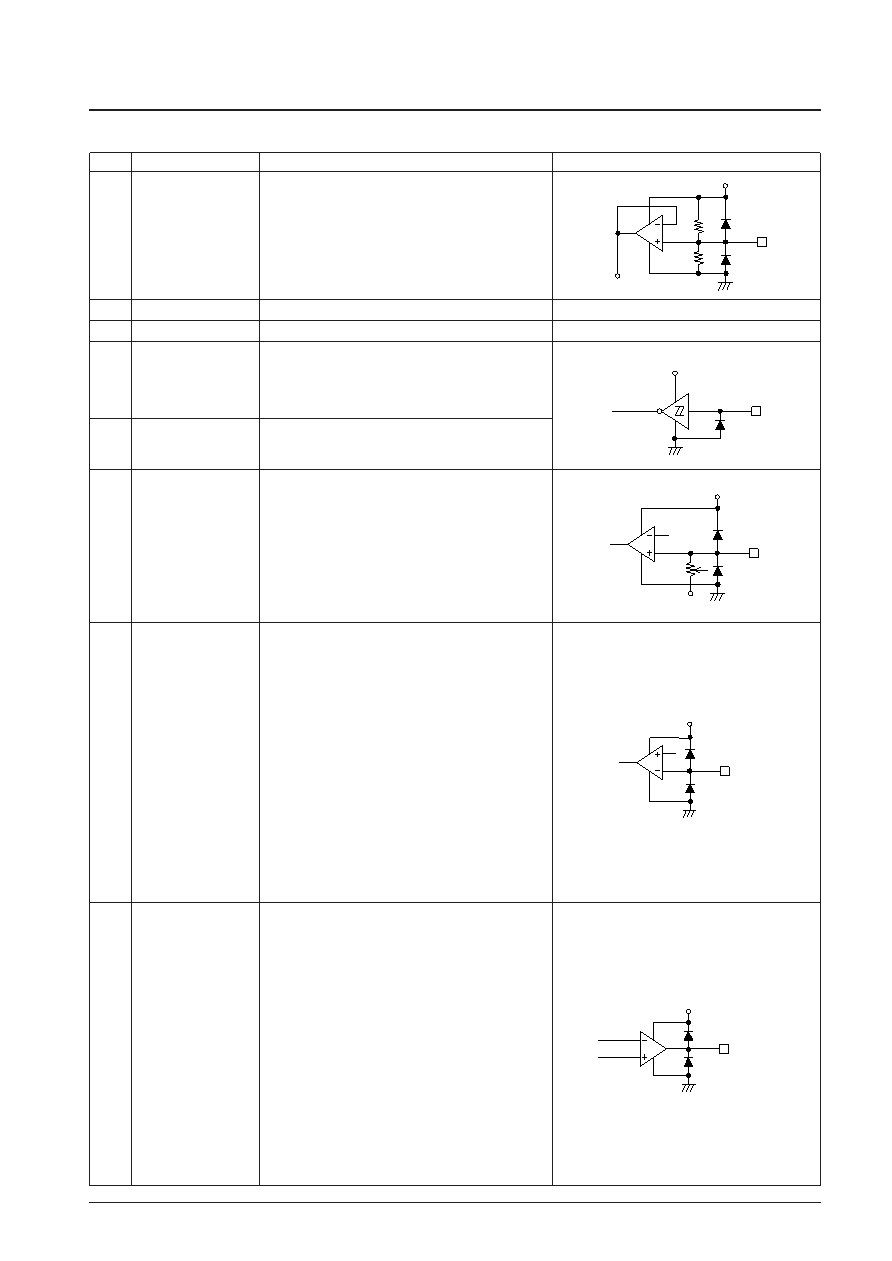

No. 6867-14/28
LC75343M
Continued from preceding page.
Pin No.
Pin Name
Function
Equivalent circuit
Connect a capacitor of a few tens of F between Vref and
AVSS (VSS) as a analog ground 0.5 × VDD voltage
generator, current ripple countermeasure.
19
Vref
VDD
Vref
VDD
Ground pin
3
VSS
Power supply pin
35
VDD
Chip enable pin
Data is written to the internal latch and the analog switches
are operated when the level changes from high to low.
Data transfer is enabled when the level is high.
2CE
VDD
INP
Vref
General-purpose op-amp specifications
Non-inverted input pins of general-purpose op-amp
When not used, leave open.
ATT control specifications
Non-inverted input pins for ATT.
3-band specifications
Non-inverted input pins for ATT.
Always leave these pins open.
6
32
LINP
RINP
VDD
INM
General-purpose op-amp specifications
Non-inverted input pins of general-purpose op-amp.
When not used, connect these pins to the L(R) OPOUT pins.
(Connected between pin 5 and pin 4)
(Connected between pin 33 and pin 34)
ATT control specifications
Op-amp inverted input pins for ATT.
Connected to L(R) OPOUT pins.
(Connected between pin 5 and pin 4)
(Connected between pin 33 and pin 34)
3-band specifications
Inverted input pins of ATT op-amp.
Connected to L(R) OPOUT pins.
(Connected between pin 5 and pin 4)
(Connected between pin 33 and pin 34)
5
33
LINM
RINM
VDD
OPOUT
General-purpose op-amp specifications
General-purpose op-amp output pins.
When not used, connect these pins to the L(R) INM pins.
(Connected between pin 5 and pin 4)
(Connected between pin 33 and pin 34)
ATT control specifications
Op-amp output pins for ATT.
Connected to L(R) INM pins.
(Connected between pin 5 and pin 4)
(Connected between pin 33 and pin 34)
3-band specifications
ATT op-amp output pins.
(Connected to L(R) INM pins.
(Connected between pin 5 and pin 4)
(Connected between pin 33 and pin 34)
4
34
LOPOUT
ROPOUT
Serial data pins and clock input pin for control
1
36
DI
CL
