KA9258D(KA9258CD)
10

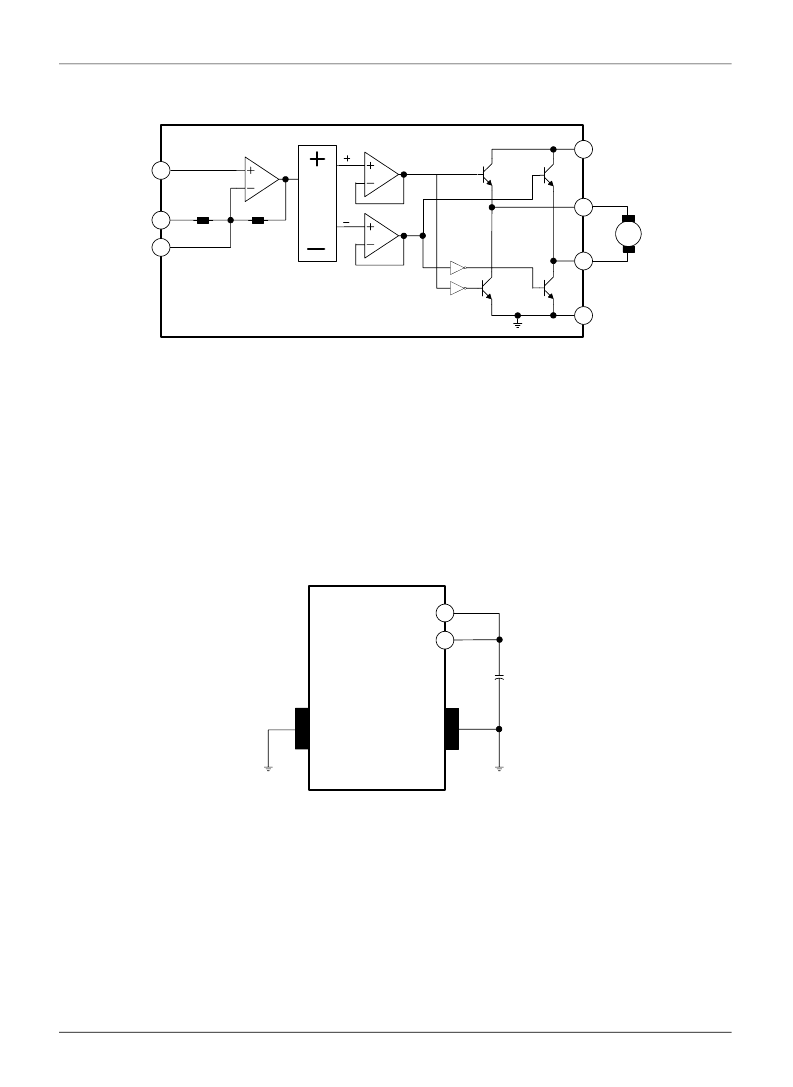

4. Balanced Transformerless(BTL) Driver
The voltage, V
REF
, is the reference voltage given by the bias voltage of the pin #23.
The input signal through the pin #3 is amplified by 10K/10K times and then fed to the level shift.
The level shift produces the current due to the difference between the input signal and the arbitrary reference signal. The
current produced as +
I and
I is fed into the driver buffer.
Driver Buffer operates the power transistor of the output stage according to the state of the input signal.
The output stage is the BTL driver and the motor is rotating in forward direction by operating transistor Q1 and Q4. On the
other hand, if transistor Q2 and Q3 is operating, the motor is rotating in reverse direction
When the input voltage through the pin #3 is below the V
REF
, then the direction of the motor in forward direction.
When the input voltage through the pin #3 is above the V
REF
, then the direction of the motor in reverse direction.
If it is desired to change the gain, then the pin #4 or #24 can be used.
5. Connect a by-pass capacitor, 0.1
μ
F between the supply voltage source.
Radiation FIN is connecting to the internal GND of the package.
Connect the FIN to the external GND.
10K
10K
V
REF
Q1
Q2
Q3
Q4
22
Buffer
Buffer
BTL Driver
2
1
28
23
3
4
I
I
M
Level
Shift
KA9258D
22
21
0.1uF
FIN
FIN
VCC1
VCC2
