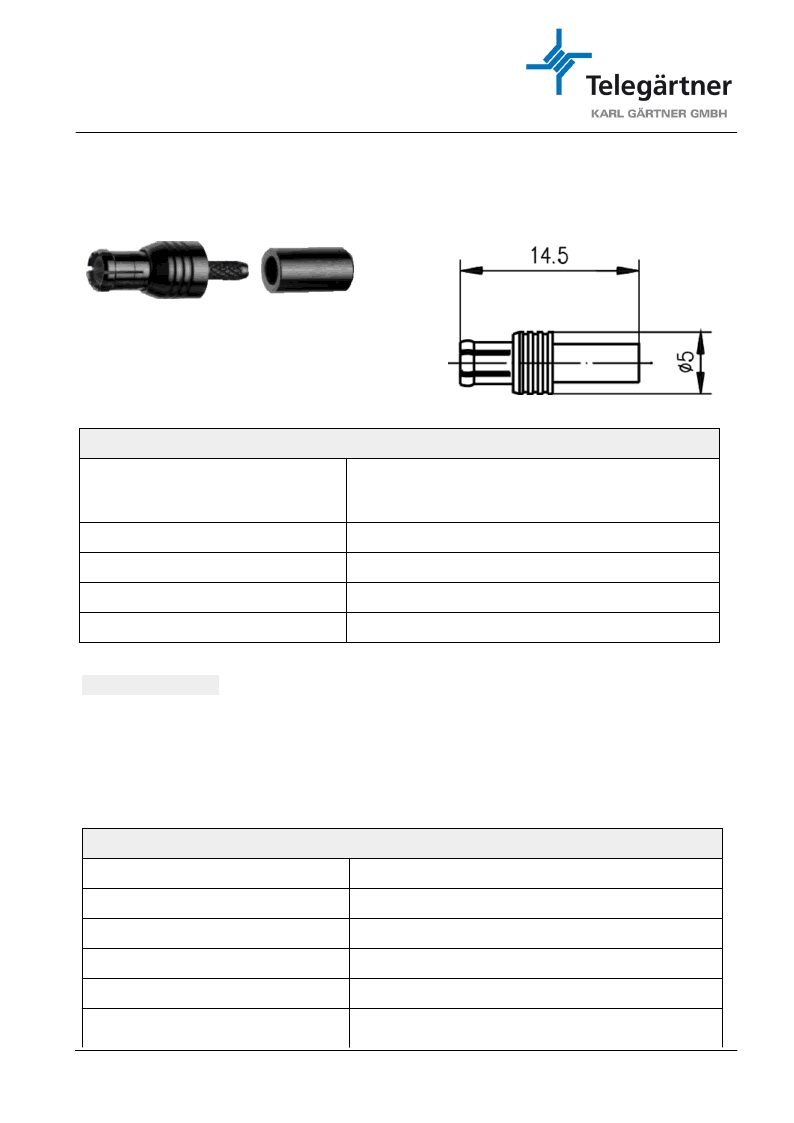

order number: J01270A0189
MCX Straight Plug Crimp K 01252 d crimp/crimp
Technical Attributes
Cable group; cable
K 01252 d
K 01252 D
Assembly
C2117
Remarks
crimp/crimp
Crimp die
N01001A0010
Finish
Nickel
Product description
The MCX series of miniature connectors utilizes a snap coupling and is suitable for use up to 6 GHz. The
impedance is controlled at 50 . Connector designs are available for flexible, conformable and semi-rigid
cables. Styles are available for mounting to printed circuit boards using thru-hole soldering, press-fit and
surface mount technology (SMD). Solder and crimp techniques are used to terminate this series to cables.
Because of their small size, these connectors have applications in small instruments and communication
equipment.
Mechanical Characteristics
Durability (mating cycles): standard type
≥ 100
Durability (mating cycles): MIL type
≥ 500
Engangement/Disengagement
14 N typ.
Material: spring contacts
CuBe2
Material: solid contact parts
CuZn39Pb3
Cu
1 / 3
2010 Telegrtner Karl Grtner GmbH. Technische nderungen vorbehalten. Technical changes reserved. www.telegaertner.com
Lerchenstr. 35, D-71144 Steinenbronn, Tel. +49 (0) 7157 125 100, Fax +49 (0) 7157 125 120, E-Mail: info@telegaertner.com
