| 型號： | IWFM18L9504/S35A |
| 元件分類： | 速度傳感器和接近開關 |
| 英文描述： | PROXIMITY SENSOR-INDUCTIVE, 0-4mm, 0-10V, RECTANGULAR, PANEL MOUNT |
| 文件頁數： | 1/1頁 |
| 文件大小： | 78K |
| 代理商： | IWFM18L9504/S35A |

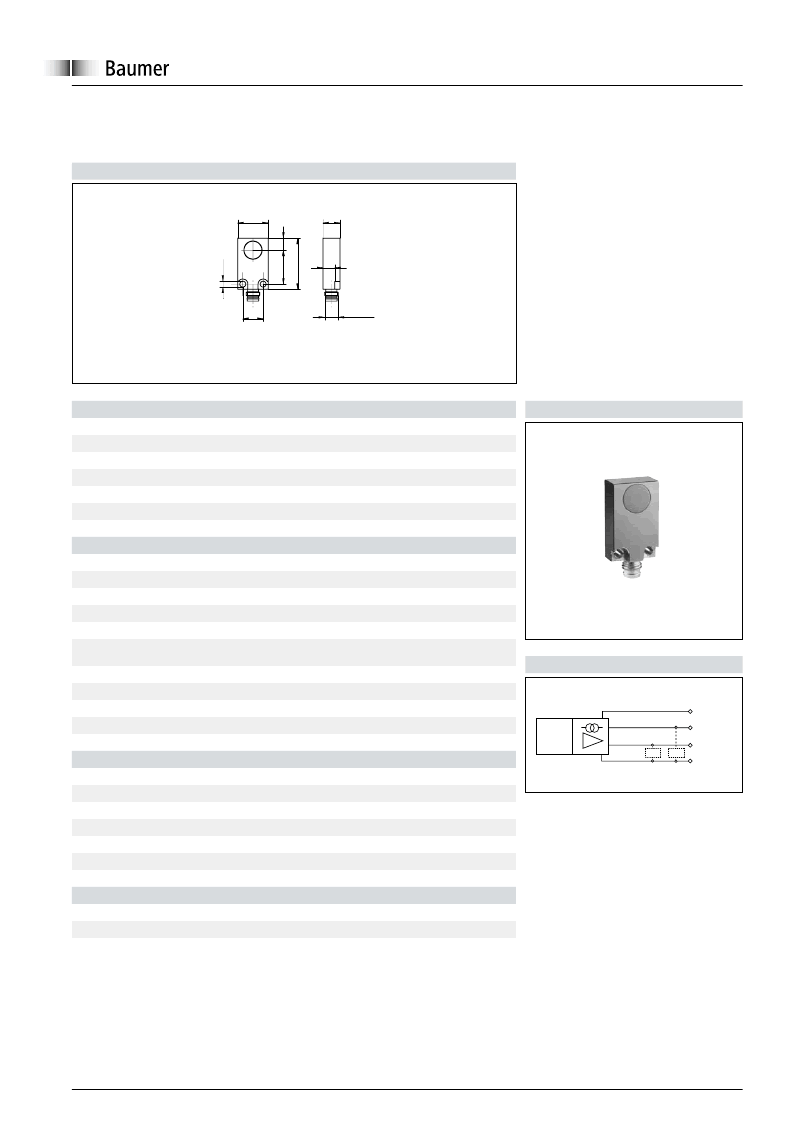

21/4/2011
IWFM 18L9504/S35A
Inductive linear sensors
Inductive sensors
www.baumer.com
general data
mounting type
measuring distance Sd
resolution
repeat accuracy
linearity error
temperature drift
shielded
0 ... 4 mm
< 0,005 mm
< 0,01 mm
± 4 % (S = 0,5 ... 4 mm Full Scale)
± 5 % (Full Scale)
electrical data
response time (factory characteristic)
voltage supply range +Vs
current consumption max.
output circuit
output signal
load resistance
< 2 ms
15 ... 30 VDC
40 mA
voltage - / current output
0 ... 10 V / 4 ... 20 mA
> 1000 Ohm (Uout ) / 330 ... 1000 Ohm
(Iout)
< 72 VDC (Iout)
yes
yes
voltage drop Vd
short circuit protection
reverse polarity protection
mechanical data
type
housing material
dimension
housing length
connection types
rectangular
brass nickel plated
18 mm
30 mm
connector M8
ambient conditions
operating temperature
protection class
-10 ... +70 °C
IP 67
dimension drawing
7
10
M8 x 1
18
7
2
3
12
3
connection diagram
BN (1)
WH (2)
+ Vs
output I
output U
0 V
BK (4)
BU (3)
Z
Z
IWFM
~
linearity deviation (S = 0,5...4 mm) ± 4%
(Full Scale)
load resistance: Uout min 1000 Ohm /
Iout 330 - 1k
voltage drop Vd: Iout 72 V
