- 您現在的位置：買賣IC網 > PDF目錄2081 > ISL59112IEZ-T7 (Intersil)IC VIDEO BUFFER 40MHZ R-R SC70-6 PDF資料下載
參數資料
| 型號： | ISL59112IEZ-T7 |
| 廠商： | Intersil |
| 文件頁數： | 6/8頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC VIDEO BUFFER 40MHZ R-R SC70-6 |
| 標準包裝： | 1 |
| 應用： | 緩沖器 |
| 輸出類型： | 滿擺幅 |
| 電路數： | 1 |
| -3db帶寬： | 40MHz |
| 轉換速率： | 85 V/µs |
| 電流 - 電源： | 2mA |
| 電流 - 輸出 / 通道： | 115mA |
| 電壓 - 電源，單路/雙路(±)： | 2.5 V ~ 3.6 V |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 6-TSSOP，SC-88，SOT-363 |
| 供應商設備封裝： | SC-70-6 |
| 包裝： | 標準包裝 |
| 產品目錄頁面： | 1235 (CN2011-ZH PDF) |
| 其它名稱： | ISL59112IEZ-T7DKR |
6
FN6142.4
March 15, 2007
Typically, this is accomplished with 220F coupling
capacitor, a large and somewhat costly solution providing a
low frequency pole around 5Hz. If the size of this capacitor is
even slightly reduced we have found that the accompanying
phase shift in the 50Hz to 100Hz frequency range results in
field tilt, which results in a degraded video image.
The internal SAG network of the ISL59112 replaces the
220F AC coupling capacitor with a network of two smaller
capacitors as shown, in Figure 12. Additionally, the network
is designed to place a zero in the ~30Hz range, providing a
small amount of peaking to compensate the phase response
associated with field tilt.
DC Output Coupling
The ISL59112 internal sync clamp makes it possible to DC
couple the output to a video load, eliminating the need for
any AC coupling capacitor, thereby saving board space and
additional expense for capacitors. Additionally, this solution
completely eliminates the issue of field tilt in the lower
frequency. The trade off is greater demand of supply current.
Typical load current for AC coupled is around 3mA
compared to typical 6mA used when DC coupling.
Output Drive Capability
The ISL59112 does not have internal short-circuit protection
circuitry. If the output is shorted indefinitely, the power
dissipation could easily overheat the die or the current could
eventually compromise metal integrity. Maximum reliability is
maintained if the output current never exceeds ±40mA. This
limit is set by the design of the internal metal interconnect.
Note that in transient applications, the part is robust.
Short-circuit protection can be provided externally with a
back match resistor in series with the output placed close as
possible to the output pin. In video applications this would be
a 75
Ω resistor and will provide adequate short-circuit
protection to the device. Care should still be taken not to
stress the device with a short at the output.
Power Dissipation
With the high output drive capability of the ISL59112, it is
possible to exceed the +125°C absolute maximum junction
temperature under certain load current conditions.
Therefore, it is important to calculate the maximum junction
temperature for an application to determine if load conditions
or package types need to be modified to assure operation of
the amplifier in a safe operating area.
The maximum power dissipation allowed in a package is
determined according to Equation 1:
Where:
TJMAX = Maximum junction temperature
TAMAX = Maximum ambient temperature
Θ
JA = Thermal resistance of the package
The maximum power dissipation actually produced by an IC
is the total quiescent supply current times the total power
supply voltage, plus the power in the IC due to the load, or
for sourcing:
for sinking:
Where:
VS = Supply voltage
ISMAX = Maximum quiescent supply current
VOUT = Maximum output voltage of the application
RLOAD = Load resistance tied to ground
ILOAD = Load current
By setting the two PDMAX equations equal to each other, we
can solve the output current and RLOAD to avoid the device
overheat.
R6
R5
R4
R7
C5
C4
ROUT
RL
SAG
NETWORK
AC COUPLING
CAPACITOR

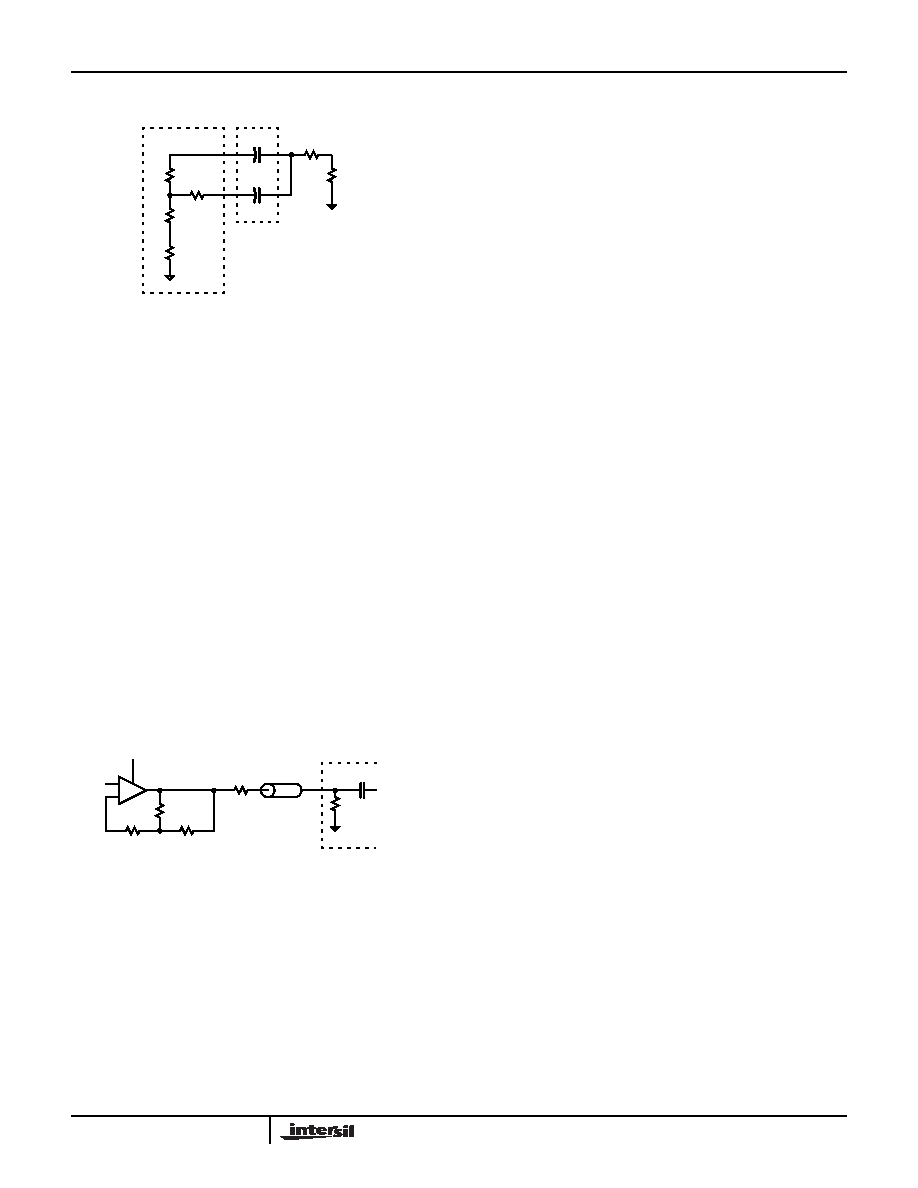

FIGURE 12. SAG NETWORK AND AC COUPLING CAPACITORS
-
+
TELEVISION
OR VCR
ROUT
ENABLE
FIGURE 13. DC COUPLE
PD
MAX
T
JMAX
T
AMAX
–
Θ
JA
---------------------------------------------
=
(EQ. 1)
PD
MAX
V
S
I
SMAX
V
S
V
OUTi
–
()
+
×
V
OUTi
R
Li
-----------------
×
=
(EQ. 2)
PD
MAX
V
S
I
SMAX
V
OUTiVS
–
()
+
×
I
LOADi
×
=
(EQ. 3)
