IRAMS06UP60B
www.irf.com
7
Note 6: The shaded area indicates that both high-side and low-side switches are off and therefore the half-bridge output
voltage would be determined by the direction of current flow in the load.

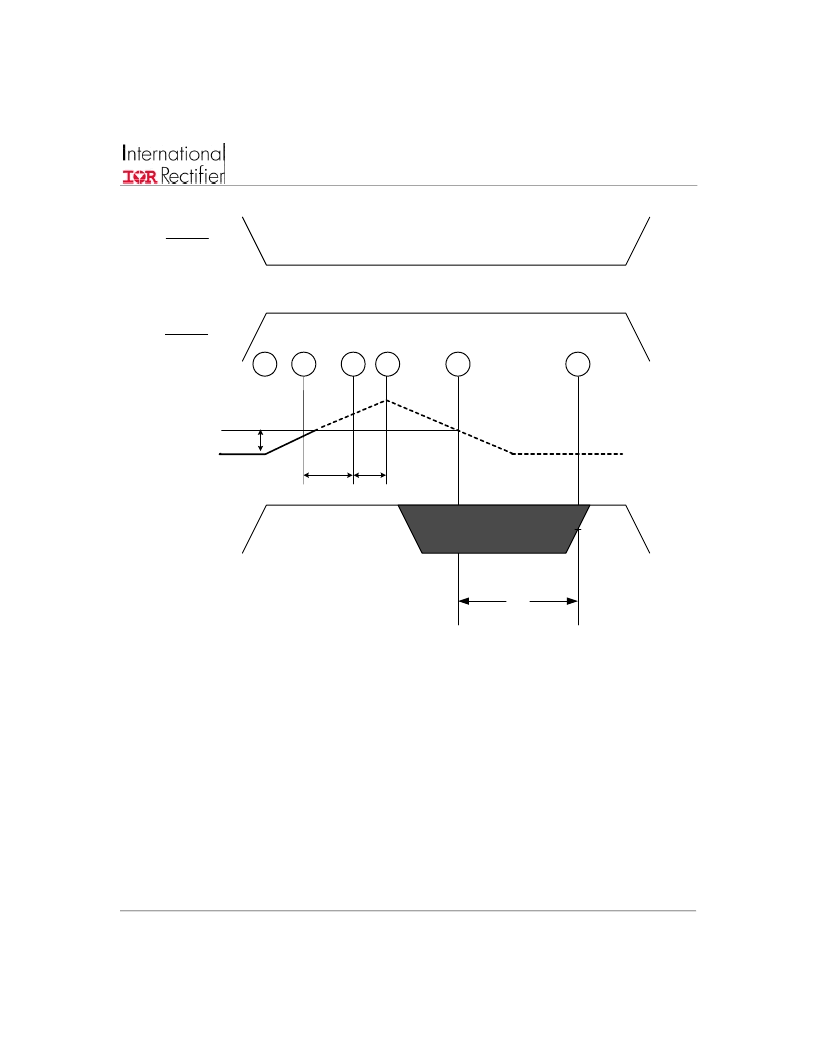

Figure 2. I
Trip
Timing Waveform
LIN1,2,3
HIN1,2,3
t
fltclr
50%
U,V,W
I
BUS_trip
6
μ
s
1
μ
s
I
BUS
Sequence of events:
1-2) Current begins to rise
2) Current reaches I
level
2-3) Current is higher than I
for at least 6
μ
s. This value is the worst-case condition with very low
over-current. In case of high current (short circuit), the actual delay will be smaller.
3-4) Delay between driver identification of over-current condition and disabling of all outputs
4) Current starts decreasing, eventually reaching 0
5) Current goes below I
, the driver starts its auto-reset sequence
6) Driver is automatically reset and normal operation can resume (over-current condition must be removed
by the time the drivers automatically resets itself)
3
4
2
1
5
6
