IR3622AMPbF
www.irf.com
17
Pre-Bias
The IR3622A is able to start up into pre-charged
output,
which
prevents
oscillation
and
disturbances of the output voltage.
The output starts in asynchronous fashion and
keeps the synchronous MOSFET off until the first
gate signal for control MOSFET is generated.
Figure below shows a typical Pre-Bias condition
at start up.
Depending on system configuration, specific
amount of output capacitance may be required to
prevent discharging the output voltage.
Over Voltage Protection
Over-voltage is sensed through two dedicated
sense pins V
SEN1, VSEN2. A separate OVP circuit
is provided for each channel.
The OVP threshold is user programmable and
can be set by two external resistors. Upon over-
voltage condition of either one of the outputs, the
OVP forces a latched shutdown on the fault
output. In this mode, the upper FET driver turns
off and the lower FET drivers turn on, thus
crowbaring the output. Reset is performed by
recycling the Vcc or Enable.
Power Good
The IR3622A provides two separate open
collector power good signals which report the
status of the outputs. The outputs are sensed
through the two dedicated V
SEN1 and VSEN2 pins.
Once the IR3622A is enabled and the outputs
reach the set value (90% of the Vout set point)
the power good signals go open and stay open
as long as the outputs stay within the set values.
These pins need to be externally pulled high.
Shutdown using Soft Start pins
The outputs can be shutdown by pulling the soft-
start pins below 0.3V. This can be easily done by
using an external small signal transistor. During
shutdown both MOSFET drivers will be turned
off. Normal operation will resume by cycling soft
start pin.

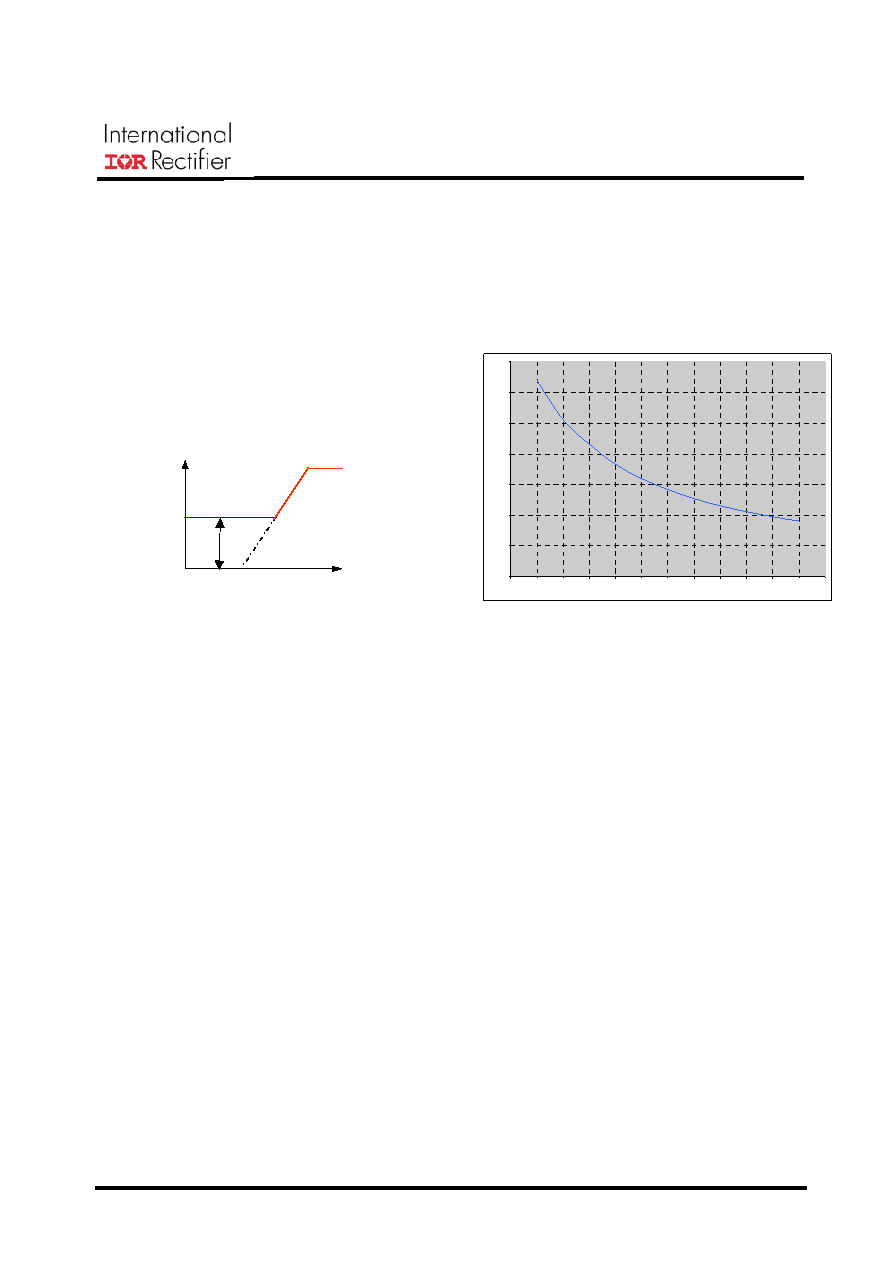

Fig. 16: Switching Frequency vs. External Resistor (Rt)
Operating Frequency Selection
The switching frequency is determined by
connecting an external resistor (Rt) to ground.
Figure 16 provides a graph of oscillator
frequency
versus
Rt.
The
maximum
recommended channel frequency is 600kHz.
Frequency Synchronization
The IR3622A is capable of accepting an external
digital synchronization signal. Synchronization
will be enabled by the rising edge at an external
clock. Per –channel switching frequency is set
by external resistor (Rt). The free running
frequency oscillator frequency is twice the per-
channel frequency. During synchronization, Rt is
selected such that the free running frequency is
20% below the synchronization frequency.
Synchronization capability is provided for both
single output current share mode and dual
output
configuration. The sync pin is noise
immune, when unused it should be left floating.
Thermal Shutdown
Temperature
sensing
is
provided
inside
IR3622A. The trip threshold is typically set to
140oC. When trip threshold is exceeded, thermal
shutdown turns off both MOSFETs. Thermal
shutdown is not latched and automatic restart is
initiated when the sensed temperature drops to
the normal range. There is a 20oC (typical)
hysteresis in the shutdown threshold.
Vo
Time
V
Pre-Bias Voltage
(Output Voltage before startup)
0
100
200
300
400
500
600
700
5
1015
2025
3035
40
45
5055
60
65
Rt (Kohm)
Fsw
(
k
H
z
)
