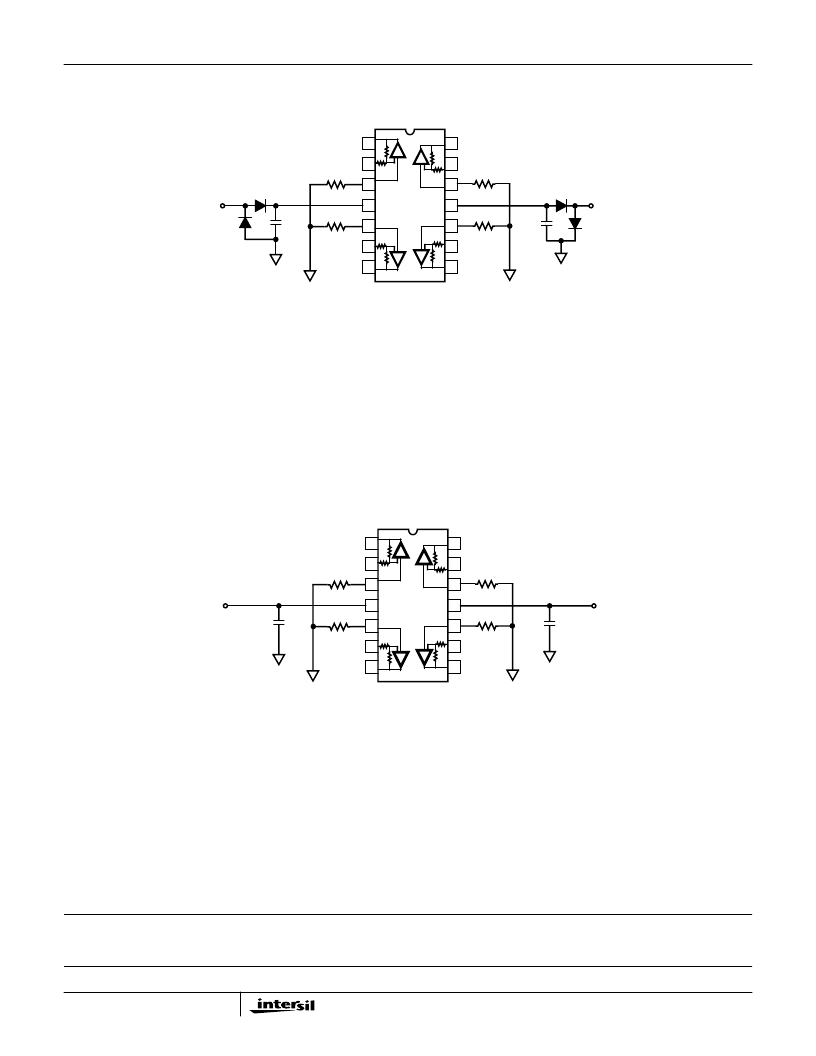

Burn-In Circuit
HS-1412RH CERDIP
NOTES:
1. R1 = 1k
,
±
5%, 1/4W [Per Socket].
2. C1 = C2 = 0.01
μ
F [Per Socket] or 0.1
μ
F (Per Row) Minimum.
3. D1 = D2 = 1N4002 or Equivalent [Per Board].
4. D3 = D4 = 1N4002 or Equivalent [Per Socket].
5. (-V) + (+V) = 11V
±
1.0V.
6. 20mA < (I
CC
, I
EE
) < 32mA.
7. -50mV < V
OUT
< +50mV.
Irradiation Circuit
HS-1412RH CERDIP
NOTES:
8. R1 = 1k
±
5%
9. C1=0.1
μ
F
10. V+ = +5.0V
±
0.5V
11. V- = -5.0V
±
0.5V
1
2
3
4
5
6
7
14
13
12
11
10
9
8
V+
C1
D1
D3
D2
C2
V-
D4
R1
R1
R1
R1
1
2
3
4
5
6
7
14
13
12
11
10
9
8
V+
C1
V-
R1
R1
R1
R1
C1
HS-1412RH
