4 - 109
12 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343
Fax: 978-250-3373
Web Site: www.hittite.com
MICROWAVE CORPORATION
F
EBRUARY
2001
4
M
I
S

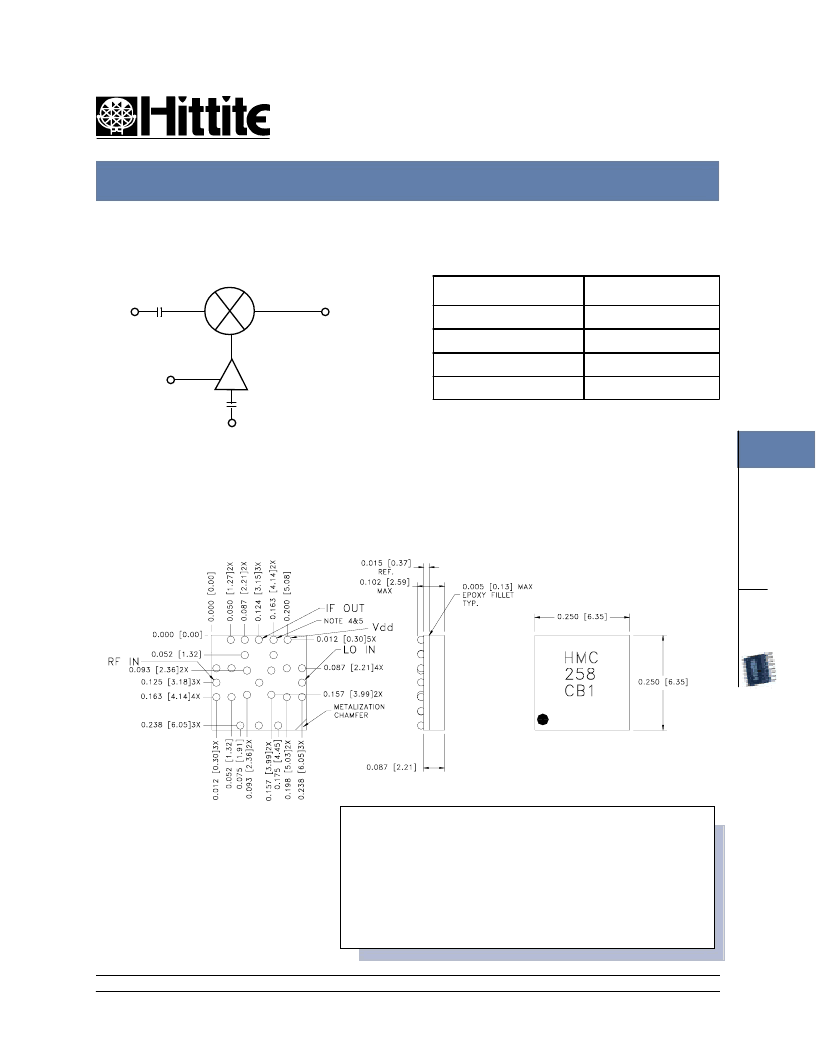

HMC258CB1 SUB-HARMONIC SMT MIXER 14 - 20 GHz
Outline Drawing
( See, Mounting, Note Page 4 - 110)
Absolute Maximum Ratings
RF / IF Input (Vdd = +5V)
+13 dBm
LO Drive (Vdd = +5V)
+13 dBm
Vdd
+8 Vdc
Storage Temperature
-65 to +150 deg C
Operating Temperature
-55 to +85 deg C
Schematic
HMC258CB1
1. MATERIAL: PACKAGE BODY: WHITE ALUMINA (99.0%)
BALL CONTACTS : SILVER-COPPER BALL, EUTECTICALLY ATTACHED
LID
: PLASTIC, B-STAGE EPOXY ATTACHED
2. PLATING : ELECTROLYTIC GOLD 50-225 MICROINCHES OVER
ELECTROLYTIC NICKEL 75 TO 225 MICROINCHES.
3. DIMENSIONS ARE IN INCHES (MILLIMETERS).UNLESS OTHERWISE SPECIFIED
ALL TOLERANCES ARE ± 0.005 (± 0.13).
4. ALL UNLABELED BALL CONTACTS ARE GROUND.
5. ALL GROUNDS MUST BE SOLDERED TO THE PCB RF GROUND
IF
(DC - 3 GHz)
RF
(14 - 20 GHz)
LO In
(7 - 10 GHz
@0 dBm TYP.)
Vdd
(+5V)
