Detailed Description
Theory of Operation
The HI5808 is a 12-bit fully differential sampling pipeline A/D
converter with digital error correction. Figure 14 depicts the
circuit for the front end differential-in-differential-out sample-
and-hold (S/H). The switches are controlled by an internal
clock which is a non-overlapping two phase signal,
φ
1
and
φ
2
,
derived from the master clock. During the sampling phase,
φ
1
, the input signal is applied to the sampling capacitors,
C
S
. At the same time the holding capacitors, C
H
, are
discharged to analog ground. At the falling edge of
φ
1
the
input signal is sampled on the bottom plates of the sampling
capacitors. In the next clock phase,
φ
2
, the two bottom
plates of the sampling capacitors are connected together
and the holding capacitors are switched to the op-amp out-
put nodes. The charge then redistributes between C
S
and
C
H
completing one sample-and-hold cycle. The output is a
fully-differential, sampled-data representation of the analog
input. The circuit not only performs the sample-and-hold
function but will also convert a single-ended input to a fully-
differential output for the converter core. During the sampling
phase, the V
IN
pins see only the on-resistance of a switch
and C
S
. The relatively small values of these components
result in a typical full power input bandwidth of 100MHz for
the converter.
As illustrated in the functional block diagram and the timing
diagram in Figure 1, three identical pipeline subconverter
stages, each containing a four-bit flash converter, a four-bit digi-
tal-to-analog converter and an amplifier with a voltage gain of 8,
follow the S/H circuit with the fourth stage being only a 4-bit
flash converter. Each converter stage in the pipeline will be
sampling in one phase and amplifying in the other clock phase.
Each individual sub-converter clock signal is offset by 180
degrees from the previous stage clock signal, with the result
that alternate stages in the pipeline will perform the same
operation.
The digital output of each of the three identical 4-bit
subconverter stages is a four-bit digital word containing a sup-
plementary bit to be used by the digital error correction logic.
The output of each subconverter stage is input to a digital delay
line which is controlled by the internal sampling clock. The func-
tion of the digital delay line is to time align the digital outputs of
the three identical four-bit subconverter stages with the corre-
sponding output of the fourth stage flash converter before
applying the sixteen bit result to the digital error correction logic.
The digital error correction logic uses the supplementary bits to
correct any error that may exist before generating the final
twelve bit digital data output of the converter.
Because of the pipeline nature of this converter, the digital
data representing an analog input sample is output to the
digital data bus on the 3rd cycle of the clock after the analog
sample is taken. This time delay is specified as the data
latency. After the data latency time, the digital data
representing each succeeding analog sample is output on
the following clock pulse. The digital output data is synchro-
nized to the external sampling clock with an output latch.
The output of the digital error correction circuit is available in
offset binary format (see Table 1, A/D Code Table).
Pin Descriptions
PIN NO.
NAME
DESCRIPTION
1
CLK
Sample Clock Input.
2
DV
CC1
Digital Supply (5.0V).
3
D
GND1
Digital Ground.
4
DV
CC1
Digital Supply (5.0V).
5
D
GND1
Digital Ground.
6
AV
CC
Analog Supply (5.0V).
7
A
GND
Analog Ground.
8
V
IN+
Positive Analog Input.
9
V
IN-
Negative Analog Input.
10
V
DC
DC Bias Voltage Output.
11
V
ROUT
Reference Voltage Output.
12
V
RIN
Reference Voltage Input.
13
A
GND
Analog Ground.
14
AV
CC
Analog Supply (5.0V).
15
D11
Data Bit 11 Output (MSB).
16
D10
Data Bit 10 Output.
17
D9
Data Bit 9 Output.
18
D8
Data Bit 8 Output.
19
D7
Data Bit 7 Output.
20
D6
Data Bit 6 Output.
21
D
GND2
Digital Output Ground.
22
DV
CC2
Digital Output Supply (3.0V to 5.0V).
23
D5
Data Bit 5 Output.
24
D4
Data Bit 4 Output.
25
D3
Data Bit 3 Output.
26
D2
Data Bit 2 Output.
27
D1
Data Bit 1 Output.
28
D0
Data Bit 0 Output (LSB).
C
H
C
S
C
S
V
IN
+
V
OUT
+
V
OUT
-
V
IN
-
φ
1
φ
1
φ
2
φ
1
φ
1
C
H
φ
1
φ
1
+
-
-
+

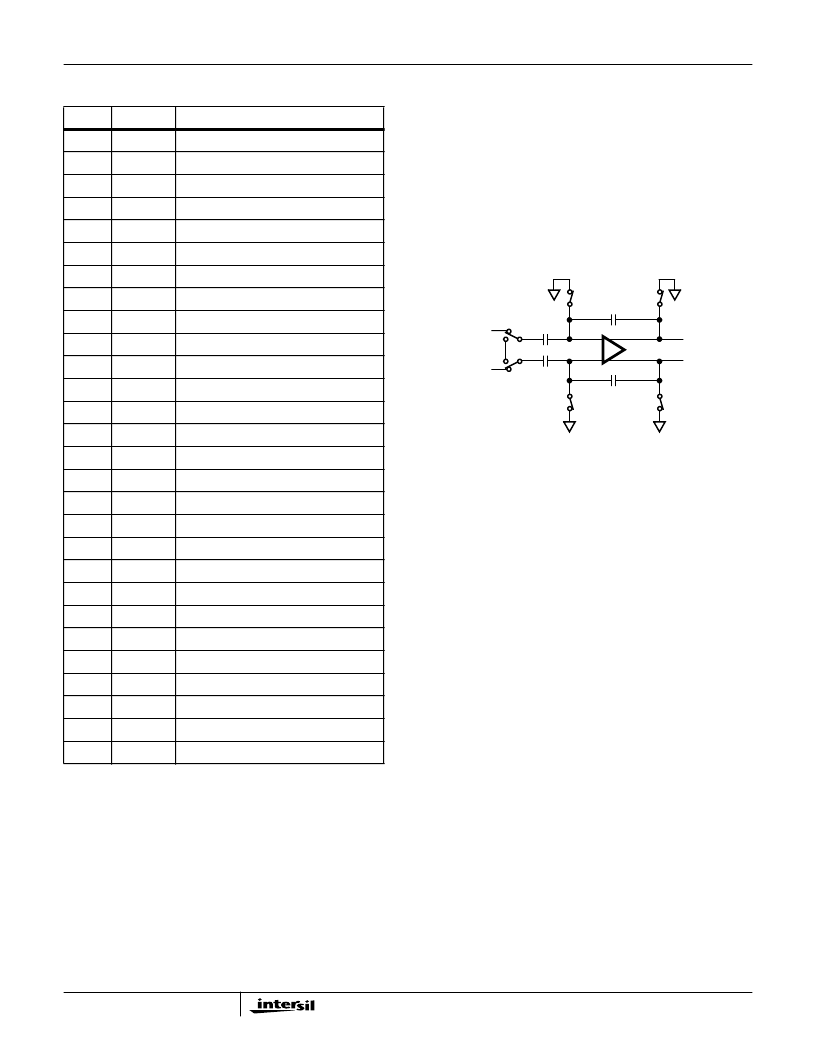

FIGURE 14. ANALOG INPUT SAMPLE-AND-HOLD
HI5808
