5
Start Bit Detection
The receiver uses a 16X clock timing. The start bit could have
occurred as much as one clock cycle before it was detected,
as indicated by the shaded portion (A). The center of the start
bit is defined as clock count 7 1/2. If the receiver clock is a
symmetrical square wave, the center of the start bit will be
located within
±
1/2 clock cycle,
±
1/32 bit or 3.125% giving a
receiver margin of 46.875%. The receiver begins searching
for the next start bit at the center of the first stop bit.
Interfacing with the HD-6402

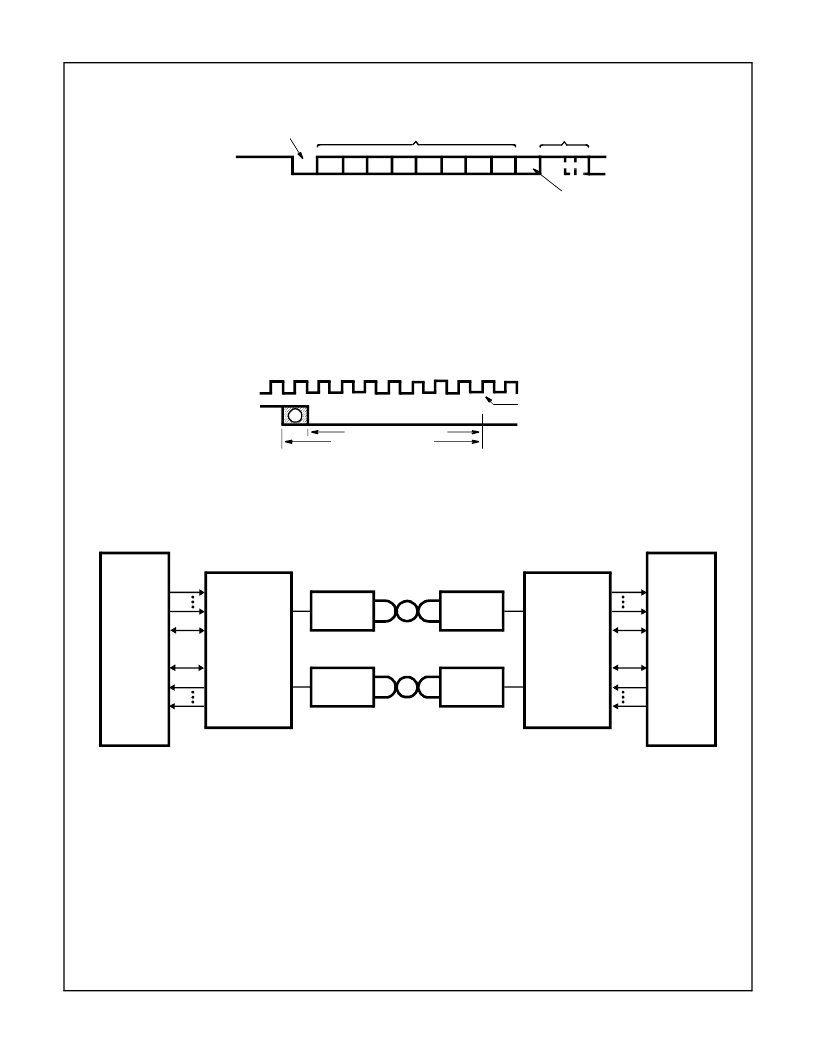

FIGURE 3. SERIAL DATA FORMAT
LSB
MSB
START BIT
PARITY
IF ENABLED
1, 11/2 OR 2 STOP BITS
5-8 DATA BITS
CLOCK
RRI INPUT
START
71/2 CLOCK CYCLES
81/2 CLOCK CYCLES
COUNT 71/2 DEFINED
CENTER OF START BIT
FIGURE 4.
A
FIGURE 5. TYPICAL SERIAL DATA LINK
DIGITAL
SYSTEM
TRANSMITTER
TBR1
RECEIVER
RRI
TRO
TBR8
CONTROL
HD-6402
CONTROL
RB1
RB8
DIGITAL
SYSTEM
TRANSMITTER
RECEIVER
RRI
TRO
TBR1
TBR8
CONTROL
HD-6402
CONTROL
RB1
RB8
RS232
DRIVER
RS232
RECEIVER
RS232
DRIVER
RS232
RECEIVER
HD-6402
