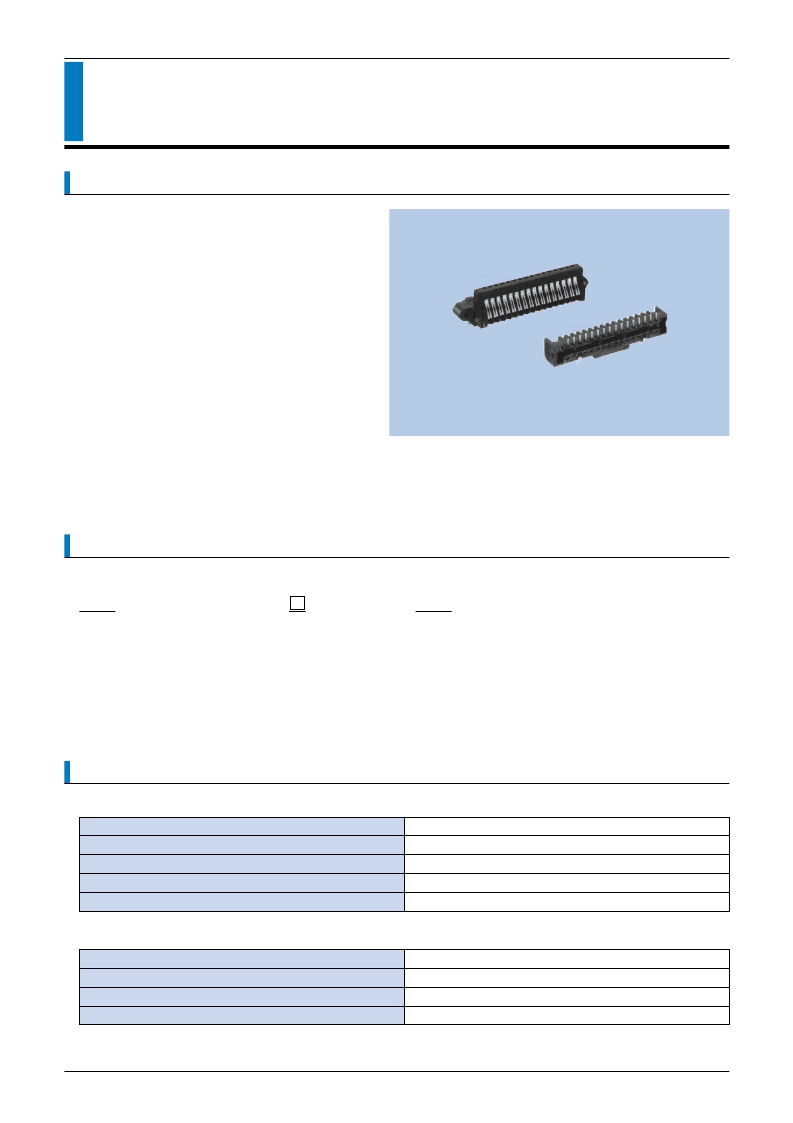

MITSUMI
Detach Connectors
CAM-G79 · G80
OUTLINE
1. These are 16-pole connectors used for
attaching and removing the operation panel to
and from the unit.
2. The coupling configuration allows rotation
coupling and horizontal mounting.
3. The plug supports automatic mounting, so is
available with a cap to prevent flux from
sticking during soldering.
4. The L-type socket supports dip soldering.
Connectors
1. CAM-G79(Plug)
G79-016-020-AGGAH-
1
1 Series No.(G79)
2 Specification partition
(None : Correspond to reflow with cap)
(-1: Correspond to handwork without cap)
2
2. CAM-G80(Socket)
G80-016-020-AGAAB
1
1 Series No.(G80)
HOW TO ORDER
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
14V DC
1A
500V AC (rms) 1minute
100M
min. (at 500V DC)
70m
max.
Life (Matching Cycle)
Total Insertion Force
Overall Rebound Force
Using Temperature Range
15,000 times
12.54N (1.28kgf) max.
12.54N (1.28kgf) max.
-
30~+85C
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
MECHANICAL CHARACTERISTICS
CAM-G80(Socket)
CAM-G79(Plug)
