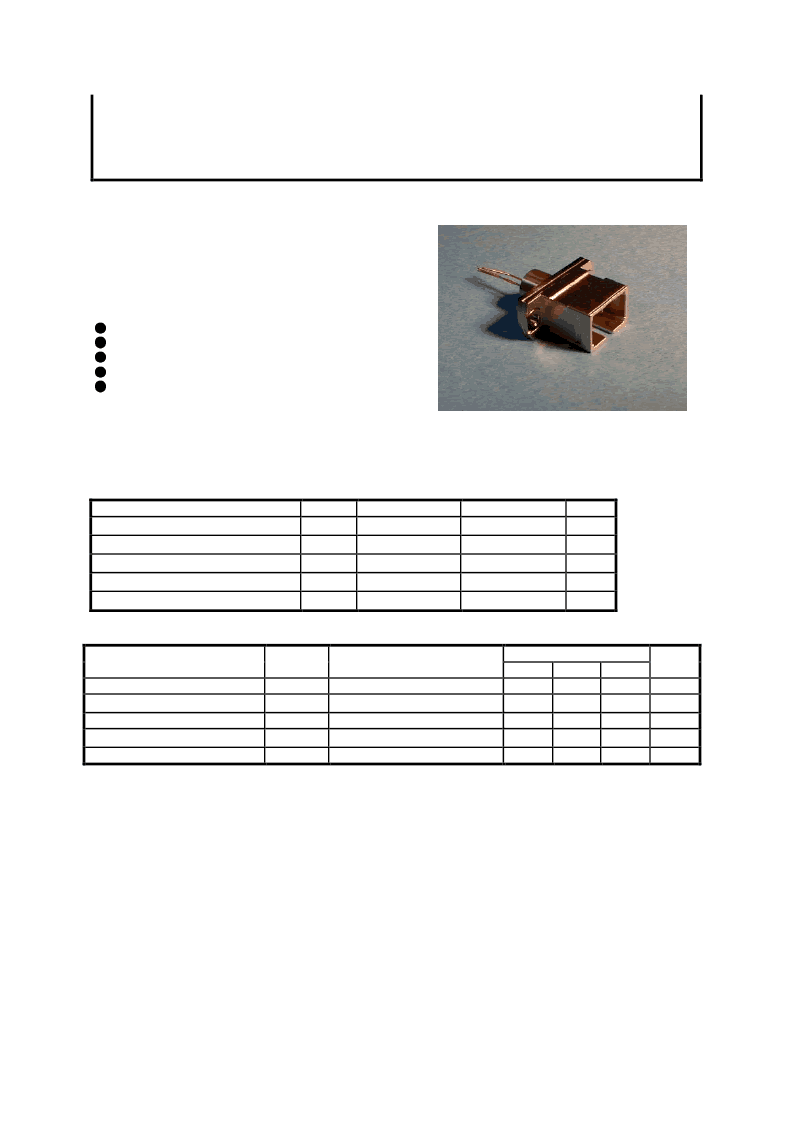

MITSUBISHI (OPTICAL DEVICES)
FU-112PD-M1
PD MODULE FOR LONG WAVELENGTH BAND
DESCRIPTION
FU-112PD-M1 is detector module containing highly
reliable InGaAs(pin photodiode) for long wavelength
band (1~1.6
m
m) and high-speed response.
These module are used as detector for high-speed,
long haul optical communication systems.
FEATURES
High-speed response (fc=1.5GHz)
Low dark current (1nA max)
High-responsivity (0.8A/W)
Easy handling
Connectoried package for SC connector
APPLICATION
FitL,LAN
ABSOLUTE MAXIMUM RATINGS
(Tc=25
°
C)
Parameter
Reverse voltage
Reverse current
Forward current
Operating case temperature
Storage temperature
Symbol
Vr
Ir
If
Tc
Tstg
Conditions
-
-
-
-
-
Rating
20
1
2
-40~+85
-40~+85
Unit
V
mA
mA
°
C
°
C
ELECTRICAL/OPTICAL CHARACTERISTICS
(Tc=25
°
C,unless otherwise noted)
Parameter
Symbol
Test Conditions
Limits
Typ.
-
0.8
-
1.5
1
Unit
Min.
1000
0.65
-
1
-
Max.
1600
-
1
-
2
Detection range
Responsivity (Note 1)
Dark current
Cut-off frequency (-3dB)
Capacitance
Note 1. Fiber : GI type with core dia. 50
m
m and N.A.0.2
-
-
nm
A/W
nA
GHz
pF
R
Id
fc
Ct
l
=1300nm,Vr=5V
Vr=5V
Rl=50
W
,Vr=5V
f=1MHz,Vr=5V
