參數資料
| 型號： | FTS125-CTV-010.0M |
| 廠商： | Connor-Winfield |
| 文件頁數： | 10/10頁 |
| 文件大小： | 0K |
| 描述： | IC GPS BASED TIMING MOD (TCXO) |
| 產品培訓模塊： | 125 Series GPS Based Timing and Synchronization Products |
| 特色產品： | FTS125-CTV GPS Disciplined Oscillator |
| 標準包裝： | 1 |
| 類型： | 定時模塊，系統(tǒng)時鐘 |
| PLL： | 無 |
| 主要目的： | GPS |
| 輸入： | LVCMOS |
| 輸出： | LVCMOS |
| 電路數： | 1 |
| 比率 - 輸入:輸出： | 2:2 |
| 差分 - 輸入:輸出： | 無/無 |
| 頻率 - 最大： | 10MHz |
| 電源電壓： | 3.135 V ~ 3.465 V |
| 工作溫度： | 0°C ~ 70°C |
| 安裝類型： | 通孔 |
| 封裝/外殼： | 32-DIP 模塊 |
| 供應商設備封裝： | 模塊 |
| 包裝： | 散裝 |
| 其它名稱： | CW682 |
FTS125-CTV Data Sheet #:
SG185
Page 9
Rev:
02
Date:
01/03/12
Copyright 2012 The Connor-Winfield Corp. All Rights Reserved
Specifications subject to change without notice

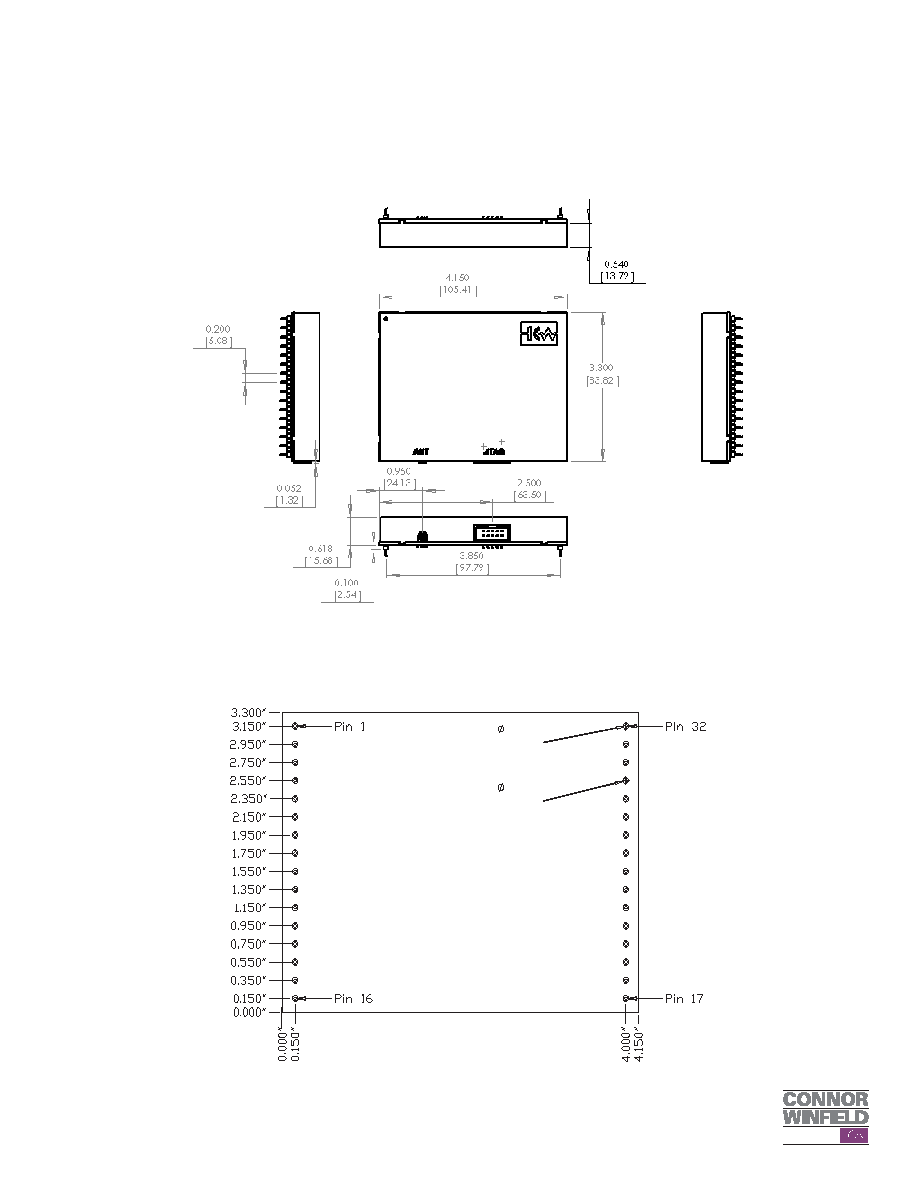

Package Dimensions
Figure 6
Recommended Footprint Dimensions
Figure 7
0.038"
Hole
Thru All
x32
0.065"
Pad
x32
FTS125
Dimensions
and
Keepout Area
Top View
Soldering and Cleaning Recommendations
Hand solder, leaded wave solder, and lead-free wave solder processes are recommended for attaching the FTS125 after reflow
processes are complete. Since the FTS125 does not have hermetic enclosure, hand cleaning the leads is recommended and the
module should not be completely immersed.
