參數資料
型號： FRL430R
廠商： INTERSIL CORP
元件分類： JFETs
英文描述： 2A, 500V, 2.50 Ohm, Rad Hard, N-Channel Power MOSFETs
中文描述： 2 A, 500 V, 2.5 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-205AF
封裝： HERMETIC SEALED, METAL CAN-3
文件頁數： 2/6頁
文件大?。?/td> 47K
代理商： FRL430R
4-2
Pre-Radiation Electrical Specifications
TC = +25
o
C, Unless Otherwise Specified
PARAMETER
SYMBOL
TEST CONDITIONS
LIMITS
UNITS
MIN
MAX
Drain-Source Breakdown Volts
BVDSS
VGS = 0, ID = 1mA
500
-
V
Gate-Threshold Volts
VGS(th)
VDS = VGS, ID = 1mA
2.0
4.0
V
Gate-Body Leakage Forward
IGSSF
VGS = +20V
-
100
nA
Gate-Body Leakage Reverse
IGSSR
VGS = -20V
-
100
nA
Zero-Gate Voltage
Drain Current
IDSS1
IDSS2
IDSS3
VDS = 500V, VGS = 0
VDS = 400V, VGS = 0
VDS = 400V, VGS = 0, TC = +125
o
C
-
-
-
1
0.025
0.25
mA
Rated Avalanche Current
IAR
Time = 20
μ
s
-
6
A
Drain-Source On-State Volts
VDS(on)
VGS = 10V, ID = 2A
-
5.25
V
Drain-Source On Resistance
RDS(on)
VGS = 10V, ID = 1A
-
2.50
Turn-On Delay Time
td(on)
VDD = 250V, ID = 2A
-
46
ns
Rise Time
tr
Pulse Width = 3
μ
s
-
58
Turn-Off Delay Time
td(off)
Period = 300
μ
s, Rg = 25
-
208
Fall Time
tf
0
≤
VGS
≤
10 (See Test Circuit)
-
54
Gate-Charge Threshold
QG(th)
VDD = 250V, ID = 2A
IGS1 = IGS2
0
≤
VGS
≤
20
1
4
nc
Gate-Charge On State
QG(on)
15
64
Gate-Charge Total
QGM
32
130
Plateau Voltage
VGP
3
14
V
Gate-Charge Source
QGS
3
12
nc
Gate-Charge Drain
QGD
8
32
Diode Forward Voltage
VSD
ID = 2A, VGD = 0
0.6
1.8
V
Reverse Recovery Time
TT
I = 2A; di/dt = 100A/
μ
s
-
1000
ns
Junction-To-Case
R
θ
jc
-
5.0
o
C/W
Junction-To-Ambient
R
θ
ja
Free Air Operation
-
175

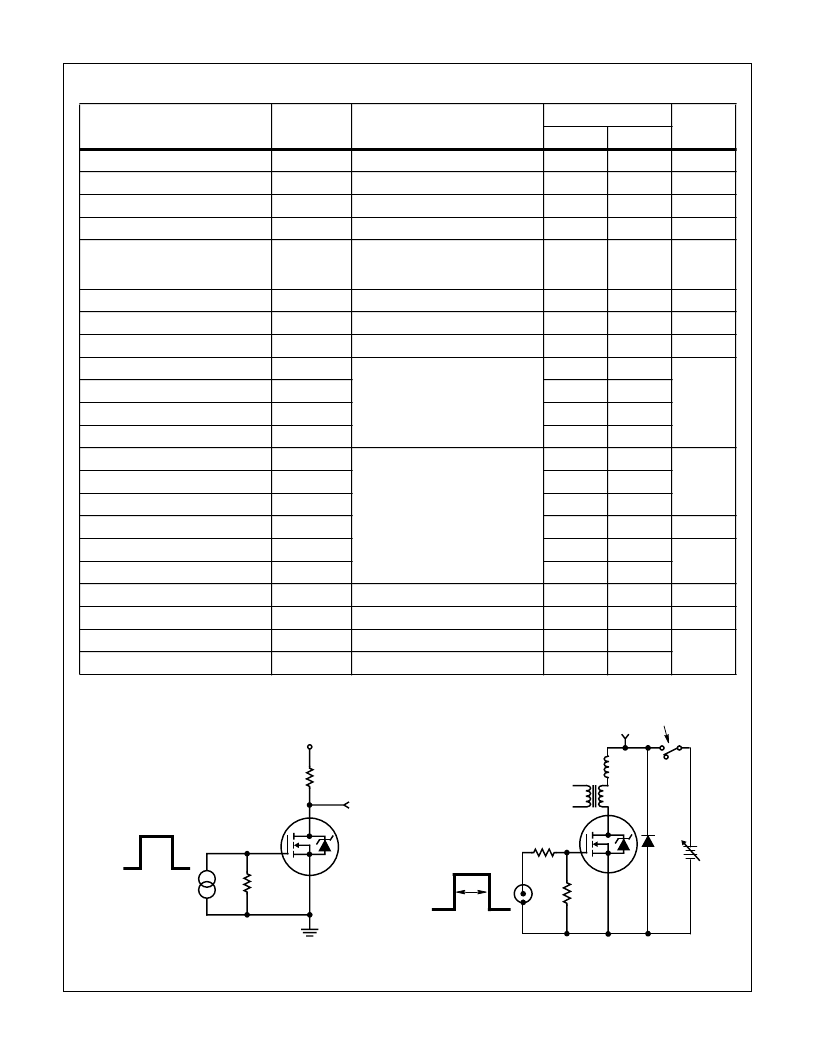

FIGURE 1. RESISTIVE SWITCHING TEST CIRCUIT
FIGURE 2. UNCLAMPED ENERGY TEST CIRCUIT
V
DS
DUT
R
GS
0V
V
GS
= 12V
V
DD
R
L
t
P
V
GS
≤
20V
L
+
-
V
DS
V
DD
DUT
VARY t
P
TO OBTAIN
REQUIRED PEAK I
AS
0V
50
50
50V-150V
I
AS
+
-
ELECTRONIC SWITCH OPENS
WHEN I
AS
IS REACHED
CURRENT
TRANSFORMER
FRL430D, FRL430R, FRL430H
