| 型號： | FMS6366MSA28X |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 消費家電 |
| 英文描述： | Selectable YPbPr HD/SD 4:2:2 Video Filter Driver with Y, C and Composite Outputs |
| 中文描述： | SPECIALTY CONSUMER CIRCUIT, PDSO28 |
| 封裝： | LEAD FREE, SSOP-28 |
| 文件頁數： | 1/7頁 |
| 文件大?。?/td> | 517K |
| 代理商： | FMS6366MSA28X |
REV. 1B September 17, 2004
www.fairchildsemi.com
Y1OUT
INA/N_INB
HD/N_SD
Y1INA
Y1INB
PbINA
PbOUT
PrINA
PrOUT
8MHz, 30MHz
4MHz, 15MHz
PbINB
PrINB
4MHz, 15MHz
6dB
6dB
6dB
YC/N_AUX
Y2IN
Y2OUT
CIN
COUT
AUXIN
0.5V
(Internal)
6dB
6dB
8MHz
CVOUT
8MHz
Features
Pin-compatible version of the FMS6419 for 4:2:2 video
Requires external delay compensation
6th order Standard / High Definition video filters
YPbPr 4:2:2 filters (8/30MHz : 4/15MHz : 4/15MHz)
YC Standard Definition filters (8MHz)
Composite summer output
DC-coupled inputs, AC-coupled outputs
Outputs provide 6dB gain to 150
Dual multiplexed inputs
0.3% differential gain with 0.1° differential phase
5V only
Lead free (Pb-free) packaging
AC-coupled loads
Applications
Cable Set top boxes
Satellite Set top boxes
DVD players
HDTV
Personal Video Recorders (PVR)
Video On Demand (VOD)
Description
The FMS6366 Filter Driver offers comprehensive filtering
for set top box or DVD applications. This part consists of
triple 6th order filters with selectable cutoffs for SD or HD.
The filters are in a 4:2:2 configuration such that Y1 switches
between 8MHz (SD) and 30MHz (HD). The Pb and Pr
channels switch between 4MHz (SD) and 15MHz (HD).
The required delay compensation must be performed in the
digital domain prior to filtering by the FMS6366.
An additional S-video path is provided for SD signals. The
Y2 and C signals are both filtered at 8MHz. A composite
summer is included to provide a composite output based on
Y2 and C.
A 2:1 multiplexer is provided on each filter channel with
separate select lines for the YPbPr and YC signals.
All inputs accept DC-coupled ground referenced 1Vpp input
signals. The filter outputs include +6dB of gain resulting in a
2Vpp signal into an AC-coupled dual video load (75
).
FMS6366
Selectable YPbPr HD/SD 4:2:2 Video Filter Driver
with Y, C and Composite Outputs

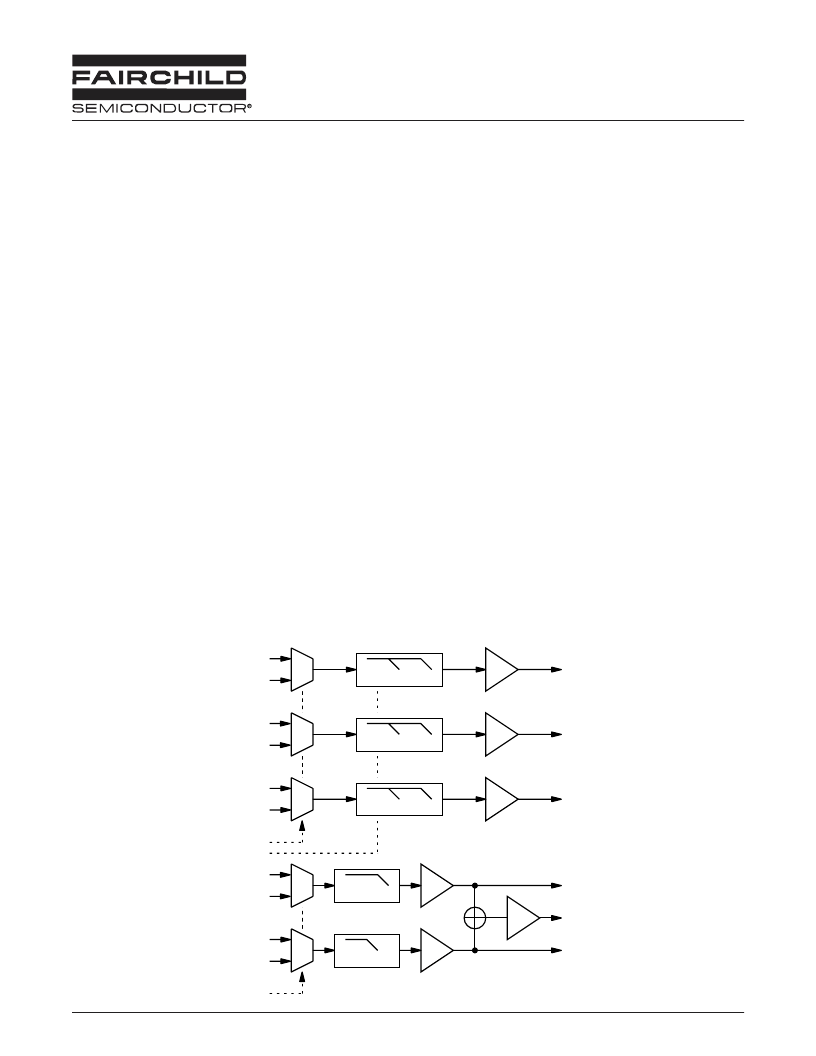

Functional Block Diagram
