參數資料
| 型號： | FMS6346MTC20 |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 消費家電 |
| 英文描述： | Six Channel, 6th Order SD/HD Video Filter Driver |
| 中文描述： | SPECIALTY CONSUMER CIRCUIT, PDSO20 |
| 封裝： | LEAD FREE, MO-153AC, TSSOP-20 |
| 文件頁數： | 2/10頁 |
| 文件大?。?/td> | 92K |
| 代理商： | FMS6346MTC20 |
2
www.fairchildsemi.com
FMS6346 Rev. 1A
F
FAIRCHILD
FMS6346
20L TSSOP
Vcc
SD IN2
SD IN3
SD/HD IN1
SD IN1
FcSEL
1
2
3
4
5
6
7
8
20
19
18
17
16
15
14
13
SD/HD IN2
SD/HD IN3
SD OUT2
SD OUT3
SD/HD OUT1
SD OUT1
SD/HD OUT2
SD/HD OUT3
Gnd
Gnd
9
10
N/C
12
11
N/C
N/C
N/C

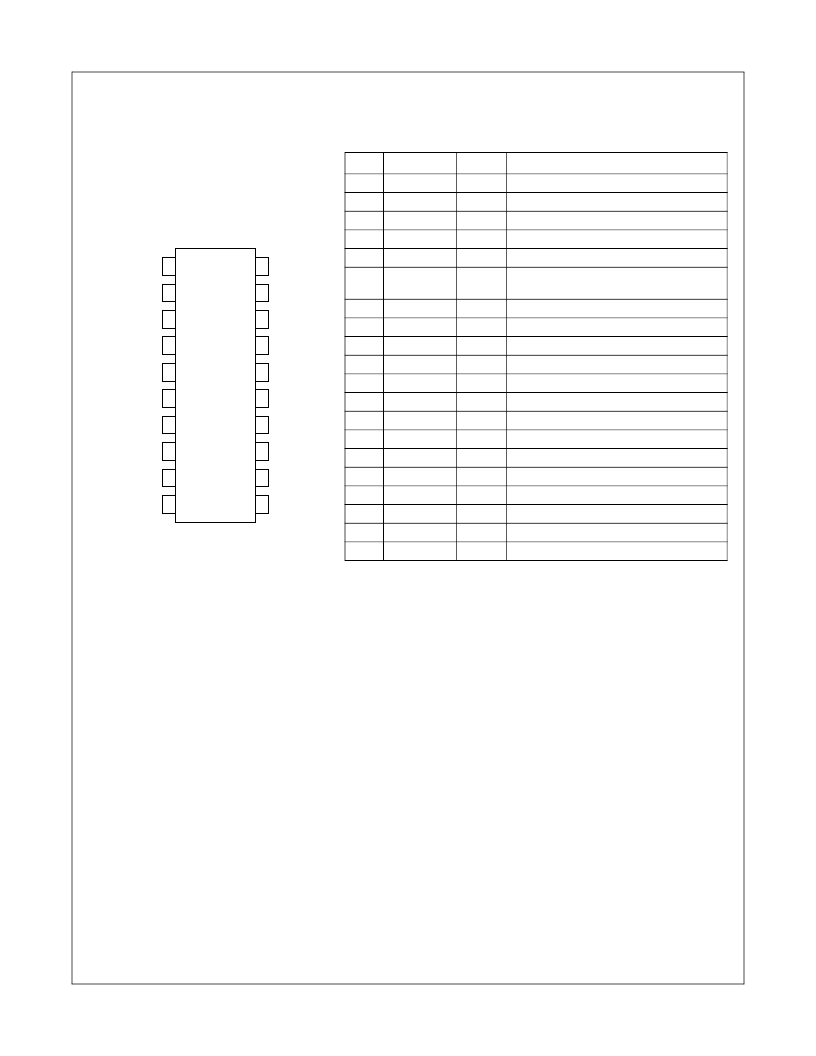

Pin Configuration
Pin Assignments
Pin#
Pin
Type
Description
1
SD IN1
Input
SD video input, channel 1
2
SD IN2
Input
SD video input, channel 2
3
SD IN3
Input
SD video input, channel 3
4
N/C
Input
No Connect
5
Vcc
Input
+5V supply
6
FcSEL
Input
Selects filter corner frequency for pins 7, 8,
and 9. “0” = SD, “1” = HD
7
SD/HD IN1
Input
Selectable SD or HD video input, channel 1
8
SD/HD IN2
Input
Selectable SD or HD video input, channel 2
9
SD/HD IN3
Input
Selectable SD or HD video input, channel 3
10
N/C
Input
No Connect
11
N/C
Input
No Connect
12
SD/HD OUT3
Output
Filtered SD or HD video output, channel 3
13
SD/HD OUT2
Output
Filtered SD or HD video output, channel 2
14
SD/HD OUT1
Output
Filtered SD or HD video output, channel 1
15
N/C
Input
No Connect
16
Gnd
Input
Must be tied to Ground
17
Gnd
Input
Must be tied to Ground
18
SD OUT3
Output
Filtered SD video output, channel 3
19
SD OUT2
Output
Filtered SD video output, channel 2
20
SD OUT1
Output
Filtered SD video output, channel 1
