FA5500AP/AN, FA5501AP/AN
5
Quality is our message

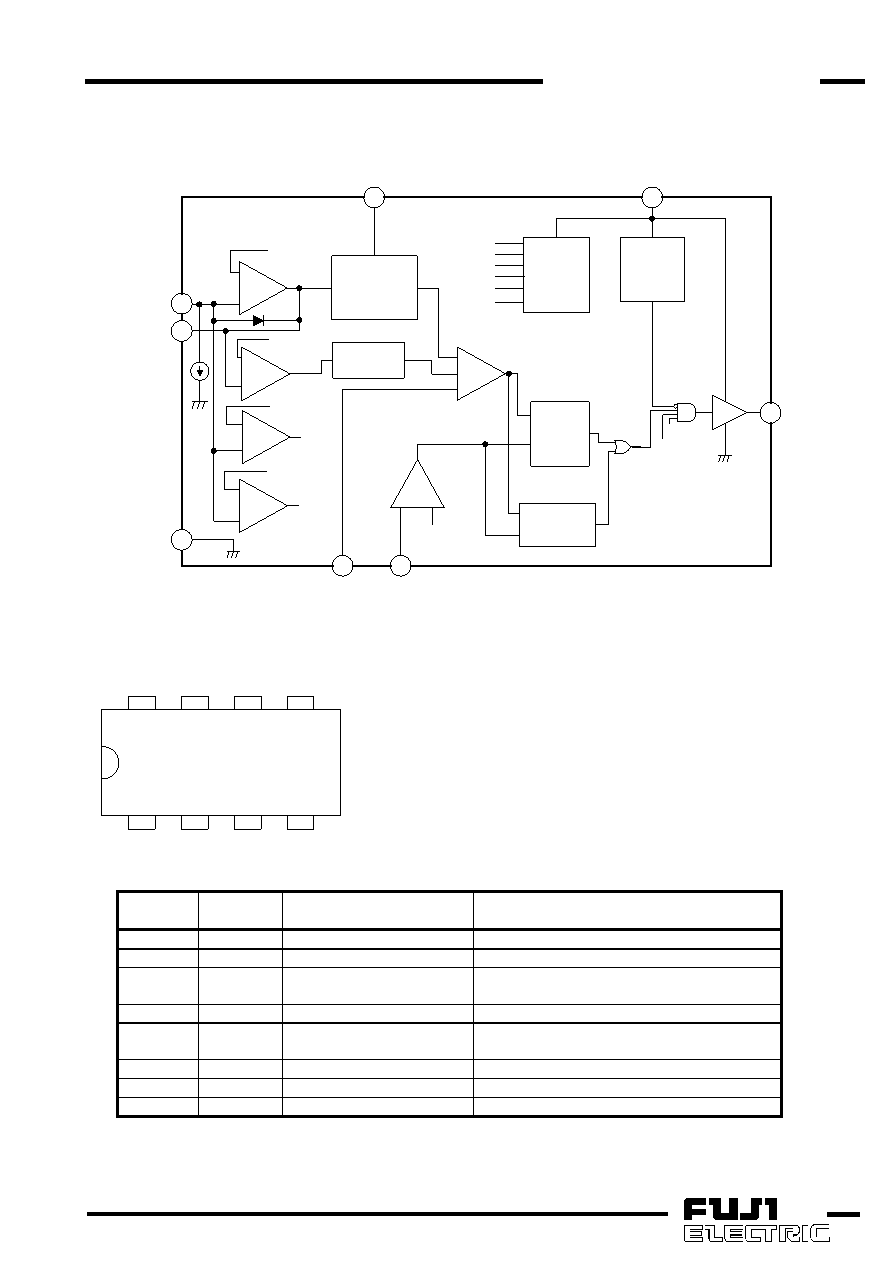

5. Block diagram
7
+
-
8
3
1
5
4
VREF(2.5V)
VOVP(1.09VREF)
VCC
FB
OUT
UVLO
REF
ERRAMP
S
R
Q
VDD(5.0V)
-
+
-
VREF(2.5V)
MUL
VZCD(1.5V/1.33V)
TIMER
ZCD
IS
MUL
VZCD(1.5V/1.33V)
OVP
+
-
VOS(2.0V)
AOC
VOS(2.0V)
VSP(0.3V)
SP
2
COMP
6
GND
VOVP
(1.09VREF)
VSP(0.3V)
OVP
SP
+
-
+
-
R
2.5A
+
6. Pin assignment
1
234
8
765
OUT
VCC
GND
ZCD
FB
COMP
MUL
IS
Pin No.
Pin
symbol
Function
Description
1
FB
Voltage Feedback Input
Input for monitoring PFC output voltage
2
COMP
Compensation
Output of error amplifier
3
MUL
Multiplier Input
Input of multiplier for monitoring sinusoidal
waveform
4
IS
Current Sense Input
Input for sensing MOSFET current signal
5
ZCD
Zero Current Detect Input
Input for detecting that the inductor current
reaches zero
6
GND
Ground
7
OUT
Output
Output for direct driving a power MOSFET
8
VCC
Power Supply
Power supply for IC
