參數資料
型號： EZ480D18S
廠商： CRYDOM CORP
元件分類： 繼電器，輸入/輸出模塊
中文描述： TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX
封裝： ROHS COMPLIANT, PLASTIC PACKAGE-4
文件頁數： 2/5頁
文件大?。?/td> 690K
代理商： EZ480D18S
INPUT SPECIFICATIONS (1)
Description
EZ240D5
EZ240Dxx
EZ480Dxx
EZExxxDxx
EZxxxAxx
EZExxxAxx
Control Voltage Range
4-15 VDC
3-15 VDC
4-15 VDC
15-32 VDC
90-140 Vrms
18-36 Vrms
Minimum Turn-On Voltage
4.0 VDC
3.0 VDC
4.0 VDC
15.0 VDC
90.0 Vrms
18.0 Vrms
Minimum Turn-Off Voltage
1.0 VDC
10.0 Vrms
2.0 Vrms
Typical Input Current @ Nominal Voltage
13 mAdc
15 mAdc
10 mAdc
Nominal Input Impedance
300 Ohm
240 Ohm
1500 Ohm
10.6 k Ohm
1.8 k Ohm
Maximum Turn-On Time [msec] (6)
1/2 Cycle
10
Maximum Turn-Off Time [msec]
1/2 Cycle
40
GENERAL SPECIFICATIONS
Description
Parameters
Dielectric Strength, Input/Output/Base (50/60Hz)(3)
4000 Vrms *
Minimum Insulation Resistance (@ 500 V DC)
109 Ohm
Maximum Capacitance, Input/Output
8 pF
Ambient Operating Temperature Range
-40 to 80 °C
Ambient Storage Temperature Range
-40 to 125 °C
Weight (typical)
1.5 oz (43 g)
Encapsulation
Thermally conductive Epoxy
Terminals
0.25 Inch Faston
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
3) 240V, DC control models only, all others 2500VRMS
4) Heat sinking required, see derating curves.
5) Off- state leakage for snubbered version (suffix S) is 10.0mArms
6) Turn-on time for random turn-on versions is 0.1 msec (DC Control Models).
* 240V, DC control models only

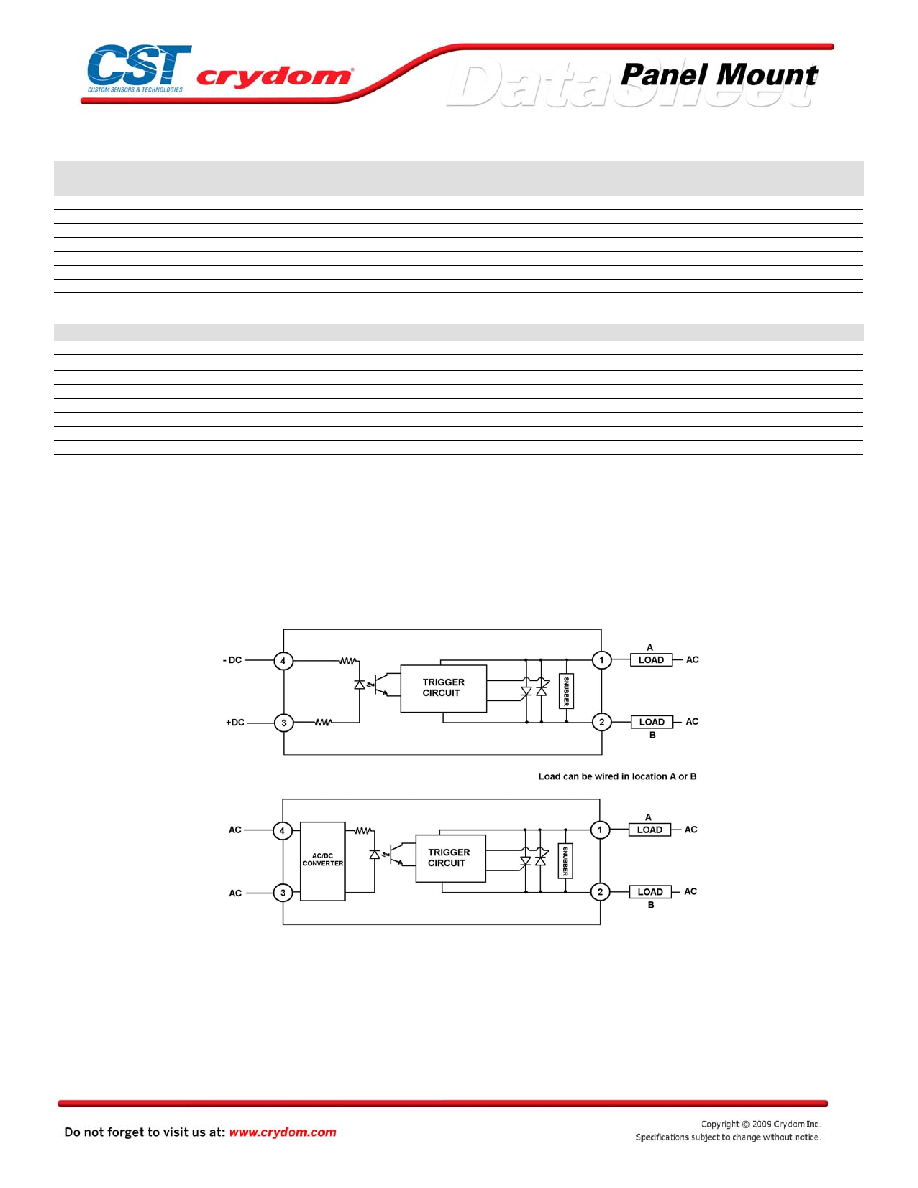

WIRING DIAGRAM
