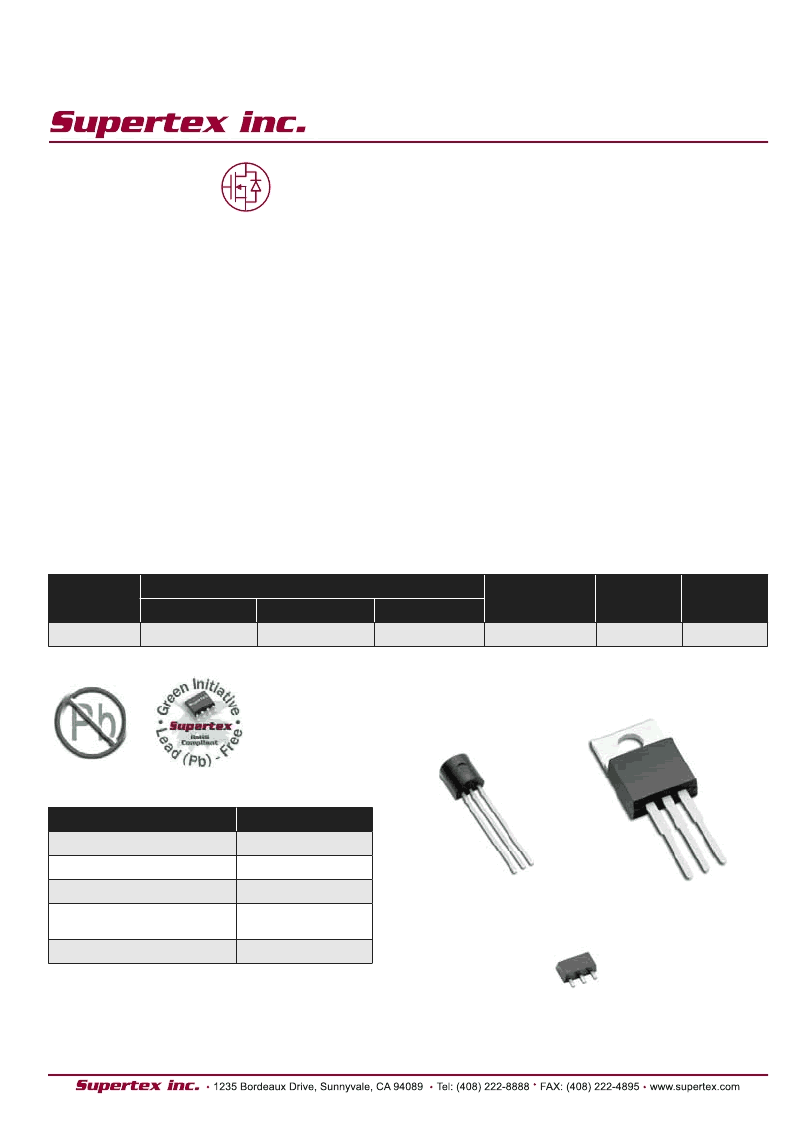

DN2540
Features
High input impedance
Low input capacitance
Fast switching speeds
Low on resistance
Free from secondary breakdown
Low input and output leakage
Applications
Normally-on switches
Solid state relays
Converters
Linear amplifiers
Constant current sources
Power supply circuits
Telecom
General Description
The Supertex DN2540 is a low threshold depletion mode
(normally-on) transistor utilizing an advanced vertical
DMOS structure and Supertex’s well-proven silicon-gate
manufacturing process. This combination produces a device
with the power handling capabilities of bipolar transistors
and with the high input impedance and positive temperature
coefficient inherent in MOS devices. Characteristic of all
MOS structures, this device is free from thermal runaway and
thermally-induced secondary breakdown.
Supertex’s vertical DMOS FETs are ideally suited to a
wide range of switching and amplifying applications where
high breakdown voltage, high input impedance, low input
capacitance, and fast switching speeds are desired.
N-Channel Depletion-Mode
Vertical DMOS FETs
Ordering Information
Device
Package Options
TO-220
DN2540N5-G
BV
DSX
/BV
DGX
(V)
R
DS(ON)
max
(Ω)
25
I
DSS
min
(mA)
150
TO-92
TO-243AA
(1)
DN2540N8-G
DN2540
DN2540N3-G
400
-G indicates package is RoHS compliant (‘Green’)
(1) Same as SOT-89.
Absolute Maximum Ratings
Parameter
Drain-to-source voltage
Drain-to-gate voltage
Gate-to-source voltage
Operating and storage
temperature
Soldering temperature*
Value
BV
DSX
BV
DGX
±20V
-55
O
C to +150
O
C
300
O
C
Absolute Maximum Ratings are those values beyond which damage to the
device may occur. Functional operation under these conditions is not implied.
Continuous operation of the device at the absolute rating level may affect
device reliability. All voltages are referenced to device ground.
*Distance of 1.6mm from case for 10 seconds.
Pin Configurations
3-Lead TO-243AA (N8)
3-Lead TO-220 (N5)
3-Lead TO-92 (N3)
GATE
SOURCE
DRAIN
DRAIN
GATE
SOURCE
DRAIN
GATE
SOURCE
DRAIN
DRAIN
