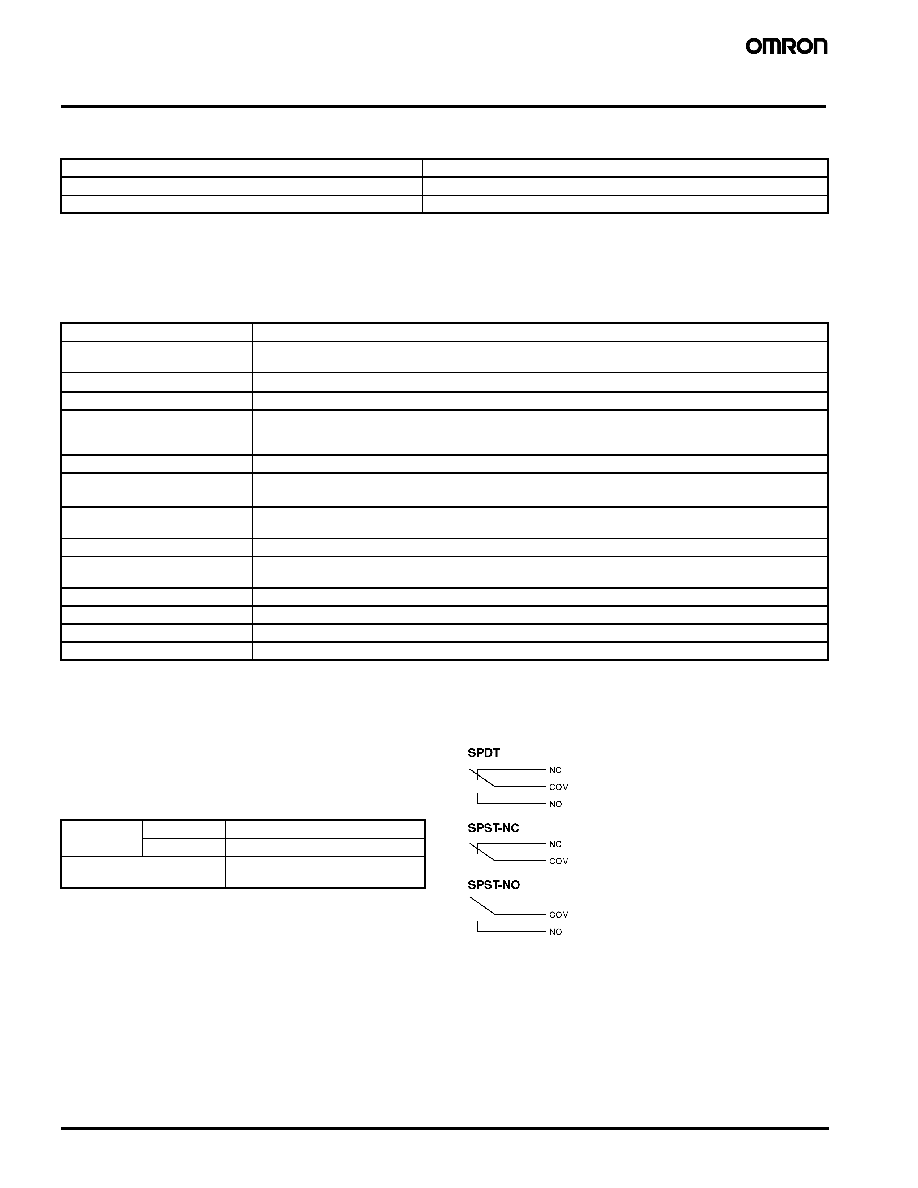

2
Miniature Door Switch
D3D
Specifications
■ Ratings
Note: The ratings on the left were tested under the following conditions.
Ambient temperature:
20
±2° C
Ambient humidity
65
±5%
Operating frequency
20 operations/min
■ Characteristics
Note: 1. The contacts do not open or close for more than 1 ms.
2. Consult your Omron representative for details on test conditions.
■ Approved Standards
UL 1054 (File No. E41515), CSA C22.2 No. 55, cuRus component
recognized, VDE EN 61058-1 (File No. 4000 5053).
■ Contact Specifications
Note: For more information about the minimum applicable load, refer
to “Micro Loads” on page 4.
■ Contact Form
Rated voltage
Resistive load
125 VAC
1 A
250 VAC
0.5 A
Operating speed
7.5 to 500 mm/s
Operating frequency
Mechanical: 120 operations/min
Electrical: 20 operations/min
Insulation resistance
100 M
min. (at 500 VDC)
Contact resistance (initial value)
100 m
max.
Dielectric strength
1,000 VAC. 50/60 Hz for 1 min between terminals of the same polarity
1,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground, and between each terminal
and non-current-carrying metal parts
Vibration resistance
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance
(See note 1)
Destruction: 490 m/s2 max.
Malfunction: 300 m/s2 max.
Durability
(See note 2)
Mechanical: 300,000 operations min. (60 operations/min)
Electrical:
100,000 operations min. (20 operations/min)
Degree of protection
IP00
Degree of protection against
electric shock
D3D-1 models (plunger models): Class II
D3D-2 models (lever models): Class 0
Proof tracking index (PTI)
600
Ambient operating temperature
-30
° C to 60° C (with no icing)
Ambient operating humidity
85% max.
Weight
Approx. 4 g
Contact
Specification
Crossbar
Material
Gold Alloy
Minimum applicable load
(See note)
1 mA at 5 VDC
