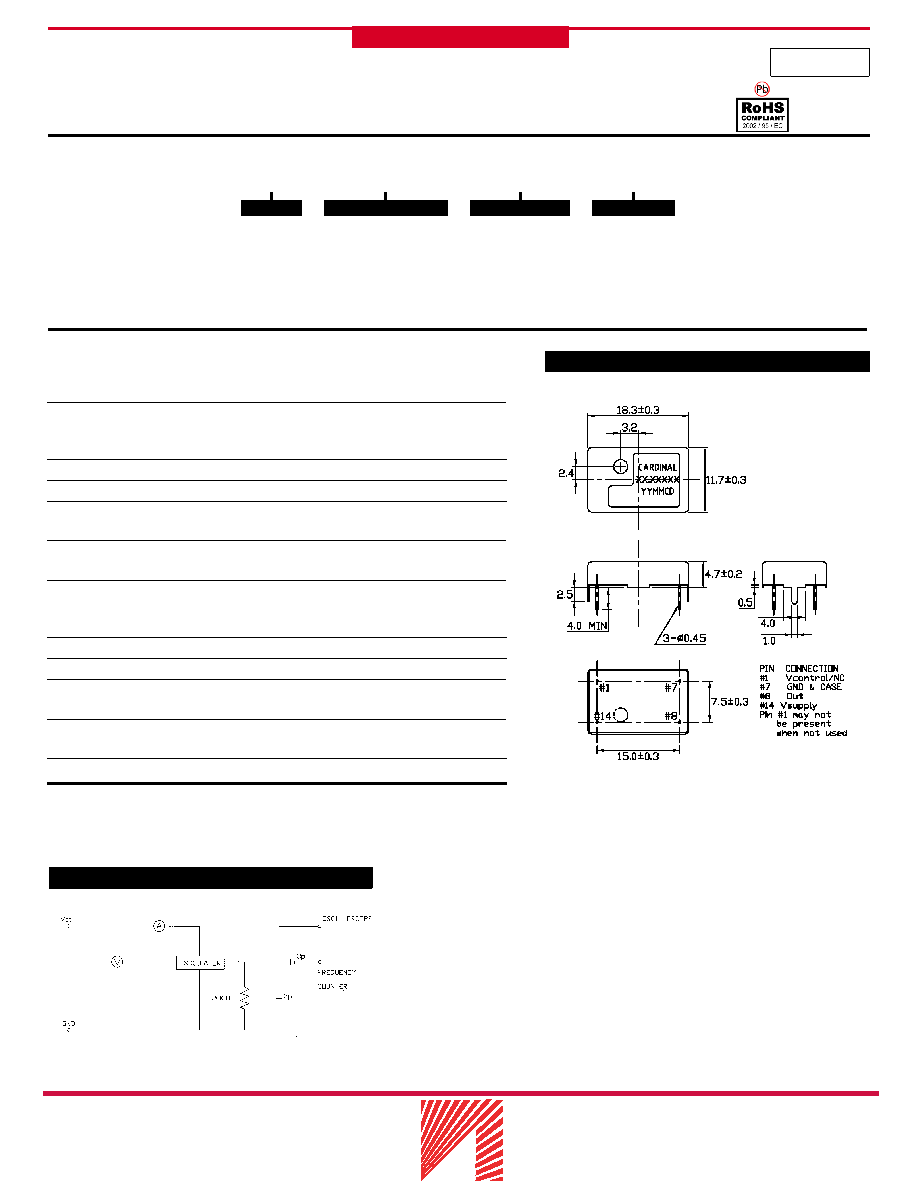

CARDINAL COMPONENTS
CARDINAL COMPONENTS
Thru Hole TCXO
Tight frequency
Stability over temperature with excellent aging
CTCX
Part Numbering Example: CTCX - A3 B3 - 15.360
SERIES
CTCX
CTCX
STABILITY
B1 = ±5.0 ppm
B2 = ±3.0 ppm
B3 = ±2.5 ppm
B3
FREQUENCY
15.360
OPERATING TEMP.
A1=-10°C ~ +50°C
A2=-10°C ~ +60°C
A3=-30°C ~ +75°C
A4=-40°C ~ +75°C
A3
Specifications:
Frequency Range:
4.000 MHz to 25.000 MHz
Available Stability Options: ±5.0 ppm
±2.5 ppm
Standard
±3.0 ppm
Output Series:
Clipped Sine
Input Voltage:
+5.0 VDC ±5%
Operating Temperature
-30°C to +75°C
Standard
Range Options:
-10°C to +60°C
Output Voltage:
1.0 Volt Peak to Peak
Minimum
Frequency Trim Range
±3.0 ppm Minimum
With Externally
Adjustable Trimmer:
Output Load:
10K OHM Parallel with 10 pf
Maximum Input Current:
2.0 mA
Maximum Frequency
±1 ppm/yr
Aging at +25°C:
Freq. Stability Vs. Change
±0.5 ppm
of Input Voltage of ±5%:
Storage Temperature
-40°C to +85°C
Series
TEST CIRCUIT
CTCX
Cardinal Components, Inc.
155 Route 46 West
Wayne, NJ 07470
Rev:
T-090414-12
TEL:
(973)785-1333
E-MAIL: sales@cardinalxtal.com
WEB:
http://www.cardinalxtal.com
T-4
