Recommended Bias Resistor Values for ID = 62 mA
Supply Voltage (V)
5V
6V
7V
8V
10V
12V
Rbias (R1 Description: 0805 1/8W 1%) 15
31
———
—
Rbias (R1 Description: 1206 1/4W 1%)
—
47
63
——
Rbias (R1 Description: 1210 1/2W 5%)
—
100
130
3236 Scott Boulevard, Santa Clara, California 95054
Phone: (408) 986-5060
Fax: (408) 986-5095
CGB7004-SC (-BD)
Advanced Product Information - December 2003
V1.0 (6 of 7)
Ref Designator
Value
Description
Size
C1, C2
1000 pF MCH185A101JK
0805
C3
1.0 F
VITR 1.0 F 25V CER
0805
CAP 0805 X7R 10%
L1
56 nH
Coilcraft 0603 CS 10%
0603
R1
R Bias = (Vs - Vd) / Id
0805 / 1206 / 1210
C4
DNP (Do Not Place)
N/A
Note: Rbias provides DC bias stability over temperature.
2
RF IN
Vs
RF OUT
C1
C2

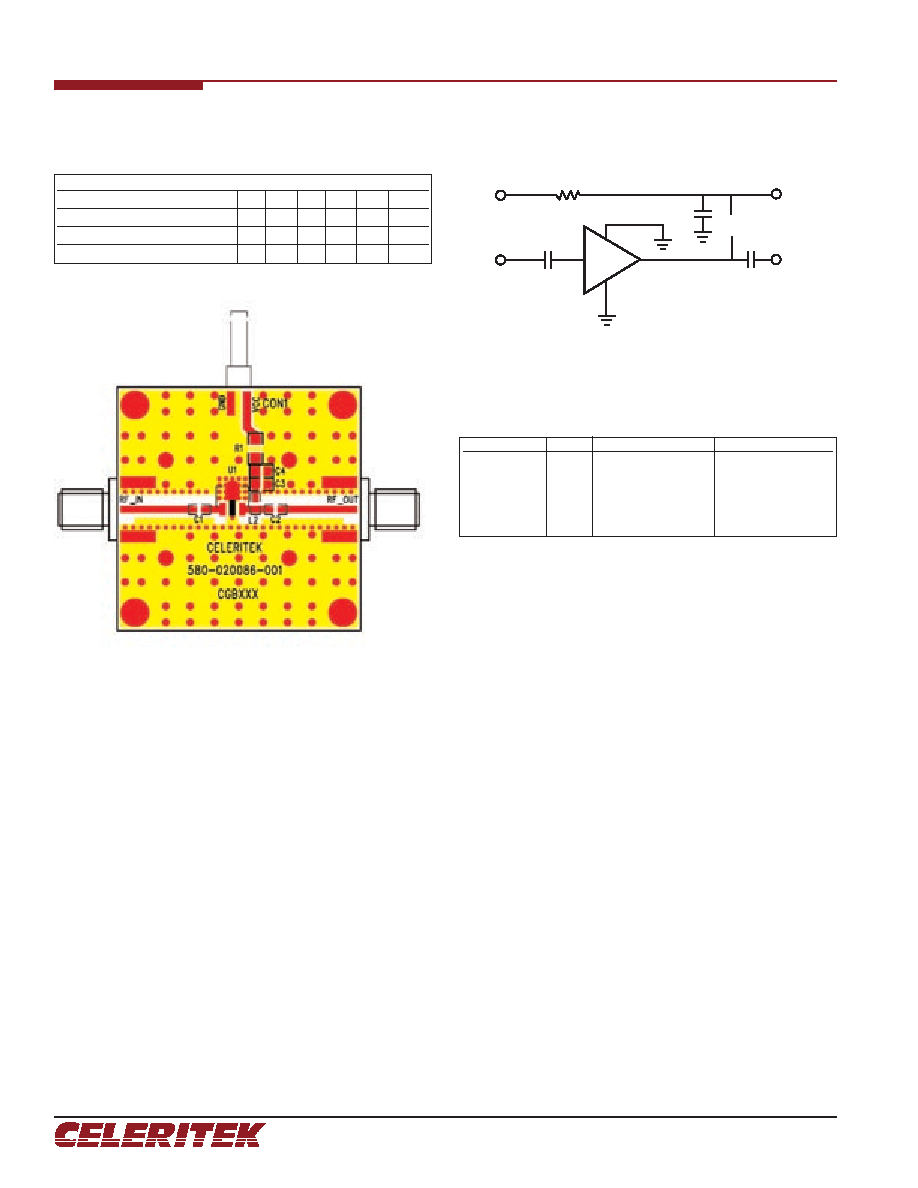

Application Circuit
Note: This schematic represents the topology of the application circuit recommended by Celeritek.
uuuu
L1
R Bias = (Vs - Vd) / Id
4
3
1
Vd
R1
C3
