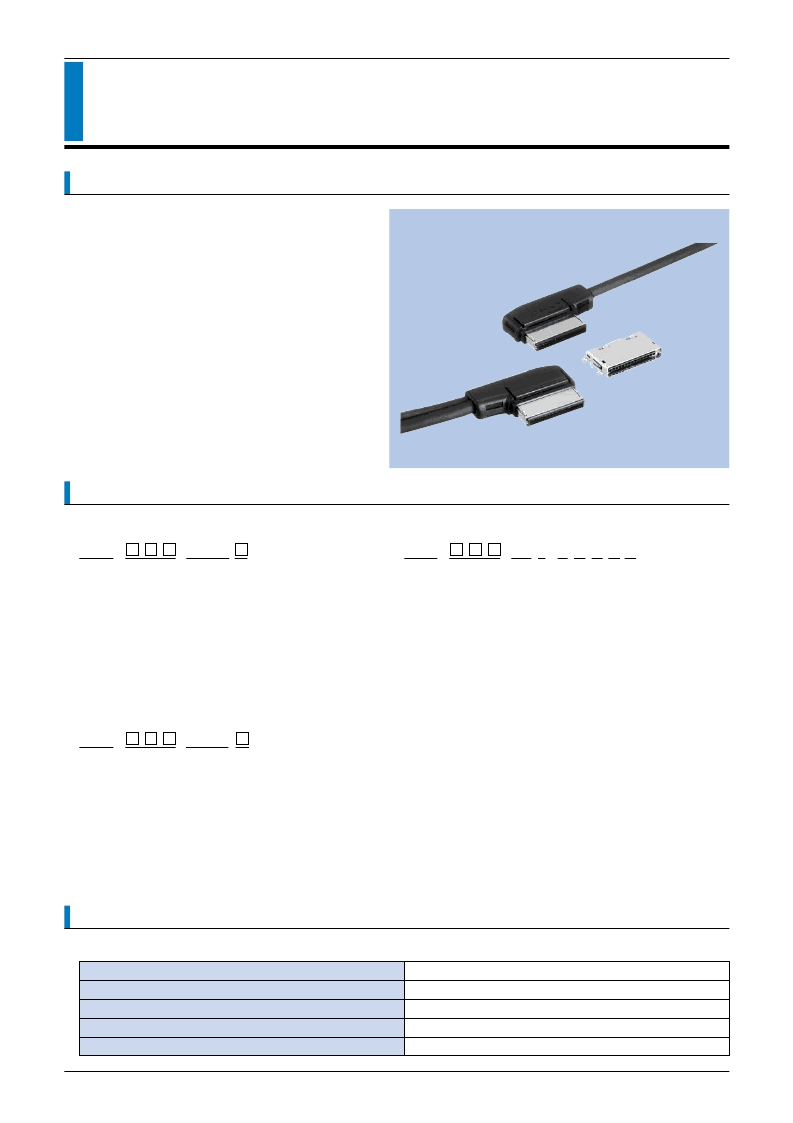

MITSUMI
Rectangular Connectors
IAM-D82·D83, CAM-D84
Connectors
FEATURES
1.These are 15 pins external interface
connectors.
IAM-D82, D83 is a cable assembly plug, and
CAM-D84 is an SMT socket.
2.This long-life connector can withstand 5,000
times coupling/decoupling cycle life and has a
one-touch locking mechanism. It has a thin
style to allow it to be used in low-profile sets.
HOW TO ORDER
SPECIFICATIONS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
24V DC
0.5A
500V AC (rms) 1minute
100M
min. (at 500V DC)
100m
max.
ELECTRICAL CHARACTERISTICS
1. IAM-D82 (Plug)
D82- -9408
1
2
1 Series No. (D82)
2 No. of contacts (013 : 13pins)
3
4
(015 : 15pins)
3 Product Specifications
4 Item
A : 13pins
B : 15pins
3. CAM-D84 (Socket)
D84- -05 0-B G G A A
1
2
3
1 Series No. (D84)
2 No. of contacts (013 : 13pins)
(015 : 15pins)
3 Housing material (05 : Nylon resin)
4 UL Grade (0 : UL 94V-0)
5 Contact pin plating types (B: Gold)
6 Contact pin plating thickness (G : 0.3μm)
7 Contact pin lead profile (G : Angle SMT)
8 Attachment on connector fitting side (A : None)
9 Attachment on connector PCB side (A : None)
4
5 6 7 8 9
2. IAM-D83 (Plug)
D83- -4727
1
2
1 Series No. (D83)
2 No. of contacts (015 : 15pins)
3 Product Specifications
4 Item
A : 13pins
B : 15pins
3
4
CAM-D84(Socket)
IAM-D82 (Plug)
IAM-D83 (Plug)
(4)
(4, 2.8)
