2000 Feb 29
2
Philips Semiconductors
Product specification
High-voltage car ignition diode
BYX133G
FEATURES
Glass passivated
High maximum operating temperature
Low leakage current
Excellent stability
Guaranteed avalanche energy absorption capability.
APPLICATIONS
Car ignition systems
Automotive applications with extreme temperature
requirements.
DESCRIPTION
Rugged glass package, using a high temperature alloyed
construction.
The SOD61AB2 is hermetically sealed and fatigue free as
coefficients of expansion of all used parts are matched.
The package is designed to be used in an insulating
medium such as resin, oil or SF6 gas.
The BYX133G is marked with a brown cathode band on
the body.
handbook, halfpage
a
MBK909

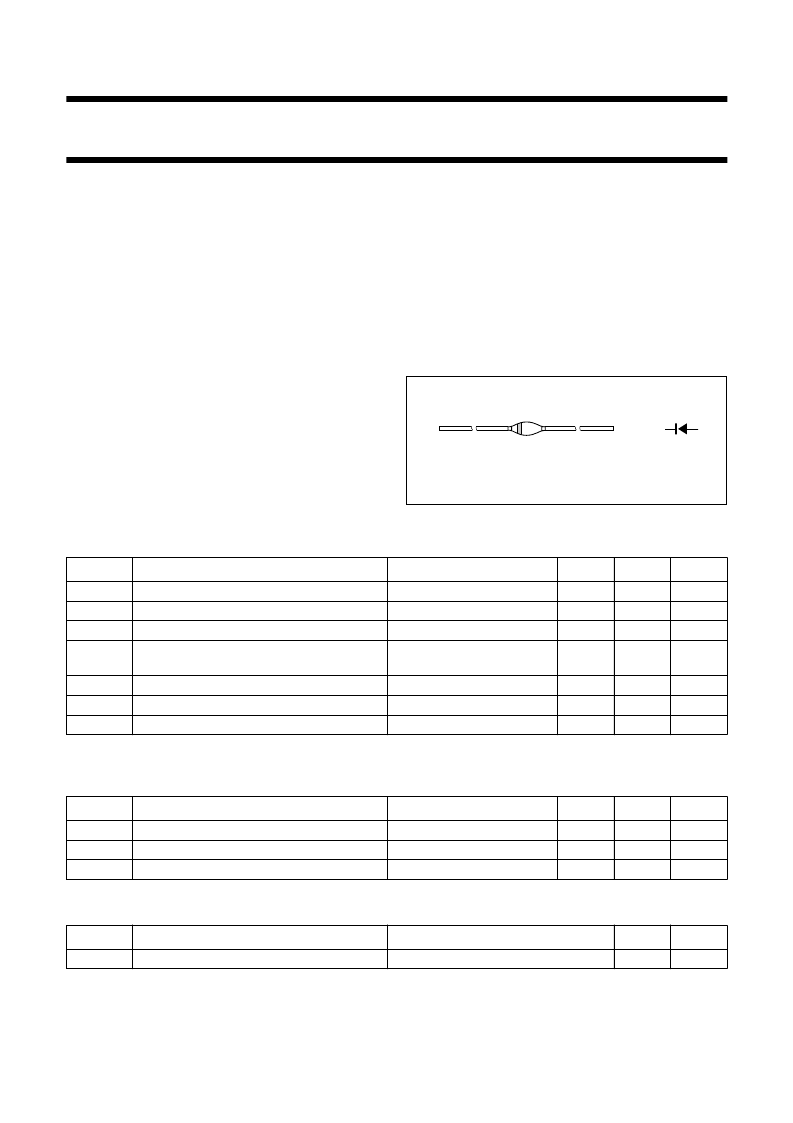

Fig.1 Simplified outline (SOD61AB2) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
CHARACTERISTICS
T
j
= 25
°
C unless otherwise specified.
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
V
RRM
V
RWM
I
F(AV)
I
RSM
repetitive peak reverse voltage
crest working reverse voltage
average forward current
non-repetitive peak reverse current
3
3
50
50
kV
kV
mA
mA
t = 100
μ
s triangular pulse;
T
j max
prior to surge
T
stg
T
j
T
j
storage temperature
junction temperature
junction temperature
65
+200
175
200
°
C
°
C
°
C
continuous
max. 30 min.
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
V
F
V
(BR)R
I
R
forward voltage
reverse avalanche breakdown voltage
reverse current
I
F
= 10 mA
I
R
= 100
μ
A
V
R
= V
RWMmax
; T
j
= 175
°
C
3.75
4
5.25
5.5
30
V
kV
μ
A
SYMBOL
PARAMETER
CONDITIONS
VALUE
UNIT
R
th j-a
thermal resistance from junction to ambient
T
amb
= T
leads
; lead length = 10 mm
90
K/W
