Alliance Semiconductor
2575 Augustine Drive
Santa Clara CA Tel: 408-855-4900 Fax: 408-855-4999 www.alsc.com
rev 1.1
November 2003
ASM3P2111A
Features
Generates an EMI optimized clocking
signal at output.
Input frequency – 25 MHz.
Frequency outputs:
o
60 MHz (unmodulated)
o
2 x 48 MHz (unmodulated)
o
66.6 MHz (modulated) -1.7% down
spread
Modulation rate: 30 KHz.
Supply voltage range 3.3V (± 0.3V).
Available in 8-pin SOIC package.
Commercial and Industrial Temperature
range.
Product Description
The ASM3P2111A is a versatile spread spectrum
frequency
modulator.
The
ASM3P2111A
reduces
electromagnetic interference (EMI) at the clock source.
The ASM3P2111A allows significant system cost savings
by reducing the number of circuit board layers and
shielding that are required to pass EMI regulations. The
ASM3P2111A modulates the output of PLL in order to
spread the bandwidth of a synthesized clock, thereby
decreasing the peak amplitudes of its harmonics. This
results in significantly lower system EMI compared to the
typical narrow band signal produced by oscillators and
most clock generators. Lowering EMI by increasing a
signal’s bandwidth is called spread spectrum clock
generation.
Applications
ASM3P2111A is targeted towards EMI management for
high speed digital applications such as PC peripheral
devices, consumer electronics and embedded controller
systems.

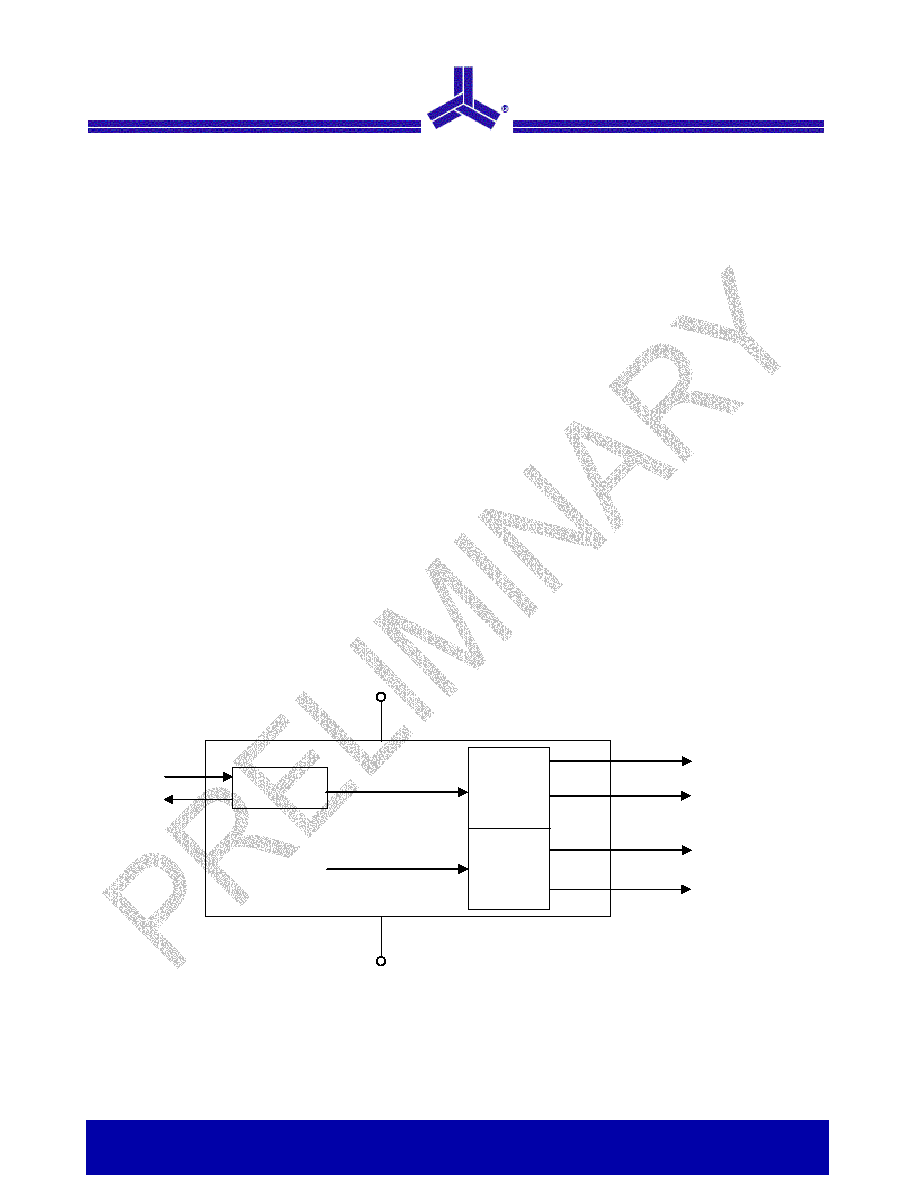

Block Diagram
VDD
Crystal
Oscillator
66.6 MHz
Modulated
XIN
XOUT
VSS
48 MHz_2
60 MHz
48 MHz_1
PLL1
PLL2
48 MHz_1
