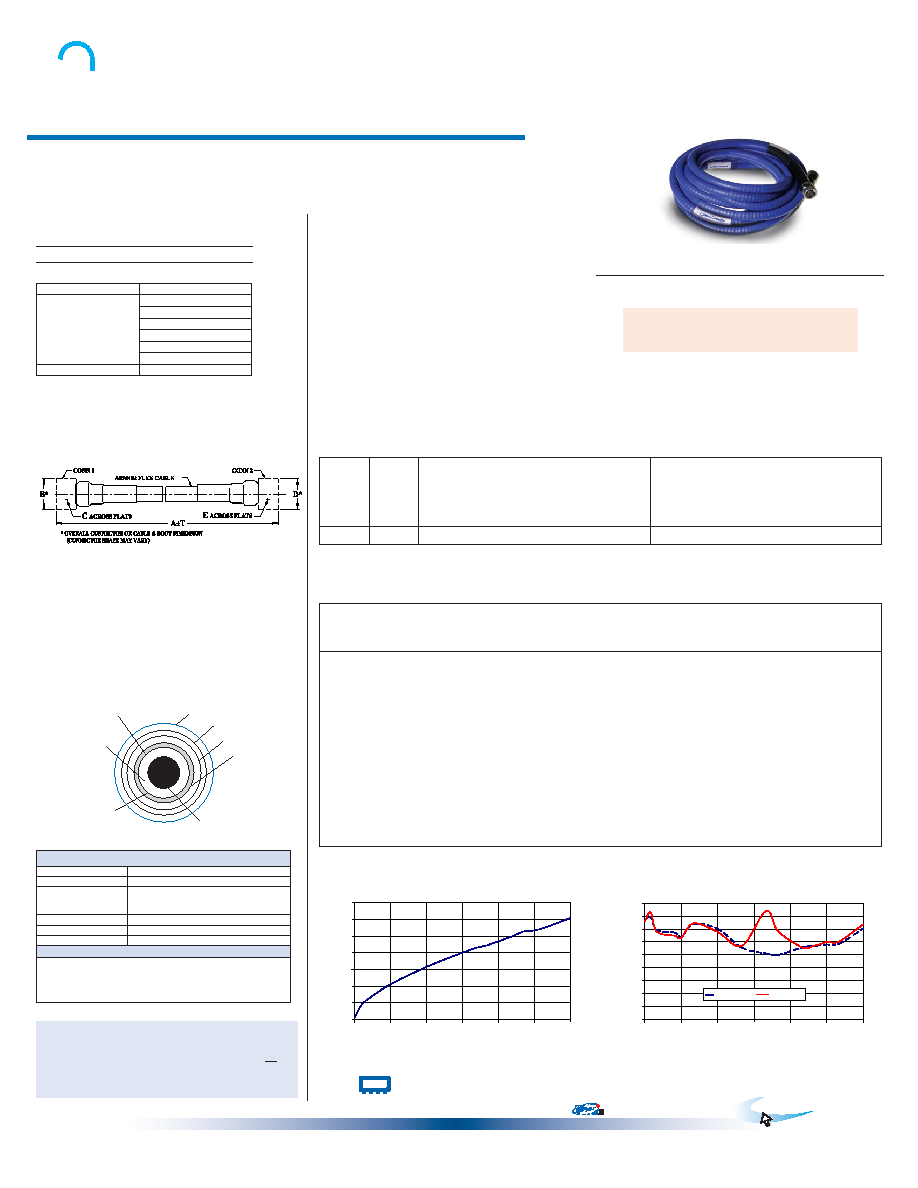

ISO 9001 ISO 14001 AS 9100 CERTIFIED
Mini-Circuits
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 The Design Engineers Search Engine
Provides ACTUAL Data Instantly at
Notes: 1. Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet. 2. Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. 3. The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
For detailed performance specs
& shopping online see web site
minicircuits.com
IF/RF MICROWAVE COMPONENTS
APC-10FT-NMNM+
50
10FT
DC to 18 GHz
ArmoredTest Cable
REV. A
M121372
APC-10FT-NMNM+
JS/BC/CP/AM
091111
Typical Performance Data
Outline Dimensions (
)
inch
mm
Connectors
Model
Price
Qty.
Conn1
Conn2
N-MALE
APC-10FT-NMNM+
$208.95 ea. (1-9)
Features
RoHS compliant
wideband coverage, DC to 18 GHz
extra rugged construction with strain relief for longer life
stainless steel N-Male connectors for long mating-cycle life
useful over temperature range, -55°C to 105°C
triple shield cable for excellent shielding effectiveness
flexible for easy connection & bend radius
superior stability of insertion loss, VSWR & phase vs. flexing
6 month guarantee*
Applications
high volume production test stations
research & development labs
environmental & temperature test chambers
replacement for OEM test port cables
field RF testing
cellular infrastructure site testing
APC-10FT-NMNM+
INSERTION LOSS
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
0
3000
6000
9000
12000
15000
18000
FREQUENCY (MHz)
INSERTION
LOSS
(dB)
Frequency
(MHz)
Insertion Loss
(dB)
Return Loss
(dB)
N-MALE
Maximum Ratings
Operating Temperature
-55°C to 105°C
Storage Temperature
-55°C to 105°C
Outline Drawing
Product Guarantee*
Mini-Circuits will repair or replace your test cable at
its option if the connector attachment fails within six
months of shipment. This guarantee excludes cable
or connector interface damage from misuse or abuse.
Shielding Effectiveness
>100 dB
Power Handling at 25°C
891W Max. at 0.4 GHz
539W Max. at 1 GHz
363W Max. at 2 GHz
180W Max. at 6 GHz
117W Max. at 12 GHz
88W Max. at 18 GHz
Jacket
Clear FEP
APC-10FT-NMNM+
RETURN LOSS
0
5
10
15
20
25
30
35
40
45
0
3000
6000
9000
12000
15000
18000
FREQUENCY (MHz)
R
E
T
U
R
N
L
O
S
(
dB
)
N-MALE
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
CASE STYLE: HW1388-10
Custom sizes available, consult factory.
Electrical Specifications at 25°C
FREQ.
(GHz)
LENGTH
(FT)
INSERTION LOSS
(dB)
RETURN LOSS
(dB)
DC-2.5
GHz
2.5-6
GHz
6-12
GHz
12-18
GHz
DC-2.5
GHz
2.5-6
GHz
6-12
GHz
12-18
GHz
f
L-fU
Typ. Max.
Typ. Min.
DC-18
10
1.9
2.1
3.2
3.8
4.7
5.7
6.3
7.4
30
23
30
20
27
17
22
17
TEST
FLEX
10.00
0.11
38.63
38.04
500.00
0.81
39.50
41.51
1000.00
1.17
34.55
33.94
2500.00
1.92
33.58
32.37
3000.00
2.12
31.86
31.47
4000.00
2.49
36.90
37.18
6000.00
3.16
35.12
33.90
8000.00
3.74
27.82
28.49
10000.00
4.27
25.52
41.99
12000.00
4.70
29.29
32.82
13000.00
4.95
27.95
27.85
14000.00
5.26
28.48
28.61
15000.00
5.34
28.99
29.94
16000.00
5.54
29.20
30.11
18000.00
6.09
35.20
36.80
B
C
D
E
wt
Feet Meters
.88
.750
.88
.750 Feet Meters grams
10
3.05
22.35 19.05 22.35 19.05
0.3
0.09
860
A
T
Cable Construction
Inner Conductor
Solid Silver Plated Copper Clad Steel
Dielectric
Solid PTFE
Shield
Silver-Plated Copper Flat Ribbon Braid
Aluminum-Polymide Tape Interlayer 36 GA
Silver-Plated Copper Braid (90%k)
Armor
Stainless Steel
Braid
Stainless Steel with Copper Wire Winding
Jacket
TPE
Connectors
passivated stainless steel
captive contact
thick wall interface (SMA)
gold plated beryllium copper center contacts
PTFE dielectric
Cable Cross Section
Jacket
Braid
Armor
Outer Shield
Inner Shield
Inner Conductor
Dielectric
Interlayer Shield
Permanent damage may occur if any of these limits are exceeded.
