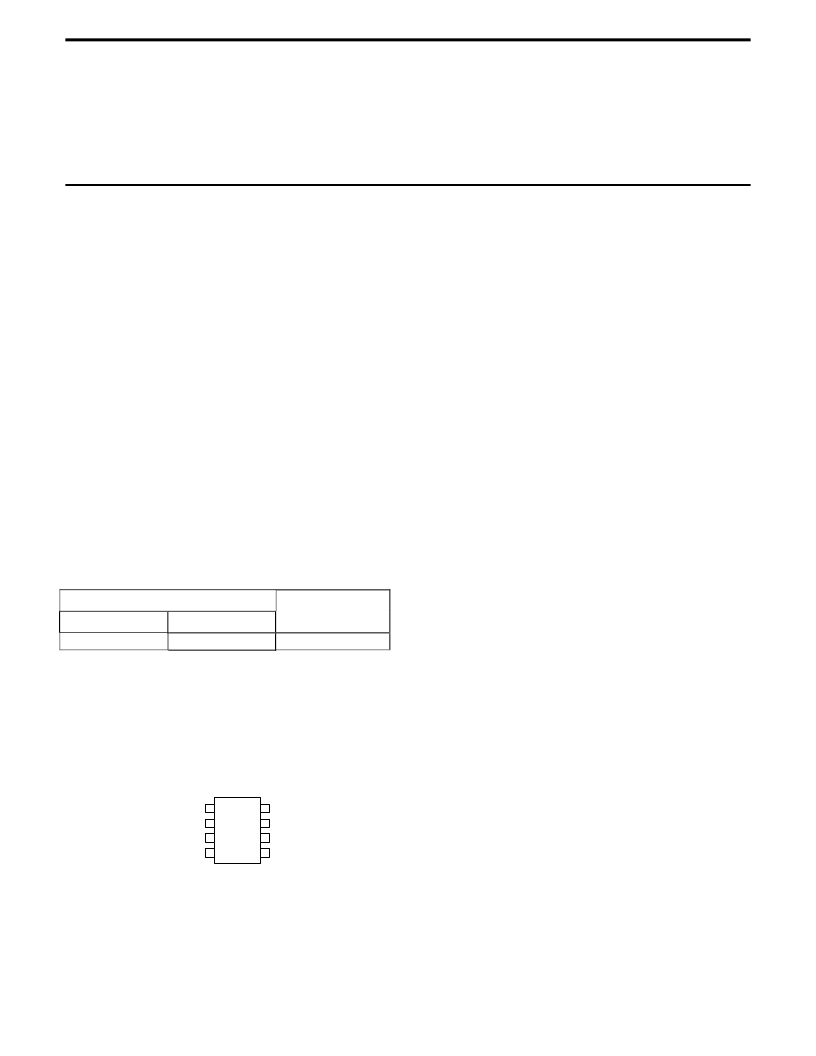

Advanced Monolithic Systems, Inc.
6680B Sierra Lane, Dublin, CA 94568 Phone (925) 556-9090 Fax (925) 556-9140
Advanced
AMS36063
Monolithic
DC-TO-DC CONVERTER CONTROL CIRCUIT
Systems
PRELIMINARY INFORMATION
FEATURES
Wide Input Voltage Operating Range from 2.5V to 60V
Low Standby Current
Current Limiting
Output Switch Current of 1.5A
Output Voltage Adjustable from 1.25 to 40V
Frequency of Operation to 100kHz
Thermal Protection
Enable Input Pin
APPLICATIONS
Step-Up Converter
Step-Down Converter
Voltage Inverting Application
Telephone Circuits
Monitors
Battery Chargers
Portable Equipment
GENERAL DESCRIPTION
The AMS36063 series is a control circuit containing the basic functions required for DC-to-DC converters. The device consists
of an internal temperature compensated reference, a comparator, a controlled duty cycle oscillator with an active current limit
circuit, a driver, a high current output switch, a thermal protection circuit and a converter enable input. Designed specifically to
be incorporated in Step-Up, Step-Down and Voltage -Inverting applications, the AMS36063 requires a minimum number of
external components.
The AMS36063 is available in the 8-lead plastic SOIC and 8-lead plastic DIP packages.
ORDERING INFORMATION
PACKAGE TYPE
8 LEAD PDIP
AMS36063P
OPER. TEMP
RANGE
-40
°
C to +85
°
C
8 LEAD SOIC
AMS36063S
PIN CONNECTIONS
8 LEAD SOIC/ 8 LEAD PDIP
Top View
COMPARATOR
INVERTING
INPUT
SWITCH
COLLECTOR
SWITCH
EMITTER
GND
ENABLE
TIMING
CAPACITOR
V
CC
I
PK
SENSE
1
2
8
4
3
7
5
6
