ADC0841
8-Bit μP Compatible A/D Converter
General Description
The ADC0841 is a CMOS 8-bit successive approximation
A/D converter. Differential inputs provide low frequency input
common mode rejection and allow offsetting the analog
range of the converter. In addition, the reference input can
be adjusted enabling the conversion of reduced analog
ranges with 8-bit resolution.
The A/D is designed to operate with the control bus of a va-
riety of microprocessors. TRI-STATE
output latches that di-
rectly drive the data bus permit the A/D to be configured as
a memory location or I/O device to the microprocessor with
no interface logic necessary.
Features
n
Easy interface to all microprocessors
n
Operates ratiometrically or with 5 V
DC
voltage reference
n
No zero or full-scale adjust required
n
Internal clock
n
0V to 5V input range with single 5V power supply
n
0.3" standard width 20-pin package
n
20 Pin Molded Chip Carrier Package
Key Specifications
n
Resolution:
n
Total Unadjusted Error:
n
Single Supply:
n
Low Power:
n
Conversion Time:
8 Bits
±
1
2
LSB and
±
1 LSB
5 V
DC
15 mW
40 μs

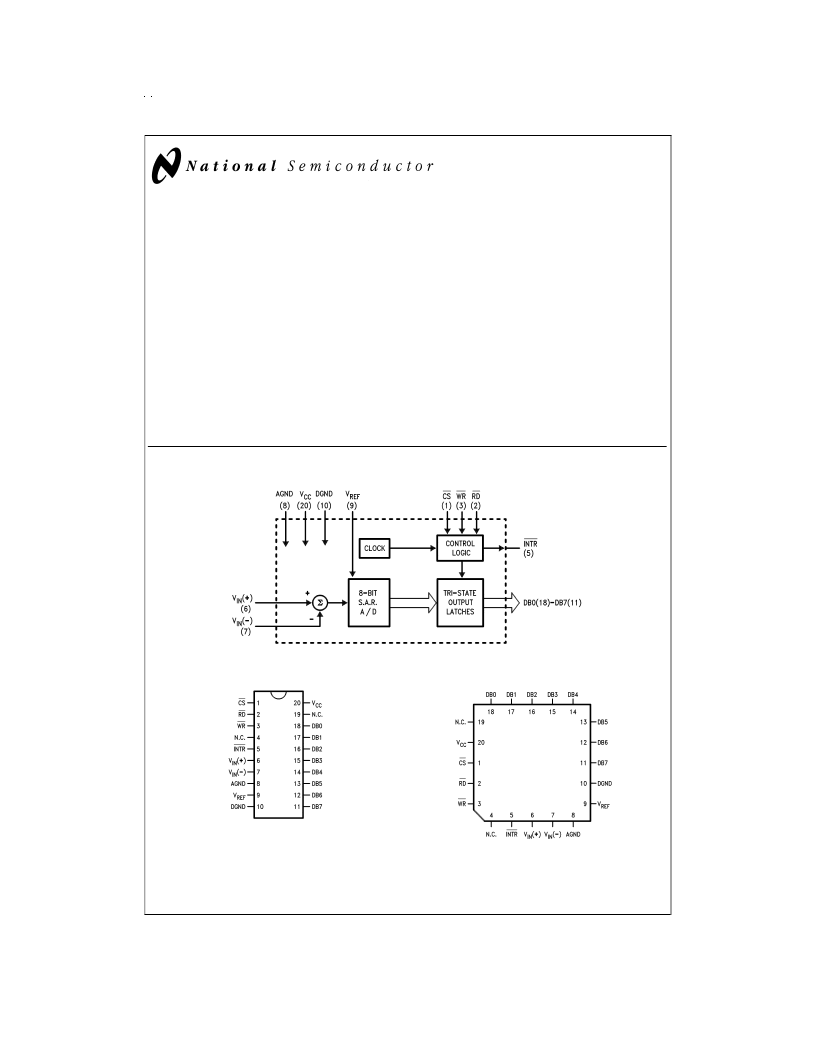

Block and Connection Diagrams
TRI-STATE
is a registered trademark of National Semiconductor Corporation.
NSC800
is a trademark of National Semiconductor Corporation.
DS008557-1
Dual-In-Line Package (N)
DS008557-2
(N.C.-No Connection)
Top View
Molded Chip Carrier Package (V)
DS008557-3
Top View
May 1998
A
8
1999 National Semiconductor Corporation
DS008557
www.national.com
