This information applies to a product which is in development. Specifications are subject to change without notice. Contact factory for most
recent information. Analog Devices Sensitive Material - not to be reproduced or distributed without permission.
Rev. Pr A
a
PERFORMANCE FEATURES
Dual, 10 MSPS minimum sample rate
- Channel-channel matching, +/- .1% gain error
- Channel-channel isolation, >80dB
- DC-Coupled Signal conditioning included
Selectable Bipolar Input Voltage Range
(+/- 0.5V, +/- 1.0V, +/- 2.0V)
Gain flatness up to Nyquist: < 0.2dB
85dB Spurious-Free Dynamic Range
Straight binary output format
3.3 / 5V CMOS-Compatible Output Levels
.75W Per Channel
Industrial and Military Grade
APPLICATIONS
Phased Array Receivers
Communications Receivers
FLIR Processing
Secure Communications
GPS Anti-Jamming Receivers
Multichannel, Multimode Receivers
PRODUCT DESCRIPTION
The AD10410 is a full channel ADC solution with on-module
signal conditioning for improved dynamic performance and
fully matched channel-to-channel performance. The module
includes two wide dynamic range AD9240 ADCs. Each
AD9240 has a dc-coupled amplifier front end including a low
distortion, high bandwidth amplifier, providing a high input
impedance and gain, and driving a single to differential
PRELIMINARY TECHNICAL DATA
AD10410
For current information contact (336) 605-4385
Dual Channel, 14-Bit, 10 MSPS A/D Converter
with Analog Input Signal Conditioning
amplifier. The AD9240s have on-chip track-and- hold cirucutry
and utilize an innovative multipass architecture to achieve 14-bit,
10MSPS performance. The AD10410 uses innovative high-
density circuit design and laser-trimmed thin-film resistor
networks to achieve exceptional matching and performance
while still maintaining excellent isolation, and providing for
significant board area savings.
The AD10410 operates with +/- 5.0V for the Analog signal
conditioning with a separate +5.0V/3.3V supply for the digital
output phase. Each channel is completely independent allowing
operation with independent Encode and Analog Inputs. The
AD10410 also offers the user a choice of Analog Input Signal
ranges to further minimize additional external signal
conditioning, while still remaining general-purpose.
The AD10410 is packaged in a 68-lead Ceramic Gull Wing
Package, footprint compatible with the earlier generation
AD10242 (12-bit, 40 MSPS) and AD10265 (12-bit, 65MSPS).
Manufacturing is done on Analog Devices, Inc. Mil-38534
Qualified Manufacturers Line (QML) and components are
available up to Class-H (-55 to 125C).
PRODUCT HIGHLIGHTS
1. Guaranteed sample rate of 10 MSPS.
2. Input amplitude options, user configurable.
3. Input signal conditioning included; both channels
matched for gain.
4. Fully tested/characterized performance for full channel.
5. Footprint compatible family; 68-pin LCC.

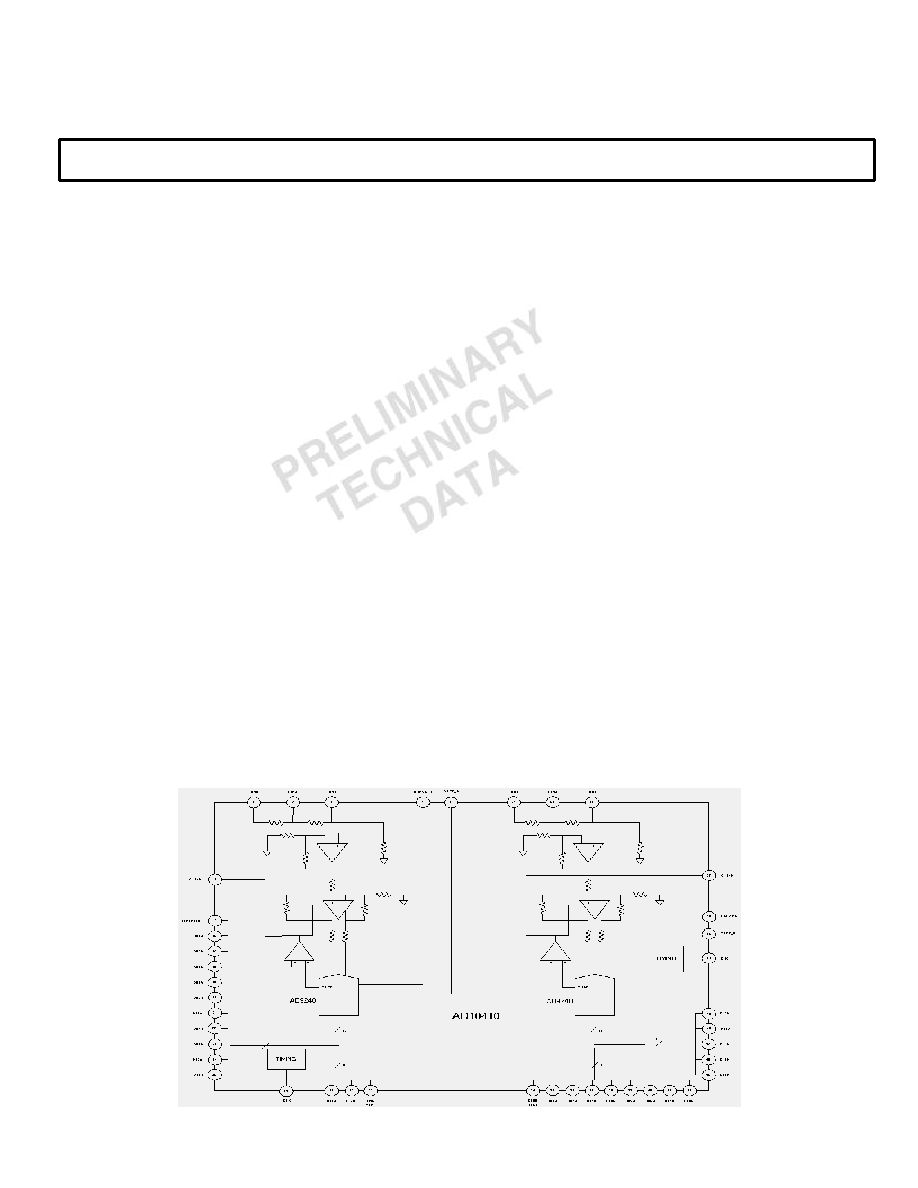

FUNCTIONAL BLOCK DIAGRAM
