1
TM
ACTS280MS
Radiation Hardened 9-Bit Odd/
Even Parity Generator Checker
Features
Devices QML Qualified in Accordance with MIL-PRF-38535
Detailed Electrical and Screening Requirements are Contained in
SMD# 5962-96720 and Intersil’ QM Plan
1.25 Micron Radiation Hardened SOS CMOS
Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)
Single Event Upset (SEU) Immunity: <1 x 10-10 Errors/Bit/Day
(Typ)
SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm2/mg
Dose Rate Upset . . . . . . . . . . . . . . . . >1011 RAD (Si)/s, 20ns Pulse
Dose Rate Survivability . . . . . . . . . . . >1012 RAD (Si)/s, 20ns Pulse
Latch-Up Free Under Any Conditions
Military Temperature Range . . . . . . . . . . . . . . . . . . -55oC to +125oC
Significant Power Reduction Compared to ALSTTL Logic
DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V
Input Logic Levels
- VIL = 0.8V Max
- VIH = VCC/2 Min
Input Current
≤ 1A at VOL, VOH
Fast Propagation Delay . . . . . . . . . . . . . . . . 24ns (Max), 16ns (Typ)
Description
The Intersil ACTS280MS is a Radiation Hardened 9-bit odd/even parity
generator checker device. Both odd and even parity outputs are avail-
able for generating or checking parity for words up to 9 bits long. Even
parity is indicated (EVEN output high) when an even number of data
inputs are high. Odd parity is indicated (ODD output high) when an odd
number of data inputs are high. Parity checking for larger words can be
accomplished by tying EVEN output to any input of an additional
ACTS280MS.
The ACTS280MS utilizes advanced CMOS/SOS technology to achieve
high-speed operation. This device is a member of a radiation hardened,
high-speed, CMOS/SOS Logic Family.
The ACTS280MS is supplied in a 14 lead Ceramic Flatpack (K suffix) or
a Ceramic Dual-In-Line Package (D suffix).
January 1996

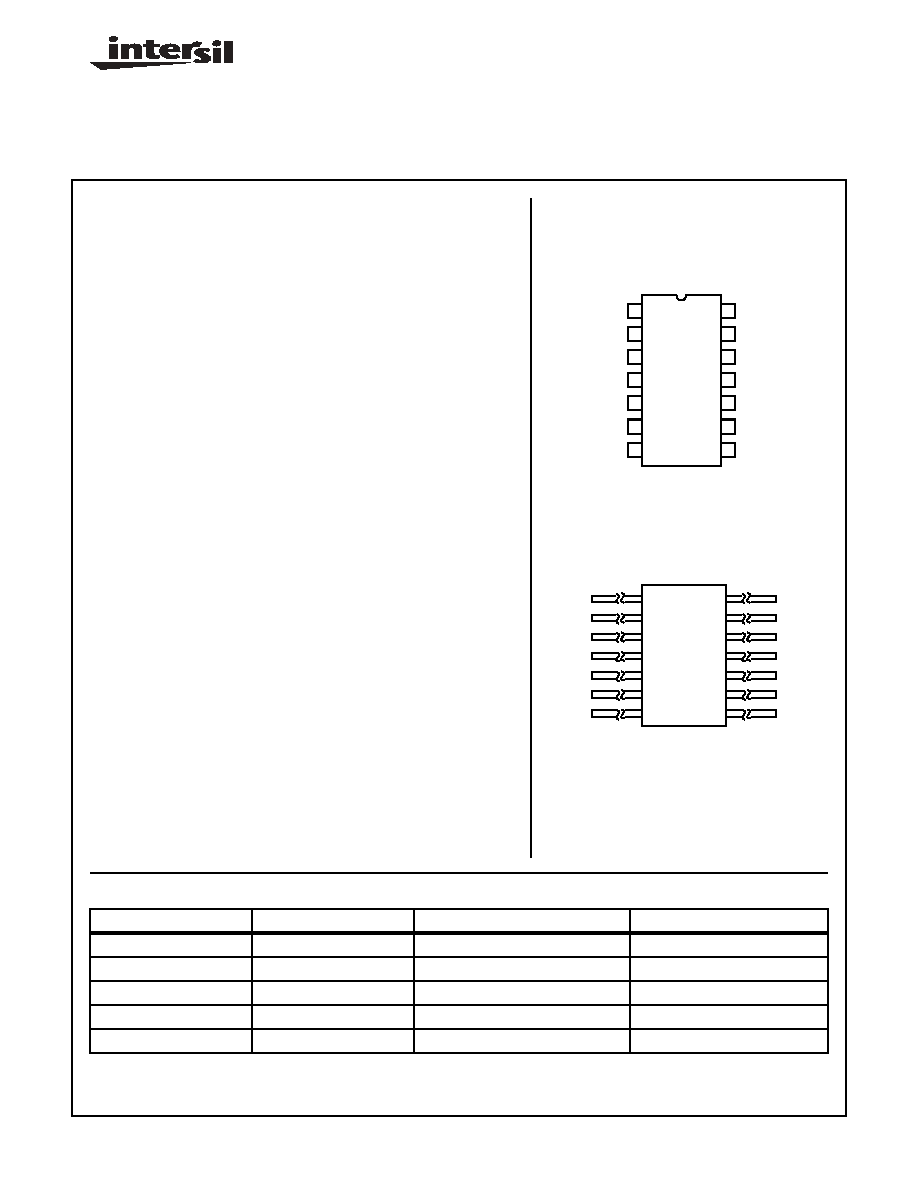

Pinouts
14 PIN CERAMIC DUAL-IN-LINE
MIL-STD-1835 DESIGNATOR, CDIP2-T14,
LEAD FINISH C
TOP VIEW
14 PIN CERAMIC FLATPACK
MIL-STD-1835 DESIGNATOR, CDFP3-F14
LEAD FINISH C
TOP VIEW
I6
I7
NC
I8
EVEN
ODD
GND
VCC
I5
I4
I3
I2
I1
I0
1
2
3
4
5
6
7
14
13
12
11
10
9
8
14
13
12
11
10
9
8
2
3
4
5
6
7
1
I6
I7
NC
I8
EVEN
ODD
GND
VCC
I5
I4
I3
I2
I1
I0
Ordering Information
PART NUMBER
TEMPERATURE RANGE
SCREENING LEVEL
PACKAGE
5962F9672001VCC
-55
oC to +125oC
MIL-PRF-38535 Class V
14 Lead SBDIP
5962F9672001VXC
-55oC to +125oC
MIL-PRF-38535 Class V
14 Lead Ceramic Flatpack
ACTS280D/Sample
25oC
Sample
14 Lead SBDIP
ACTS280K/Sample
25
oC
Sample
14 Lead Ceramic Flatpack
ACTS280HMSR
25oCDie
Die
Spec Number
518827
FN3569.1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
| Intersil (and design) is a trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2002. All Rights Reserved
