參數資料
| 型號： | ACTS08DMSR |
| 廠商： | INTERSIL CORP |
| 元件分類： | Gate |
| 英文描述： | ACT SERIES, QUAD 2-INPUT AND GATE, CDIP14 |
| 封裝： | SIDE BRAZED, DIP-14 |
| 文件頁數： | 6/8頁 |
| 文件大?。?/td> | 79K |
| 代理商： | ACTS08DMSR |

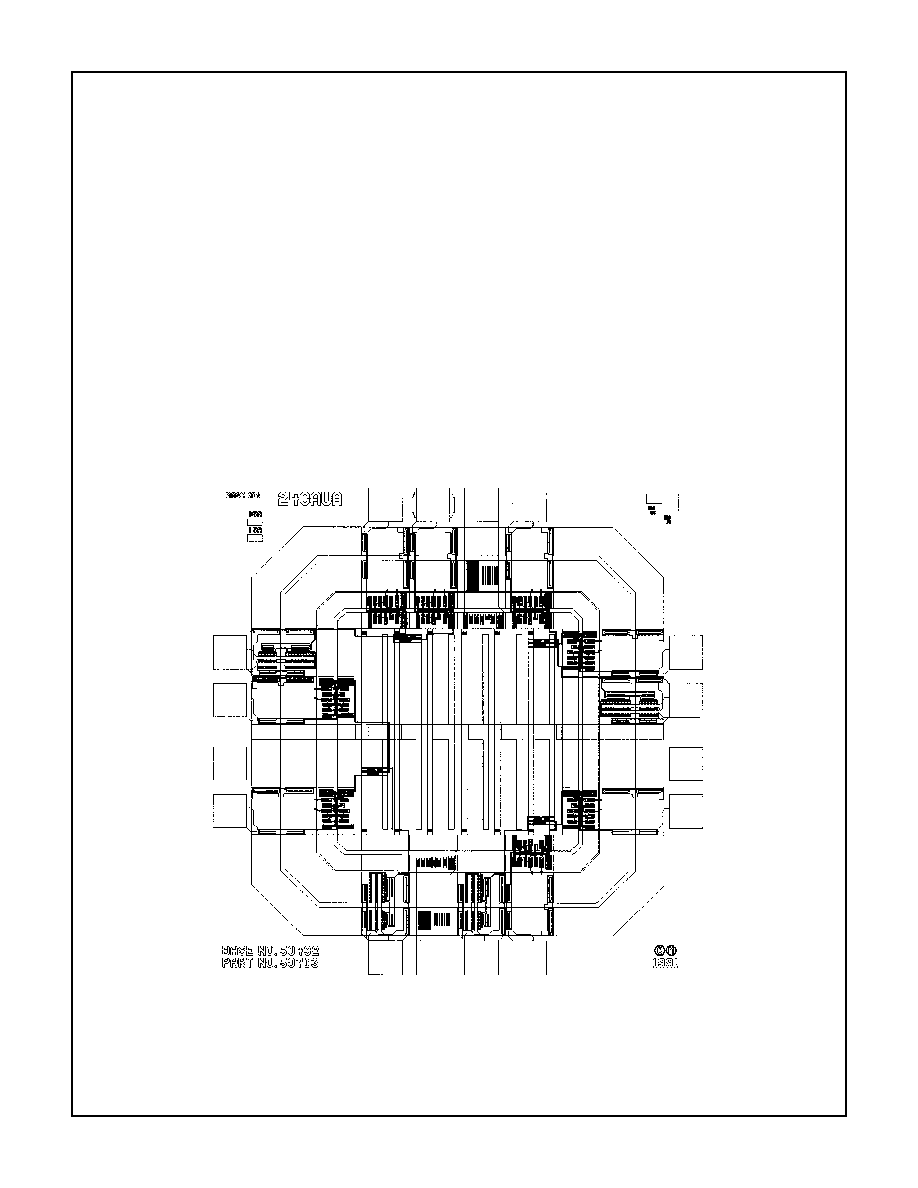

6
ACTS08MS
Metallization Mask Layout
ACTS08MS
(6)
(9)
Y2
A3
A1
VCC
B4
(1)
(14)
(13)
(10) B3
(12) A4
Y1 (3)
A2 (4)
B2 (5)
B1
(2)
NC
(8)
Y3
(11) Y4
NC
GND
(7)
Spec Number
518851
Die Characteristics
DIE DIMENSIONS:
88 mils x 88 mils
2.24mm x 2.24mm
METALLIZATION:
Type: AlSiCu
Metal 1 Thickness: 6.75k
(Min), 8.25k (Max)
Metal 2 Thickness: 9k
(Min), 11k (Max)
GLASSIVATION:
Type: SiO2
Thickness: 8k
±1k
DIE ATTACH:
Material: Silver Glass or JM 7000 Polymer after 7/1/95
WORST CASE CURRENT DENSITY:
< 2.0 x 105A/cm2
BOND PAD SIZE:
> 4.3 mils x 4.3 mils
> 110
m x 110m
