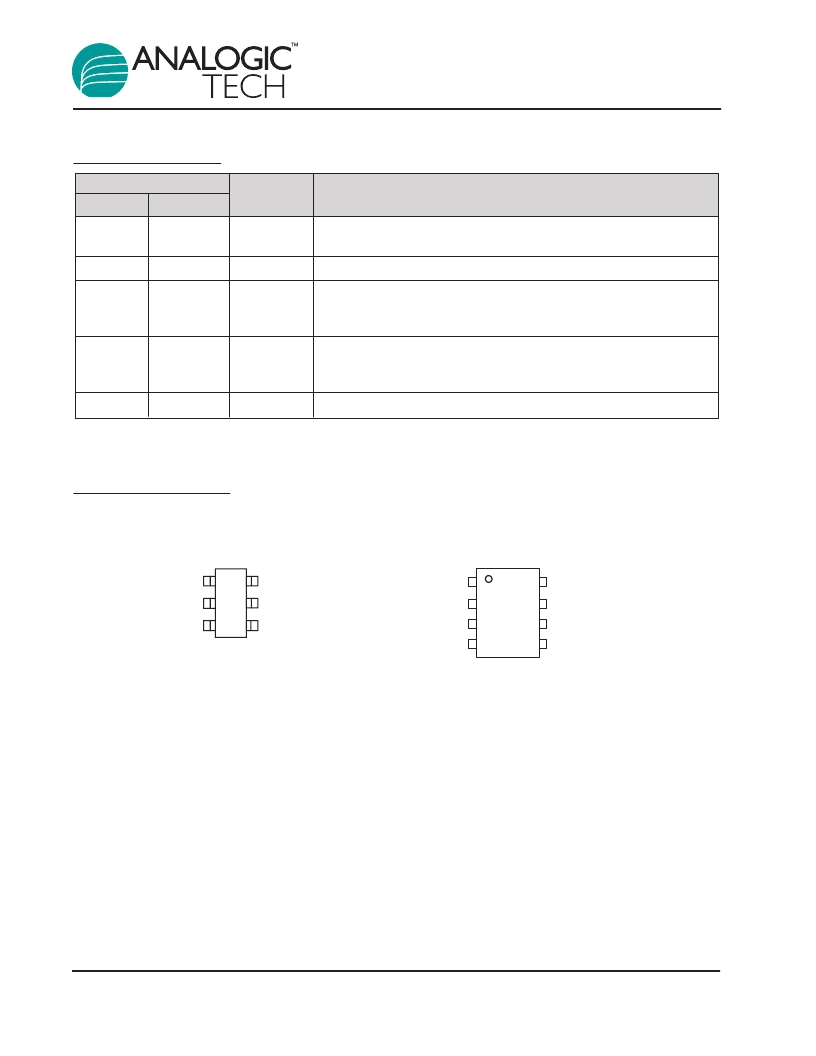

AAT3238
300mA MicroPower High Performance LDO
2
3238.2004.01.0.94
Pin Descriptions
Pin Configuration
SOT23-6
(Top View)
SC70JW-8
(Top View)
OUT
OUT
OUT
GND
EN
IN
IN
BYP
1
2
3
4
8
7
6
5
1
2
3
BYP
EN
OUT
GND
4
6
5
GND
IN
Pin #
Symbol
Function
SOT23-6
SC70JW-8
1
5, 6
IN
Input voltage pin - should be decoupled with 1μF or greater
capacitor.
2, 5
8
GND
Ground connection pin
3
7
EN
Enable pin - this pin should not be left floating. When pulled low
the PMOS pass transistor turns off and all internal circuitry
enters low-power mode, consuming less than 1μA.
4
1
BYP
Bypass capacitor connection - to improve AC ripple rejection,
connect a 10nF capacitor to GND. This will also provide a soft
start function.
6
2, 3, 4
OUT
Output pin - should be decoupled with 2.2μF ceramic capacitor.
