| 型號： | AA8622AP |
| 廠商： | Electronic Theatre Controls, Inc. |
| 元件分類： | 運動控制電子 |
| 英文描述： | Dual Video Amplifier |
| 中文描述： | 雙視頻放大器 |
| 文件頁數： | 1/5頁 |
| 文件大?。?/td> | 218K |
| 代理商： | AA8622AP |
2005/7/5
1
Agamem Electronics Inc.
AA8622AP
PRELIMINARY
DESCRIPTION
AA8622AP is a dual video amplifier with 6db gain, 75
output buffer and SAG
correction. The 75
buffer is capable of driving two circuits. The SAG could
reduce the output coupling capacitor. The power saving circuit provides the
power saving function. The IC is available in 8-pin TSSOP package .
FEATURES
1.
Composite video driver with 6dB gain
2.
Dual channels video amplifier
3.
Output short circuit protection function
4.
SAG correction function
5.
A load sufficient for driving two circuits
6.
Low operating current, 25mA typical
7.
Internal voltage clamp circuit
8.
8-pin TSSOP package

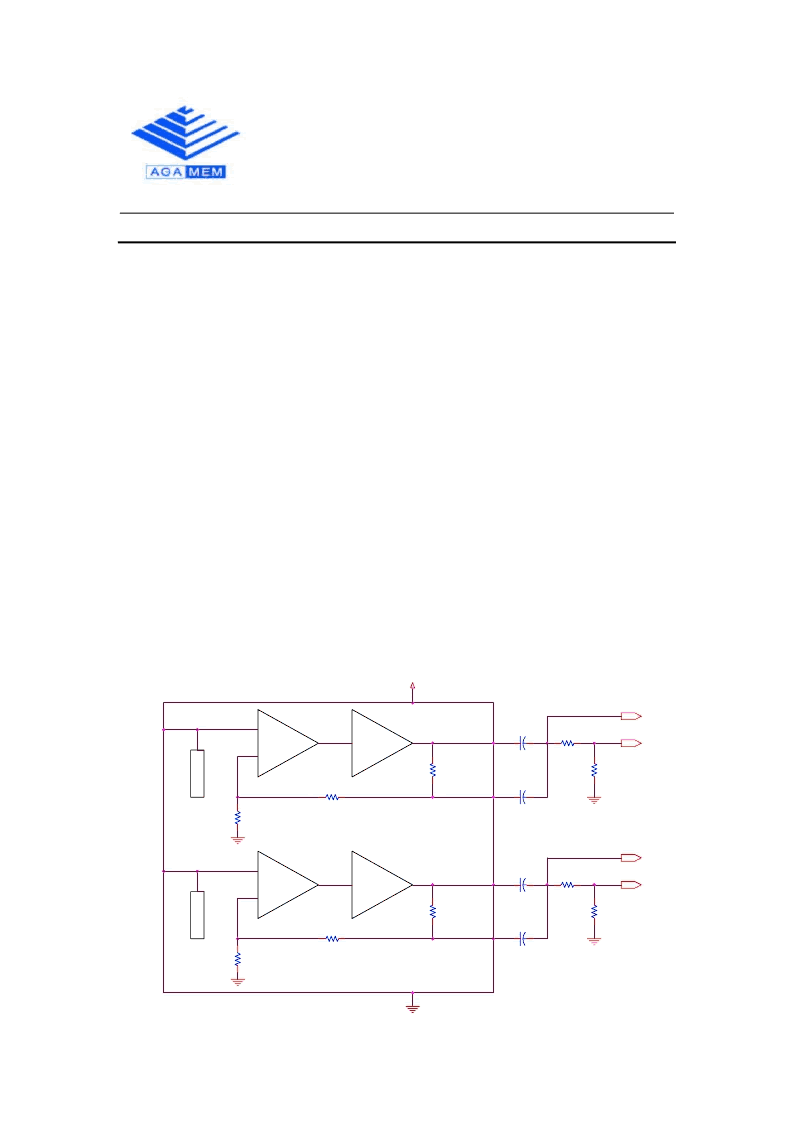

AA8622AP BLOCK DIAGRAM
Dual Video Amplifier
Vcc
750
2.0K
2.2K
100uF
22uF
75
75
750
100uF
22uF
2.2K
75
75
2.0K
Vout2
Vout2
(6dB)
Vout1
Vout1
(6dB)
C
Amp
Driver
5
6
Vin2
Vout2
Vsag2
8
C
Amp
Driver
4
3
Vin1
Vout1
Vsag1
1
7
2
APPLICATION
VCR
Video Camera
TV
Video Player
