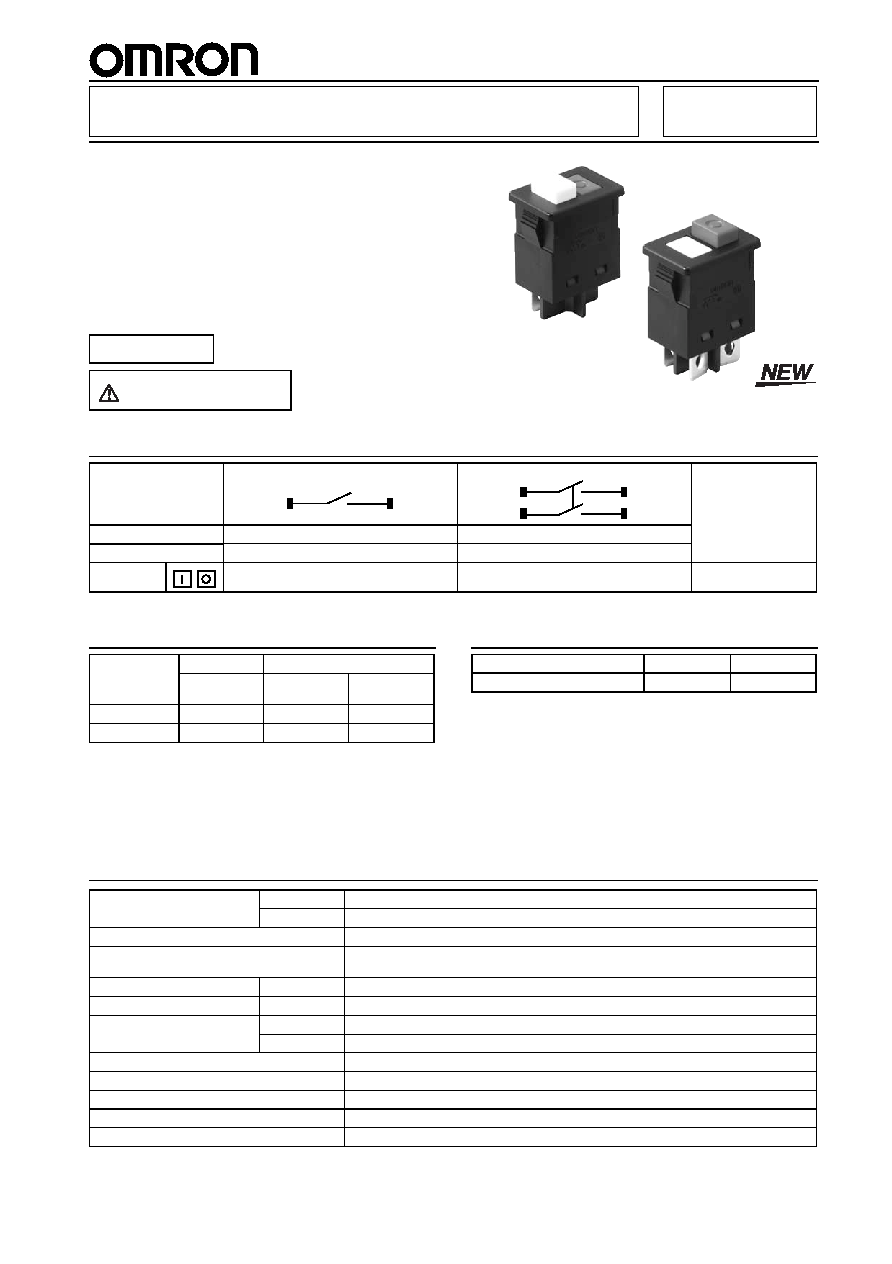

1
A8N
Miniature Rocker Switch
2 Push Button Switch for High Current
Switching
■ Miniature Rocker Switch can be switching 16A.
■ Easy to mount by snap fitting.
■ Dust & waterproof construction.
Panel seal (IP67).
■ UL, cUL and TV-8 standard approved.
Conforms to EN standards.
Ordering Information
Ratings
Note: 1. The inductive load has a power factor of 0.7 minimum (AC).
2. The motor load has an impulse current 6 times the normal current.
3. The above ratings were tested under the following conditions:
(1) Ambient temperature: 20
±2 °C
(2) Ambient humidity: 65
±5 %RH
(3) Switching frequency: 7 times/min.
Operating Characteristics
Specifications
RoHS Compliant
(Refer to page 3 for details)
Caution
Refer to Precautions
Contact configuration
SPST
DPST
Quantity per package
Color of button
White/Red
Color of cases
Black
Marking on
caps
A8NS-3162
A8ND-3162
100
2
3
2
3
5
6
Non-inductive
Inductive
Rated load
Resistive load
Inductive load
Inductive
motor load
125 VAC
16A
10A
250 VAC
16A
10A
No. of poles
1
2
OF (operating force)
9 N max.
22 N max.
Permissible operating
frequency
Mechanical
20 Operations / min max.
Electrical
7 Operations / min max.
Insulation resistance
100 M
Ω min. (500 VDC)
Dielectric strength
2000 VAC 50/60Hz, for 1min between terminals of the same polarity
4000 VAC 50/60Hz, for 1min between terminal and case ground.
Vibration resistance
Malfunction
10 to 55 Hz, 1.5-mm double amplitude
Shock resistance
Malfunction
1000 m/s2 max.
Life expectancy
Mechanical
50,000 Operations min.
Electrical
10,000 Operations min.
Ambient operating temperature
- 25 to 55
°C humidity 60 %RH max. (With no icing or dewing)
Ambient operating humidity
25 to 85 %RH (for 15 to 35
°C)
Ambient storage temperature
- 40 to 85
°C (With no icing or dewing)
Ambient storage humidity
25 to 85 %RH
Weight
9.6 g (1 pole), 11.1 g (2 poles)
