Engineering samples available on a limited basis. Contact your local
sales or applications support office for additional information.
Description
The A1152, A1153, A1155, and A1156 comprise a family of
two-wire, unipolar, Hall-effect switches, which are factory-
trimmed to optimize magnetic switchpoint accuracy. These
devices are produced on the Allegro advanced BiCMOS
wafer fabrication process, which implements a patented high
frequency, 4-phase, chopper-stabilization technique. This
technique achieves magnetic stability over the full operating
temperature range, and eliminates offsets inherent in devices
with a single Hall element that are exposed to harsh application
environments.
The A115x family has a number of automotive applications.
These include sensing seat track position, seat belt buckle
presence, hood/trunk latching, and shift selector position.
Two-wire unipolar switches are particularly advantageous in
cost-sensitive applications because they require one less wire
for operation versus the more traditional open-collector output
switches. Additionally, the system designer inherently gains
diagnostics because there is always output current flowing,
which should be in either of two narrow ranges. Any current
level not within these ranges indicates a fault condition.
A1152-DS, Rev. 1
Features and Benefits
High speed, 4-phase chopper stabilization
Low switchpoint drift throughout temperature range
Low sensitivity to thermal and mechanical stresses
On-chip protection
Supply transient protection
Reverse battery protection
On-board voltage regulator
3.0 to 24 V operation
Solid-state reliability
Robust EMC and ESD performance
Industry leading ISO 7637-2 performance through use of
proprietary, 40-V clamping structures
Chopper-Stabilized, Two Wire Hall-Effect Switches
Continued on the next page…

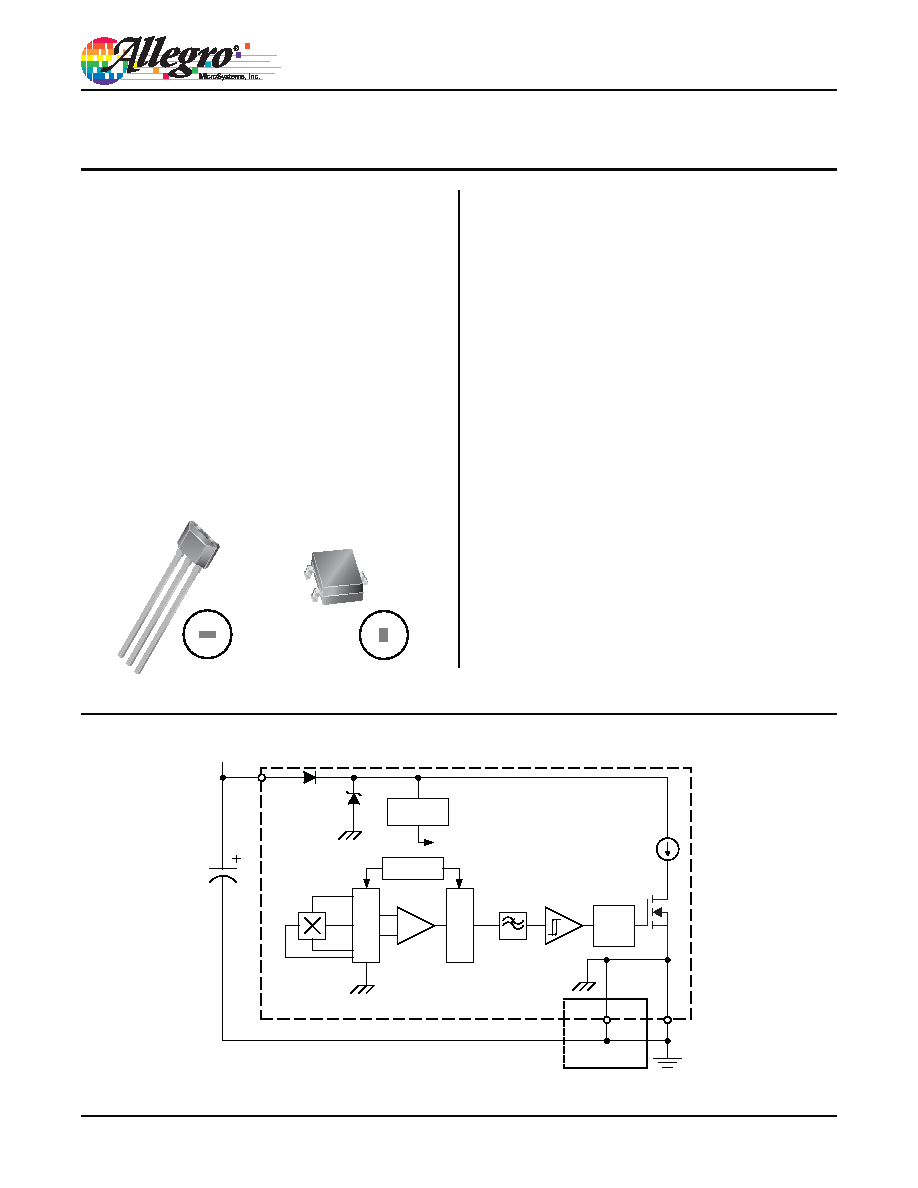

Functional Block Diagram
A1152, A1153, A1155, and A1156
Packages
Approximate scale
3-pin SOT23-W
2 mm × 3 mm × 1 mm
(suffix LH)
3-pin ultramini SIP
1.5 mm × 4 mm × 3 mm
(suffix UA)
Amp
Regula
To all subcircuits
tor
Schmitt
Trigger
Polarity
Low-Pass
Filter
GND
VCC
GND
UA package only
0.01 μF
V+
Clock/Logic
Dyna
mic
O
ffse
t
Ca
nce
lla
tion
S
am
ple
and
H
old
