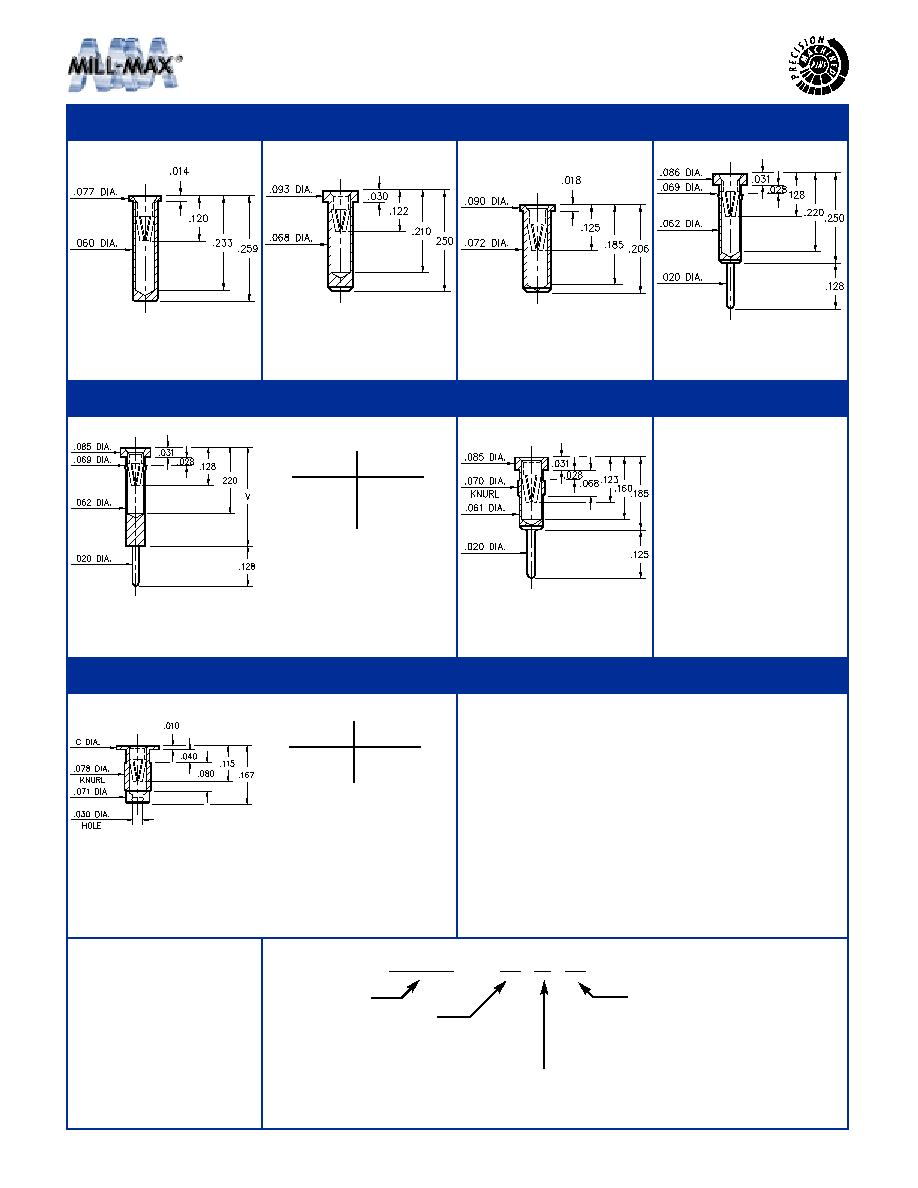

SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 1X - XX - 06 - XX - XX - 0
BASIC PART #
SPECIFY CONTACT FINISH:
SPECIFY SHELL FINISH:
01 200
" TIN/LEAD OVER NICKEL
01 200
" TIN/LEAD OVER NICKEL
14 10
" GOLD OVER NICKEL
15 10
" GOLD OVER NICKEL
27 30
" GOLD OVER NICKEL
CONTACT
#06 CONTACT (DATA ON PAGE 210)
Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
142
0295-0-15-XX-06-XX-10-0
Solder mount in .063 min.
mounting hole
0295
0397-X-15-XX-06-XX-04-0
Press-fit in .066 mounting hole
0397
90X9-X-19-XX-06-XX-10-0
Press-fit in .075 mounting hole
9019/9039
0292-0-15-XX-06-XX-10-0
Solder mount in .071 min.
mounting hole
0292
0294-0-15-XX-06-XX-10-0
Solder mount in .076 min.
mounting hole
0294
0297-0-15-XX-06-XX-04-0
Press-fit in .067 mounting hole
0297
0398-0-15-XX-06-XX-04-0
Press-fit in .066 mounting hole
0398
PIN RECEPTACLES
for .022” - .032” diameter pins
Basic Part
Number
9019-0
9039-0
Head Dia.
C
.125
.100
Basic Part
Number
0397-0
0397-1
0397-2
Length
V
.353
.333
.413
