MODEL: A041
LCF ENTERPRISES
P/N 900-800-20-30-A3
651 Via Alondra, Building 712
Tel: (805) 388-8454
Camarillo, CA 93012 USA
Fax: (805) 389-5393
E-mail: info@lcfamps.com
Web: www.lcfamps.com

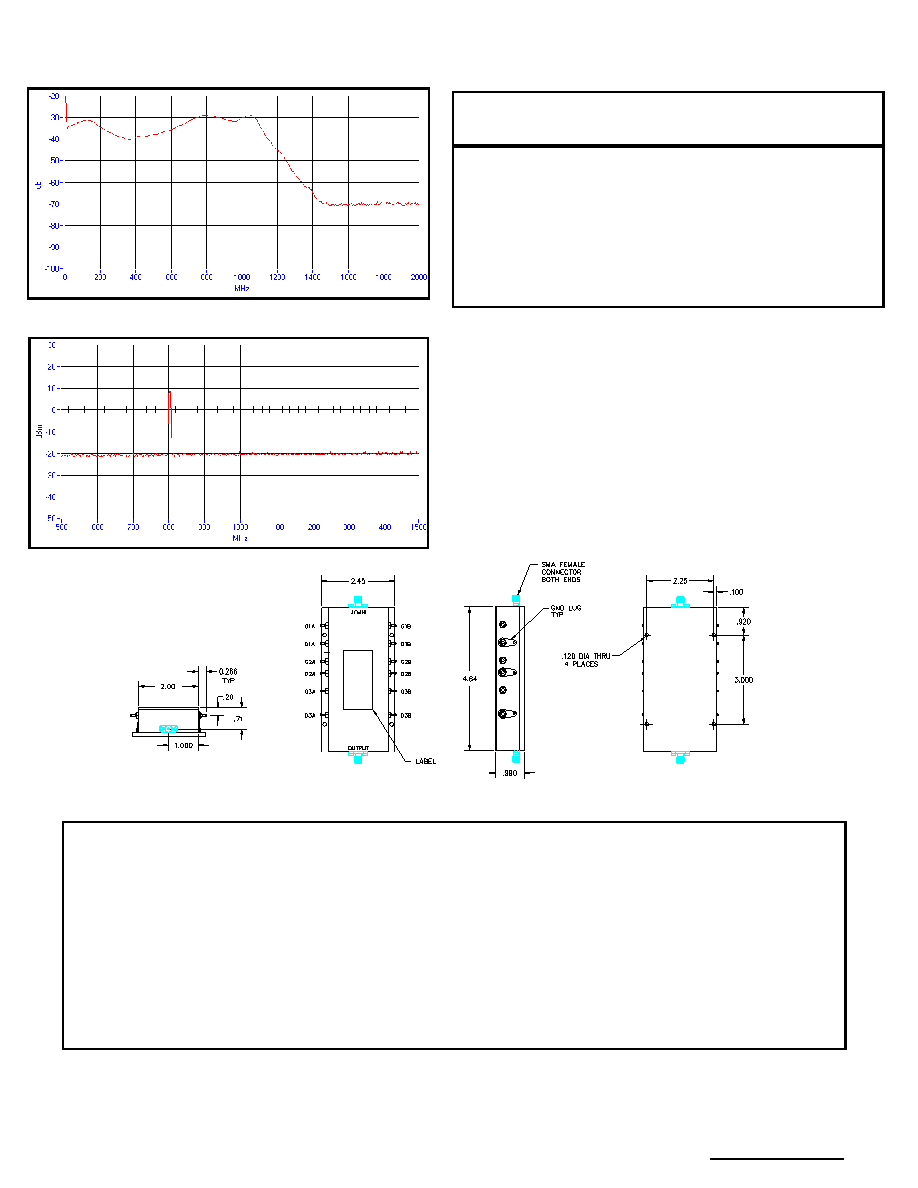

MECHANICAL OUTLINE
OPEN ARCHITECTURE FEATURES
1. Separate power supply feed throughs for each push/pull section permit individual fuse protection, section monitoring, and diagnostics.
Single power supply terminal available.
2. Separate bias inputs permit adjustment of each push/pull section permit optimization of gain vs. distortion vs. efficiency. Bias off
disables amplifier. Single bias terminal, TTL compatible enable/disable, or no bias terminal available.
3. A low loss output matching network provides high efficiency and optimum stability.
4. Separate bias inputs and power supply feed throughs permit either Class AB (standard) or Class A biasing.
AVAILABLE
C Higher powers through multiple module combining
C Test fixture with heat sink, fuse protection, and thermal shutdown
C Inside wiring with only one DC connection
C Complete rackmount systems with integrated power supply
C Detailed Application Notes
C Transmit/Receive subsystems
C TTL compatible enable/disable control
C Narrower band optimization available at no additional cost
Copyright 1998 LCF Enterprises. All rights reserved.
Small Signal Gain ( -70 dBm reference )
Small Signal Gain ( 20W output )
ELECTRICAL PERFORMANCE
HIGH POWER TEST DATA
(Typical)
Freq
(MHz)
Input
Power
(dBm)
Output
Power
(W)
Drain
Voltage
(V)
DC
Current
(A)
DC
Power
(W)
Eff
(%)
Gain
(dB)
800.0
10.0
22.0
27.8
3.16
87.9
25.0
33.4
820.0
9.5
20.7
27.8
3.00
83.3
24.8
33.7
840.0
9.9
20.3
27.8
3.06
85.1
23.8
33.2
860.0
10.9
20.2
27.8
3.16
87.8
23.0
32.2
880.0
11.4
20.1
27.8
3.41
94.8
21.2
31.6
900.0
12.1
20.2
27.8
3.63
100.9
20.0
31.0
