8XC51FX
EXTERNAL CLOCK DRIVE
Symbol
Parameter
Min
Max
Units
1/TCLCL
Oscillator Frequency
8XC51FX
8XC51FX-1
8XC51FX-2
8XC51FX-24
8XC51FX-33
MHz
MHz
MHz
MHz
MHz
MHz
3.5
3.5
0.5
3.5
3.5
12
16
12
24
33
TCHCX
High Time
8XC51FX-24/33
20
ns
ns
0.35 T
OSC
0.65 T
OSC
TCLCX
Low Time
8XC51FX-24/33
20
ns
ns
0.35 T
OSC
0.65 T
OSC
TCLCH
Rise Time
8XC51FX-24
8XC51FX-33
20
10
5
ns
ns
ns
TCHCL
Fall Time
8XC51FX-24
8XC51FX-33
20
10
5
ns
ns
ns

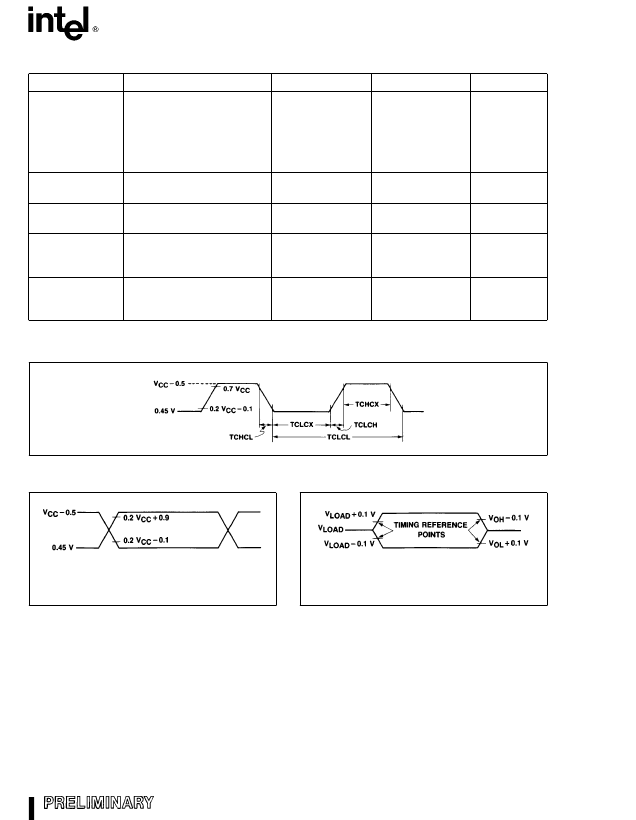

EXTERNAL CLOCK DRIVE WAVEFORM
272322–13
AC TESTING INPUT, OUTPUT WAVEFORMS
272322–14
AC Inputs during testing are driven at V
CC
b
0.5V for a Logic ‘‘1’’
and 0.45V for a Logic ‘‘0’’. Timing measurements are made at V
IH
min for a Logic ‘‘1’’ and V
OL
max for a Logic ‘‘0’’.
FLOAT WAVEFORMS
272322–15
For timing purposes a port pin is no longer floating when a
100 mV change from load voltage occurs, and begins to float
when a 100 mV change from the loaded V
OH
/V
OL
level occurs.
I
OL
/I
OH
e
g
20 mA.
15
