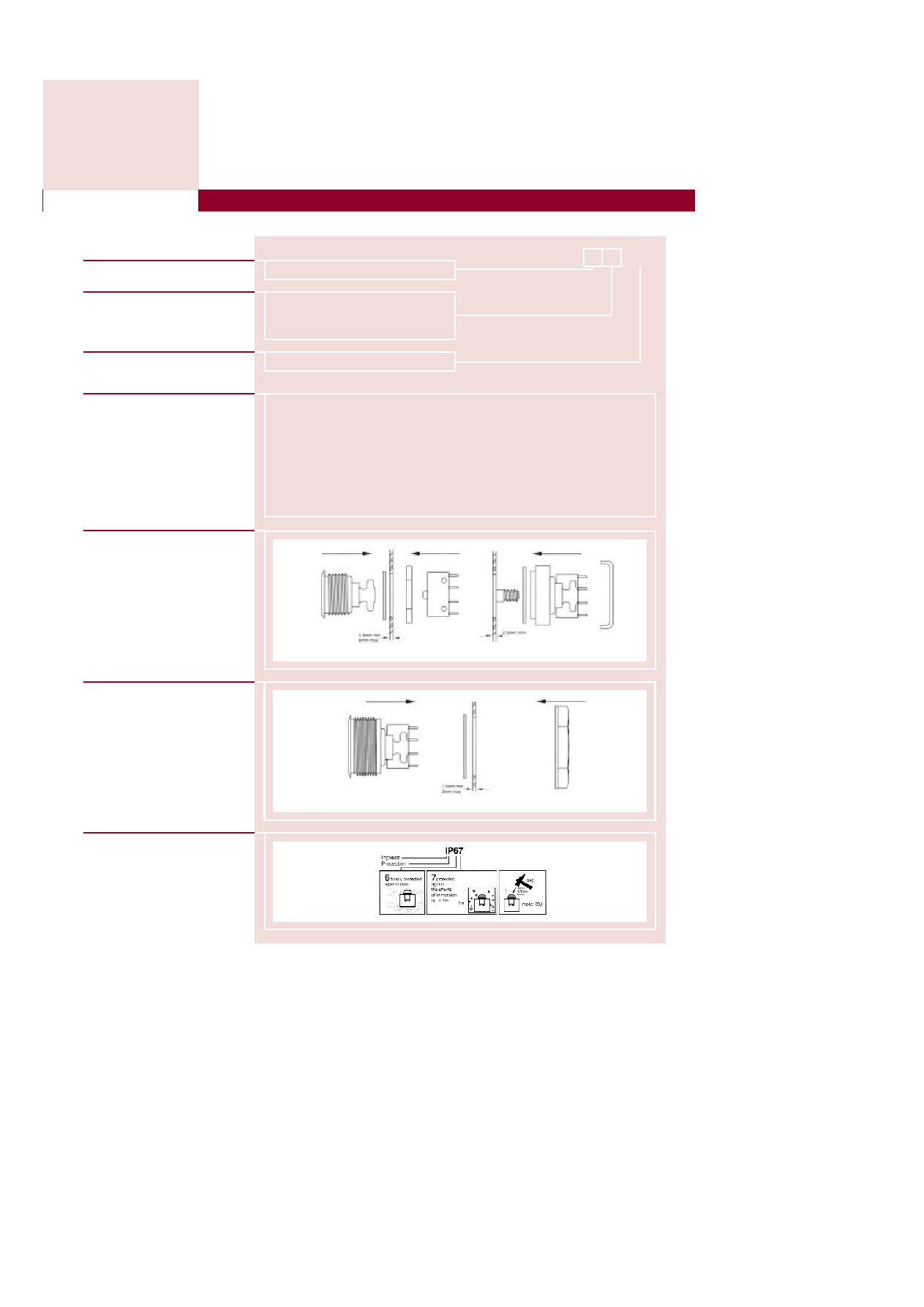

Panel Mounting
& Construction Information
Panel Mounting Diagrams
Ordering Information
The front panel 76-95 mounts from the front into either a 19,25mm or 30,1mm diameter panel
cut out. Panel sealing is achieved by means of a sealing washer which is fitted to the switch
body before it is inserted into the panel hole. The switch is then held in place by a lock-nut
screwed on from the rear and with the 19,25mm diameter version the microswitch can then
be snapped into position at the base of the switch body.
The rear panel 76-95 locates from the rear into a 22,5mm diameter cut out in the front panel.
Panel sealing is once again achieved by means of a sealing washer placed over the shoulder of
the switch before location. The switch is then clamped in place by a bracket (supplied) fitting
over the switch body and two threaded studs pre-welded to the customer’s panel. Two nuts
then fasten the bracket to the panel and switch allowing access to the switches terminals.
Ingress Protection Impact Key
Panel Mounting Diagram
Button Style
Flush
1
Switch Element
Solder terminals, single pole
4044
Mounting diagram for front panel, 15mm button option
Mounting diagram for rear panel, 19mm button option
Mounting diagram for front panel, 25mm button option
76-95
/xxxxx
Mounting
Front panel – 15mm button
0
Rear panel – 19mm button
1
Front panel – 25mm button
2
SERIES 76-95 4 page (11114)
27 07 2000
5:05 pm
Page 4
