74LCX374
OCTAL D-TYPE FLIP FLOP NON INVERTING
WITH 5V TOLERANT INPUTS AND OUTPUTS
PRELIMINARY DATA
January 1997
I
5V TOLERANTINPUTS AND OUTPUTS
I
HIGH SPEED:
f
MAX
=150MHz (MIN.) atV
CC
= 3V
I
POWER-DOWN PROTECTIONONINPUTS
ANDOUTPUTS
I
SYMMETRICALOUTPUT IMPEDANCE:
|I
OH
| = I
OL
=24 mA (MIN)
I
PCI BUSLEVELSGUARANTEEDAT 24mA
I
BALANCED PROPAGATIONDELAYS:
t
PLH
t
PHL
I
OPERATINGVOLTAGERANGE:
V
CC
(OPR)= 2.0Vto 3.6V (1.5VData Retention)
I
PIN AND FUNCTION COMPATIBLEWITH
74SERIES374
I
LATCH-UP PERFORMANCE EXCEEDS500mA
I
ESD PERFORMANCE:
HBM>2000V;MM > 200V
DESCRIPTION
The LCX374 is a low voltage CMOS OCTAL
D-TYPE FLIP FLOP with 3 STATE OUTPUT
NON INVERTING fabricated with sub-micron
silicon gateand double-layermetal wiring C
2
MOS
technology. It is ideal for low power and high
speed applications; it can be interfaced to 5V
signal enviroment for both inputs and outputs.
These 8 bit D-Type flip-flops are controlled by a
clockinput (CK) andan output enableinput (OE).
On the positive transition of the clock, the Q
outputs will be set to the logic state that were
setupat the D inputs.
While the (OE) input is low, the 8 outputs will be
in a normal state (high or low logic level) and
while high level the outputs will be in a high
impedancestate.
The output control does not affect the internal
operationof flip flops; that is, the old data can be
retained or the new data can be entered even
while the outputsare off.
It has same speed performance at 3.3V than 5V,
AC/ACT family, combined with a lower power
consumption. It has better speed performance at
3.3V than 5V LSTTL family combined with the
true CMOS low power consumption.
All
inputs and
outputs
protectioncircuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
are
equipped with

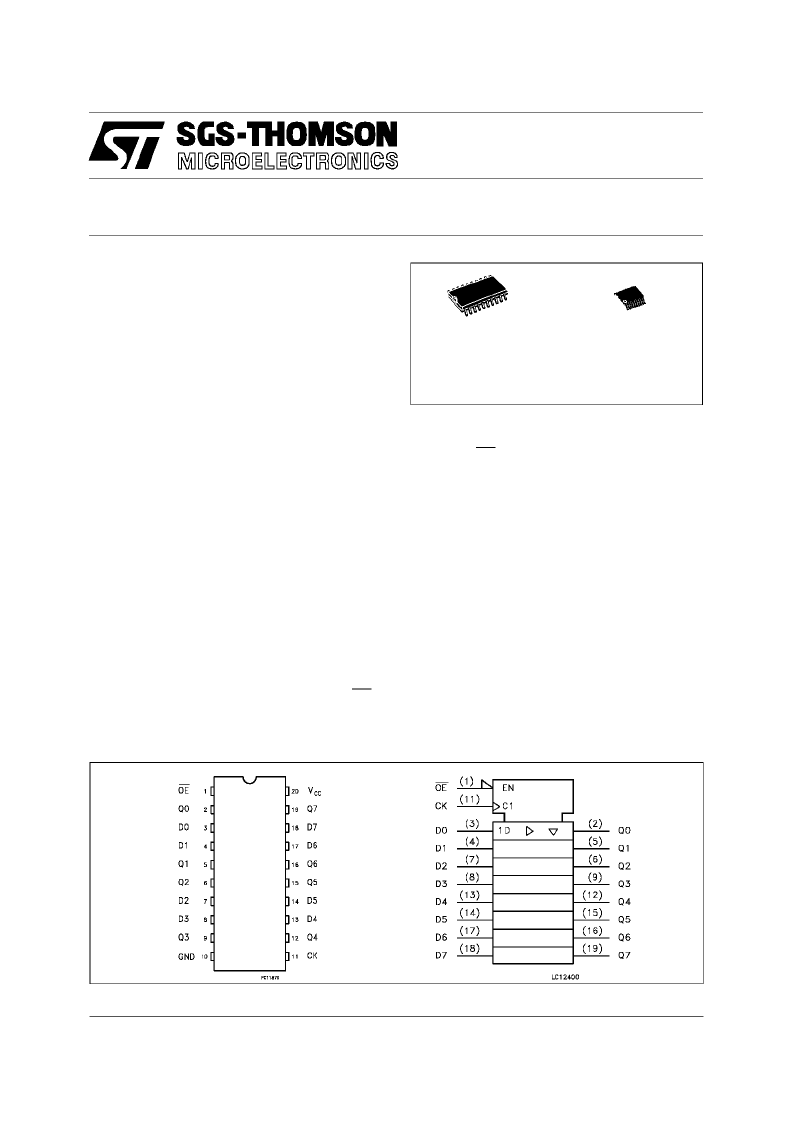

PINCONNECTION AND IEC LOGICSYMBOLS
ORDER CODES :
74LCX374M
74LCX374T
M
(MicroPackage)
T
(TSSOP Package)
1/10
