參數資料
型號： 74AVC16836ADGG,112
廠商： NXP Semiconductors
文件頁數： 4/11頁
文件大?。?/td> 0K
描述： IC RGSTRD DVR 3-ST 20BIT 56TSSOP
產品培訓模塊： Logic Packages
標準包裝： 35
系列： 74AVC
邏輯類型： 緩沖器/線路驅動器，非反相
元件數： 1
每個元件的位元數： 20
輸出電流高，低： 12mA，12mA
電源電壓： 1.2 V ~ 3.6 V
工作溫度： -40°C ~ 85°C
安裝類型： 表面貼裝
封裝/外殼： 56-TFSOP（0.240"，6.10mm 寬）
供應商設備封裝： 56-TSSOP
包裝： 管件
其它名稱： 74AVC16836ADG
74AVC16836ADG-ND
935267933112

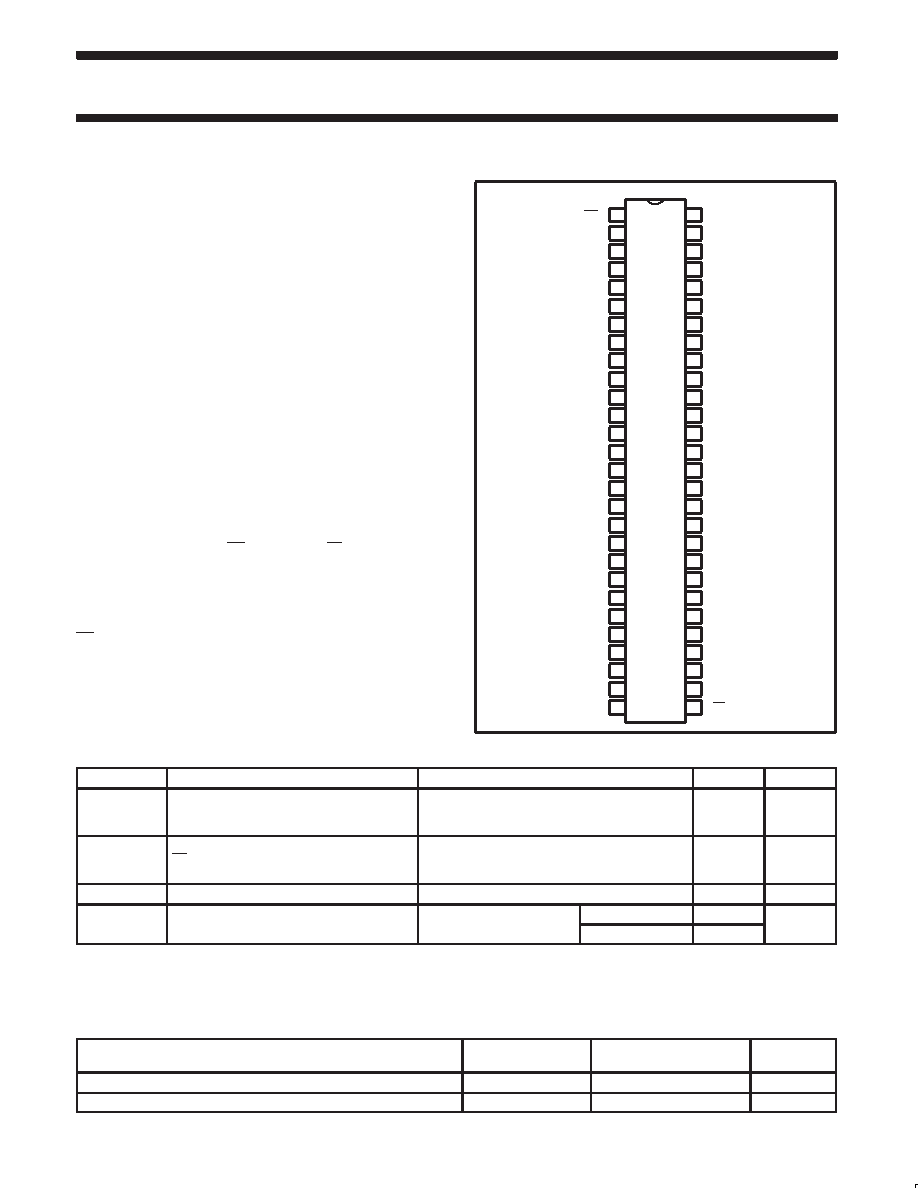

Philips Semiconductors
Product data
74AVC16836A
20-bit registered driver with inverted register enable
and Dynamic Controlled Outputs
(3-State)
2
2002 Aug 02
853-2211 28696
FEATURES
Wide supply voltage range of 1.2 V to 3.6 V
Complies with JEDEC standard no. 8-1A/5/7.
CMOS low power consumption
Input/output tolerant up to 3.6 V
DCO (Dynamic Controlled Output) circuit dynamically changes
output impedance, resulting in noise reduction without speed
degradation
Low inductance multiple V
CC and GND pins for minimum noise
and ground bounce
Power off disables 74AVC16836A outputs, permitting Live
Insertion
Integrated input diodes to minimize input overshoot and
undershoot
Full PC133 solution provided when used with PCK2509S or
PCK2510S and CBT16292
DESCRIPTION
The 74AVC16836A is a 20-bit universal bus driver. Data flow is
controlled by output enable (OE), latch enable (LE) and clock inputs
(CP).
This product is designed to have an extremely fast propagation
delay and a minimum amount of power consumption.
To ensure the high-impedance state during power up or power down,
OE should be tied to VCC through a pullup resistor (Live Insertion).
A Dynamic Controlled Output (DCO) circuitry is implemented to
support termination line drive during transient. See the graphs on
page 8 for typical curves.
PIN CONFIGURATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
OE
Y0
Y1
Y2
Y3
Y4
Y5
Y6
GND
VCC
GND
Y7
Y8
Y9
Y10
Y11
Y12
GND
Y13
Y14
Y15
VCC
Y16
Y17
GND
Y18
Y19
NC
CP
A0
A1
GND
A2
A3
VCC
A4
A5
A6
GND
A7
A8
A9
A10
A11
A12
GND
A13
A14
A15
VCC
A16
A17
GND
A18
A19
LE
SH00159
QUICK REFERENCE DATA
GND = 0 V; Tamb = 25 °C; tr = tf ≤ 2.0 ns; CL = 30 pF.
SYMBOL
PARAMETER
CONDITIONS
TYPICAL
UNIT
tPHL/tPLH
Propagation delay
An to Yn
VCC = 1.8 V
VCC = 2.5 V
VCC = 3.3 V
2.4
1.7
1.5
ns
tPHL/tPLH
Propagation delay
LE to Yn;
CP to Yn
VCC = 1.8 V
VCC = 2.5 V
VCC = 3.3 V
2.7
2.1
1.7
ns
CI
Input capacitance
3.8
pF
C
Power dissipation capacitance per buffer
V = GND to VCC1
Outputs enabled
25
pF
CPD
Power dissipation capacitance per buffer
VI = GND to VCC1
Output disabled
6
pF
NOTE:
1. CPD is used to determine the dynamic power dissipation (PD in W):
PD = CPD × VCC2 × fi + S (CL × VCC2 × fo) where: fi = input frequency in MHz; CL = output load capacitance in pF;
fo = output frequency in MHz; VCC = supply voltage in V; S (CL × VCC2 × fo) = sum of outputs.
ORDERING INFORMATION
PACKAGES
TEMPERATURE
RANGE
ORDER CODE
DRAWING
NUMBER
56-Pin Plastic 0.5 mm pitch TSSOP
–40 to +85
°C
74AVC16836ADGG
SOT364-1
56-Pin Plastic 0.4 mm pitch TVSOP
–40 to +85
°C
74AVC16836ADGV
SOT481-2
