參數資料
| 型號： | 74ALVCH16245GRDR |
| 廠商： | Texas Instruments, Inc. |
| 英文描述： | 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS |
| 中文描述： | 16位總線收發器和三態輸出 |
| 文件頁數： | 3/17頁 |
| 文件大小： | 465K |
| 代理商： | 74ALVCH16245GRDR |

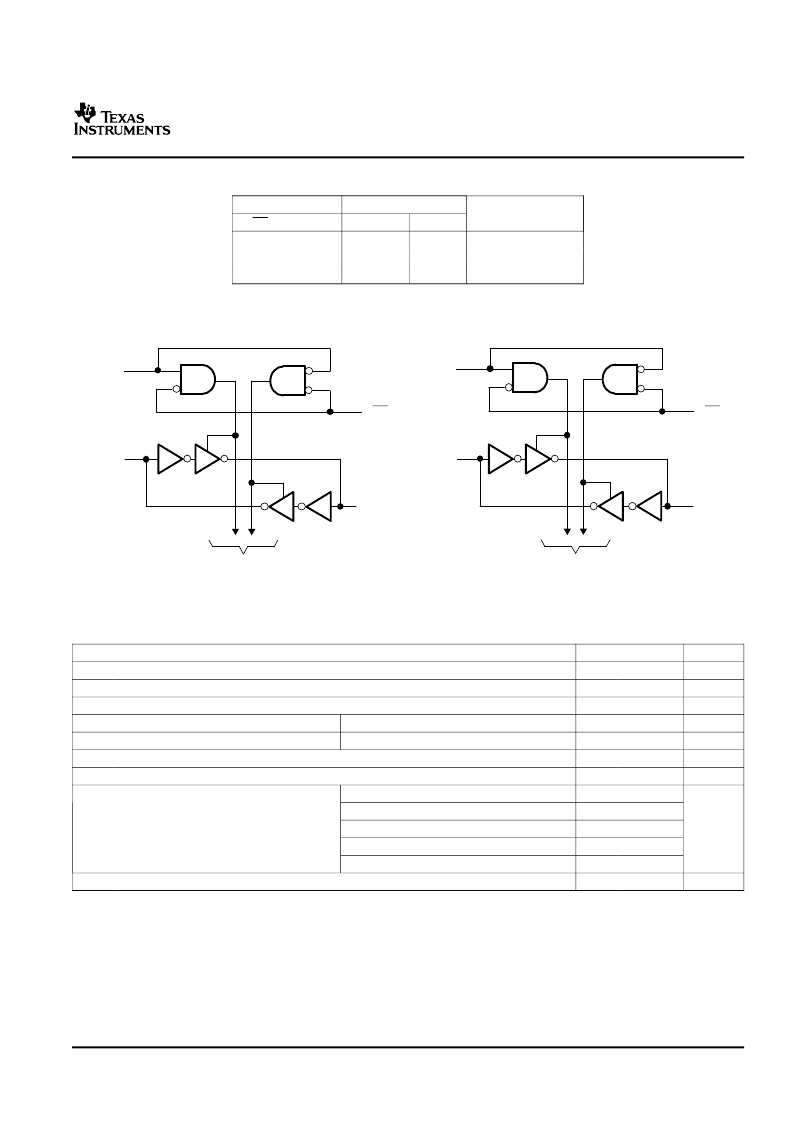

www.ti.com
To Seven Other Channels
1DIR
1A1
1B1
1OE
To Seven Other Channels
2DIR
2A1
2B1
2OE
1
47
24
36
48
2
25
13
Absolute Maximum Ratings
(1)
over operating free-air temperature range (unless otherwise noted)
SN74ALVCH16245
16-BIT BUS TRANSCEIVER
WITH 3-STATE OUTPUTS
SCES015L–JULY 1995–REVISED NOVEMBER 2005
FUNCTION TABLE
(1)
(EACH 8-BIT SECTION)
CONTROL INPUTS
OE
L
L
H
OUTPUT CIRCUITS
A PORT
Enabled
Hi-Z
Hi-Z
OPERATION
DIR
L
H
X
B PORT
Hi-Z
Enabled
Hi-Z
B data to A bus
A data to B bus
Isolation
(1)
Input circuits of the data I/Os always are active.
LOGIC DIAGRAM (POSITIVE LOGIC)
MIN
–0.5
–0.5
–0.5
MAX
4.6
UNIT
V
V
V
mA
mA
mA
mA
V
CC
V
I
V
O
I
IK
I
OK
I
O
Supply voltage range
Input voltage range
(2)(3)
Output voltage range
(2)(3)
Input clamp current
Output clamp current
Continuous output current
Continuous current through each V
CC
or GND
V
CC
+ 0.5
V
CC
+ 0.5
V
I
< 0
V
O
< 0
-50
-50
±
50
±
100
DGG package
DGV package
DL package
GQL/ZQL package
GRD/ZRD package
70
58
63
42
36
θ
JA
Package thermal impedance
(4)
°
C/W
T
stg
Storage temperature range
–65
150
°
C
(1)
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
This value is limited to 4.6 V maximum.
The package thermal impedance is calculated in accordance with JESD 51-7.
(2)
(3)
(4)
3
